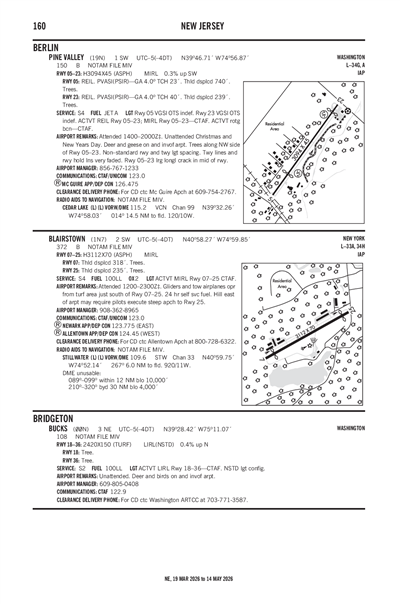

PINE VALLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

19N
Local 19N
PINE VALLEY
PublicPUB

1 miles SW of BERLIN, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 46' 42"N 74° 56' 52"W
Elevation
150' MSL
Pattern Alt
1150' MSL
Mag Variation
12°W
Declination
12°W
Fuel
JET A
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
10/1/26-10/29/26
KVAY (11nm) VFR
11:54 AM EDT
Clear
10sm
51°F
36°F
30.20"Hg
010° 10kts
AO2 SLP226 T01060022 $
METAR KVAY 171554Z AUTO 01010KT 10SM CLR 11/02 A3020 RMK AO2 SLP226 T01060022 $
+ Add Your Business

19N FBOs

Promote Listing
Pine Valley Airport
UNICOM: 123.0
Phone: (856) 767-1233
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.95
Fuel Notes
Prices include tax
Ramp fees are waived for fuel-only visits.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT ROTG BCN - CTAF.; ACTVT REIL RWY 05/23; MIRL RWY 05/23 - CTAF.
UNICOM 123.0

Approach

MC GUIRE APPROACH 126.475

Departure

MC GUIRE DEPARTURE 126.475

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPHL (14nm)
Sat, 10/17 10:31 AM EDT
Sat, 10/17 11:00 AM EDT - Sun, 10/18 2:00 PM EDT
VFR
11:00 AM EDT - 1:00 PM EDT
Broken 25,000'
6sm
360° 18kts
Gusts 28kts
VFR
1:00 PM EDT - 5:00 PM EDT
Scattered 25,000'
6sm
360° 20kts
Gusts 30kts
VFR
5:00 PM EDT - 9:00 PM EDT
Sky Clear
6sm
360° 12kts
Gusts 18kts
VFR
9:00 PM EDT - 1:00 AM EDT
Sky Clear
6sm
360° 10kts
VFR
1:00 AM EDT - 9:00 AM EDT
Sky Clear
6sm
010° 8kts
VFR
9:00 AM EDT - 2:00 PM EDT
Sky Clear
6sm
030° 10kts
TAF KPHL 171431Z 1715/1818 36018G28KT P6SM BKN250
   FM171700 36020G30KT P6SM SCT250
   FM172100 36012G18KT P6SM SKC
   FM180100 36010KT P6SM SKC
   FM180500 01008KT P6SM SKC
   FM181300 03010KT P6SM SKC
19N
EffectiveExpiresCategoryNOTAM
Domestic
10/16/26
1326Z
1/20/27
2200Z
!MIV 10/115 19N AD AP ALL LGT U/S 2610161326-2701202200
10/15/26
2053Z
11/12/26
1700Z
!MIV 10/109 19N OBST TOWER LGT (ASR 1054665) 394439.10N0745441.90W (2.6NM SE 19N) 407.2FT (222.1FT AGL) U/S 2610152053-2611121700
9/26/26
0338Z
12/24/26
2359Z
!MIV 09/430 19N OBST TOWER LGT (ASR UNKNOWN) 394938.80N0750004.40W (3.4NM NW 19N) 238FT (159FT AGL) U/S 2609260338-2612242359
7/15/26
1516Z
Runway!MIV 07/177 19N RWY 05 RWY END ID LGT U/S 2607151516-2701152111EST
No
0900-1500
UNATTND CHRISTMAS AND NEW YEARS DAY.
ALBION AIRPORT, INC.
817 WATSONTOWN RD.
BERLIN, NJ 08009
Phone: 856-767-1233
KARL KLEINBERG
817 WATSONTOWN RD
BERLIN, NJ 08009
Phone: 856-767-1233
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
ACTVT REIL RWY 05/23; MIRL RWY 05/23 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
Major
Major
None
None
Aircraft Sales

Runway 05/23

3094 ft. x 45 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 38°218°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 46' 30"N 39° 46' 54"N
Longitude 74° 57' 04"W 74° 56' 40"W
Elevation 149' 141'
Threshold Crossing Height 23 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator PSIR PSIR
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1TREES ALONG NW SIDE OF RWY 05/23.
A110-2DEER AND GEESE ON AND INVOF ARPT.
A110-3NON-STANDARD RWY AND TWY LGT SPACING.
A110-4FOR CD CTC MC GUIRE APCH AT 609-754-2767.
A110-5TWY LINES & RWY HOLD LNS VERY FADED.
A17-M1UNATTND CHRISTMAS AND NEW YEARS DAY.
A33-05/23_CONDLRG LONGL CRACK IN MID OF RWY.
A43-05OTS INDEF.
A43-23OTS INDEF.
A57-05+74 FT TREE, DIST 16 FT, 82 FT L, 0:1 BASED ON DSPLCD THLD.
A57-23+47 FT TREE, DIST 6 FT, 140 FT R, 0:1 BASED ON DSPLCD THLD.
A58-05+28 FT POLE 7 FT FROM RWY END 74 FT L.
A58-23+44 FT TREE 37 FT FROM RWY END 206 FT R.
A81-APTACTVT REIL RWY 05/23; MIRL RWY 05/23 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
PINE VALLEY (IATA: 19N) is a public airport located in BERLIN, NJ, US.
