1A4
Local 1A4
LOGAN FLD
PublicPUB

1 miles SW of SAMSON, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 06' 13"N 86° 03' 45"W
Elevation
200' MSL
Pattern Alt
1200' MSL
Mag Variation
4°W
Fuel
None Listed
FSS
ANNISTON (ANB)
Sectional
NEW ORLEANS
ARTCC
JACKSONVILLE (ZJX)
Data Effective
9/3/26-10/1/26
K0J4 (13nm) VFR
6:58 AM CDT
Clear
9sm
60°F
59°F
29.95"Hg
Calm
AO2 SLP139 T01560150 10183 20156 53005
METAR K0J4 271158Z AUTO 00000KT 9SM CLR 16/15 A2995 RMK AO2 SLP139 T01560150 10183 20156 53005
+ Add Your Business

1A4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 05/23 - CTAF.

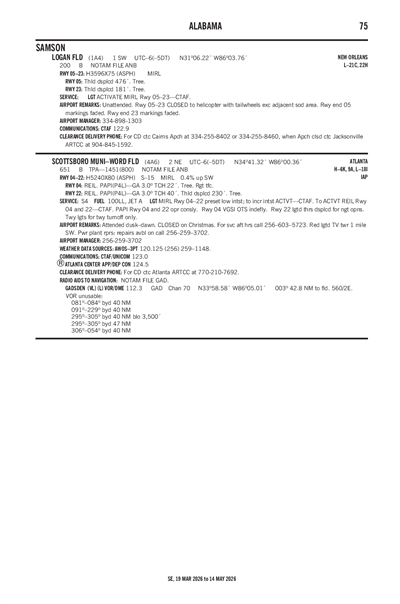

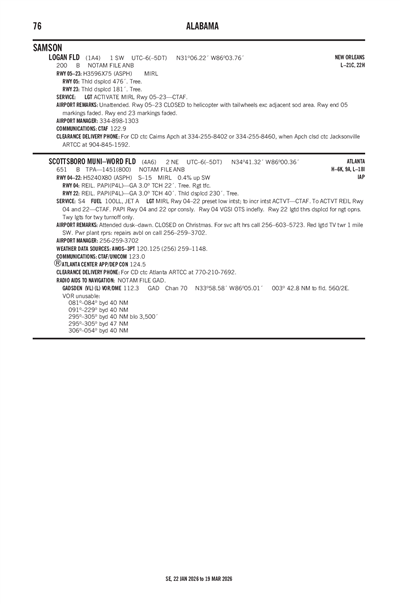

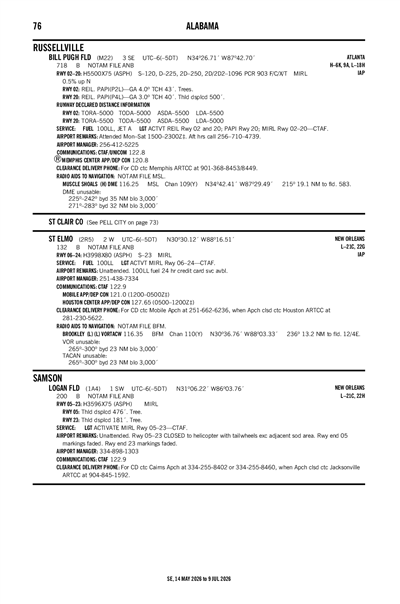

FAA A/FD Pages

Terminal Area Forecast

KDHN (34nm)
Sun, 9/27 6:20 AM CDT
Sun, 9/27 7:00 AM CDT - Mon, 9/28 7:00 AM CDT
VFR
7:00 AM CDT - 11:00 AM CDT
Few 25,000'
6sm
Calm
VFR
11:00 AM CDT - 9:00 PM CDT
Few 25,000'
6sm
320° 8kts
VFR
9:00 PM CDT - 7:00 AM CDT
Few 25,000'
6sm
350° 3kts
TAF KDHN 271120Z 2712/2812 00000KT P6SM FEW250
   FM271600 32008KT P6SM FEW250
   FM280200 35003KT P6SM FEW250
1A4
EffectiveExpiresCategoryNOTAM
Domestic
9/18/26
1641Z
12/17/26
1741Z
!ANB 09/493 1A4 OBST TOWER LGT (ASR 1266103) 311234.40N0860959.50W (8.2NM NW 1A4) 560.0FT (306.1FT AGL) U/S 2609181641-2612171741
9/16/26
1638Z
12/15/26
1738Z
!ANB 09/448 1A4 OBST TOWER LGT (ASR 1252872) 310715.50N0860227.40W (1.5NM NE 1A4) 425.9FT (216.9FT AGL) U/S 2609161638-2612151738
8/31/26
2218Z
10/15/26
2216Z
!ANB 08/906 1A4 OBST TOWER LGT (ASN 2025-ASO-16113-OE) 305552N0860511W (10.4NM S 1A4) 515FT (330FT AGL) U/S 2608312218-2610152216
8/23/26
0114Z
10/7/26
0113Z
!ANB 08/636 1A4 OBST TOWER LGT (ASR 1307916) 311359.15N0860840.13W (8.7NM NNW 1A4) 498FT (260FT AGL) U/S 2608230114-2610070113
8/18/26
1959Z
12/16/26
1959Z
!ANB 08/460 1A4 OBST TOWER LGT (ASR 1294618) 310220.30N0860722.30W (5.0NM SW 1A4) 510.2FT (310.0FT AGL) U/S 2608181959-2612161959
No
UNATNDD
CITY OF SAMSON
104 E MAIN STREET
SAMSON, AL 36477
Phone: 334-898-7541
AIR HAMMER/MIKE PASCOE
395 S. MAGNOLIA ST
SAMSON, AL 36477
Phone: 334-898-1303
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT MIRL RY 05/23 - CTAF.
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 05/23

3596 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 52°232°
Traffic Pattern
Markings BSC BSC
Markings Condition POOR POOR
Latitude 31° 06' 02"N 31° 06' 24"N
Longitude 86° 04' 02"W 86° 03' 29"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 5/23 CLSD TO HEL WITH TAILWHEELS EXC ADJ SOD AREA.
A110-2FOR CD CTC CAIRNS APCH AT 334-255-8402 OR 334-255-8460, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A16AFTER HOURS 334-898-2700 OR 334-449-1580.
A42-05_CONDMARKINGS FADED
A42-23_CONDMARKINGS FADED
A57-0511:1 SLOPE TO DSPLCD THR.
A57-2311:1 SLOPE TO DSPLCD THR.
A81-APTACTVT MIRL RY 05/23 - CTAF.
LOGAN FLD (IATA: 1A4) is a public airport located in SAMSON, AL, US.
