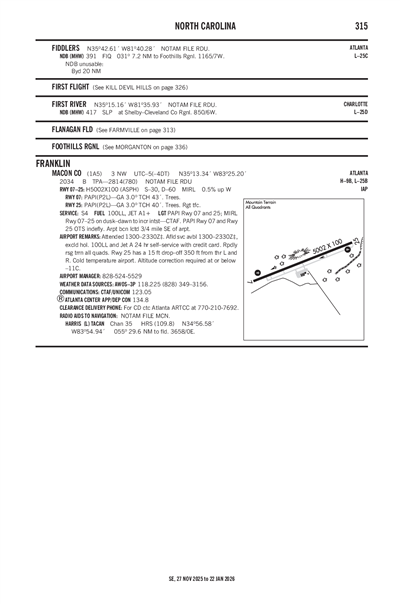

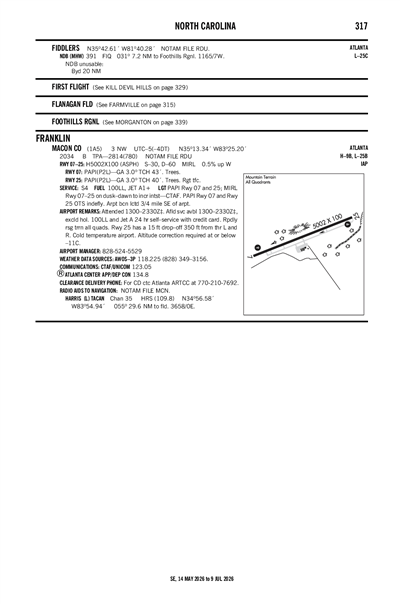

MACON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1A5
Local 1A5
MACON COUNTY
PublicPUB

3 miles NW of FRANKLIN, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 13' 20"N 83° 25' 12"W
Elevation
2034' MSL
Pattern Alt
2814' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
10/1/26-10/29/26
K1A5 VFR
12:55 PM EDT
Broken 4,900'
Scattered 4,300'
10sm
58°F
39°F
30.31"Hg
010° 8kts
Gusts 15kts
AO2 T01430037
METAR K1A5 171655Z AUTO 01008G15KT 10SM SCT043 BKN049 14/04 A3031 RMK AO2 T01430037
+ Add Your Business

1A5 FBOs

Promote Listing
Macon Air
UNICOM: 123.05
Phone: (828) 524-5529
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.95 6.75
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.225
(828) 349-3156

Common

CTAF 123.05
PAPI RWY 07 & 25; MIRL RWY 07/25 ON DUSK - DAWN. TO INCR INTST - CTAF.
UNICOM 123.05

Center

ATLANTA CENTER 134.8
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC (ZTL) ON FREQS 134.8/379.95 (MOUNT OGLETHORPE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAVL (45nm)
Sat, 10/17 1:20 PM EDT
Sat, 10/17 2:00 PM EDT - Sun, 10/18 2:00 PM EDT
VFR
2:00 PM EDT - 8:00 PM EDT
Scattered 4,000'
6sm
330° 17kts
Gusts 29kts
VFR
8:00 PM EDT - 12:00 AM EDT
Sky Clear
6sm
340° 11kts
Gusts 19kts
VFR
12:00 AM EDT - 12:00 PM EDT
Sky Clear
6sm
350° 5kts
VFR
12:00 PM EDT - 2:00 PM EDT
Few 25,000'
6sm
360° 10kts
Gusts 18kts
TAF KAVL 171720Z 1718/1818 33017G29KT P6SM SCT040
   FM180000 34011G19KT P6SM SKC
   FM180400 35005KT P6SM SKC
   FM181600 36010G18KT P6SM FEW250
1A5
EffectiveExpiresCategoryNOTAM
Domestic
10/17/26
1139Z
11/1/26
1039Z
!RDU 10/304 1A5 OBST TOWER LGT (ASR 1249096) 351947.20N0833423.10W (9.8NM NW 1A5) 2618.1FT (255.9FT AGL) U/S 2610171139-2611011039
10/10/26
0535Z
11/24/26
0535Z
!RDU 10/158 1A5 OBST TOWER LGT (ASR 1297005) 351203.30N0832350.70W (1.7NM SE 1A5) 2455FT (143FT AGL) U/S 2610100535-2611240535
8/11/26
1838Z
8/31/27
2359Z
Runway!RDU 08/138 1A5 RWY 25 PAPI U/S 2608111838-2708312359
8/11/26
1838Z
8/31/27
2359Z
Runway!RDU 08/137 1A5 RWY 07 PAPI U/S 2608111838-2708312359
FDC
5/28/26
1320Z
!FDC 6/3647 1A5 IAP MACON COUNTY, FRANKLIN, NC.
RNAV (GPS)-A, ORIG-A...
CHANGE PLANVIEW NOTE: NOPT FOR ARRIVAL AT DAYEL ON V-54 TO READ NOPT FOR ARRIVAL AT DAYEL ON T-398 WESTBOUND.
2605281320-2805281317EST
No
0800-1830
AFLD SVC AVBL 0800-1830 EXCLD HOL.
MACON COUNTY AIRPORT AUTHORITY
1241 AIRPORT RD
FRANKLIN, NC 28734
Phone: 828-524-7121
SABRINA CRONE
1241 AIRPORT ROAD
FRANKLIN, NC 28734
Phone: 828-524-5529
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
PAPI RWY 07 & 25; MIRL RWY 07/25 ON DUSK - DAWN. TO INCR INTST - CTAF.
N/A
ARPT BCN LCTD 3/4 MI SE OF ARPT.
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 07/25

5002 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 07 Runway 25
True Heading 69°249°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 13' 11"N 35° 13' 29"N
Longitude 83° 25' 40"W 83° 24' 44"W
Elevation 2,034' 2,010'
Threshold Crossing Height 43 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-11COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -11C.
A110-2RPDLY RSG TRRN ALL QUADS.
A110-4RWY 25 HAS A 15 FT DROP-OFF 350 FT FM THR L & R.
A17-M1AFLD SVC AVBL 0800-1830 EXCLD HOL.
A43-07PAPI RWY 7 OTS INDEFLY.
A43-25PAPI RWY 25 OTS INDEFLY.
A58-25RWY 25 8 FT FENCE 159 FT FM END OF THR OFFSET 134 FT RITE OF CNTRLN AND 11 TO 18 FT BRUSH 0 TO 200 FT FM THR OFFSET 84 FT L OF CNTRLN.
A70-100LL100LL AND JET A 24 HR SELF-SVC WITH CREDIT CARD.
A80ARPT BCN LCTD 3/4 MI SE OF ARPT.
A81-APTPAPI RWY 07 & 25; MIRL RWY 07/25 ON DUSK - DAWN. TO INCR INTST - CTAF.
MACON COUNTY (IATA: 1A5) is a public airport located in FRANKLIN, NC, US.
