1B2
Local 1B2
KATAMA AIRPARK
PublicPUB

2 miles S of EDGARTOWN, MA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 21' 30"N 70° 31' 28"W
Elevation
18' MSL
Pattern Alt
1018' MSL
Mag Variation
14°W
Declination
16°W
Fuel
100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KMVY (5nm) VFR
8:53 AM EDT
Broken 12,000'
Scattered 10,000'
10sm
35°F
21°F
30.51"Hg
340° 6kts
AO2 SLP331 T00171061
METAR KMVY 151253Z 34006KT 10SM SCT100 BKN120 02/M06 A3051 RMK AO2 SLP331 T00171061
+ Add Your Business

1B2 FBOs

Promote Listing
Katama Airfield
UNICOM: 122.8
Phone: (508) 627-9018
Other: (508) 627-7677
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

Approach

BOSTON APPROACH 119.7

Departure

BOSTON DEPARTURE 119.7

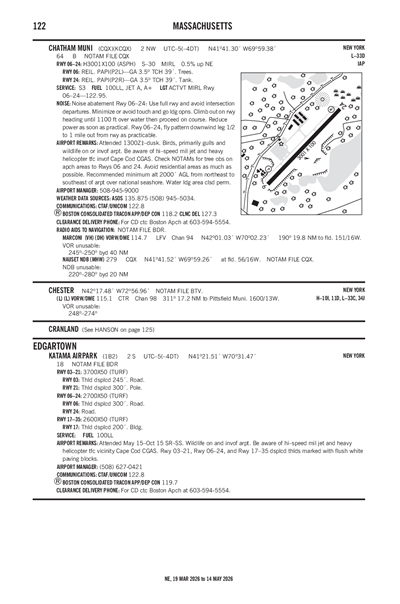

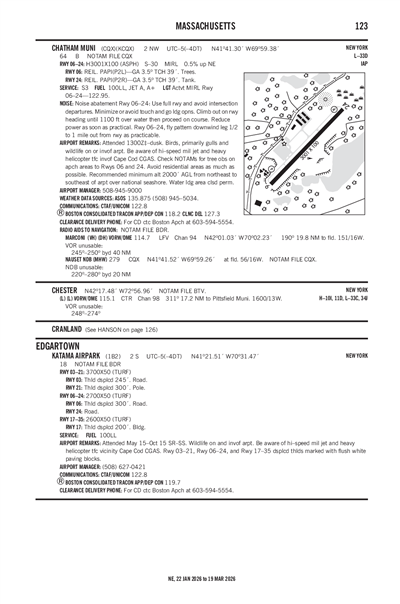

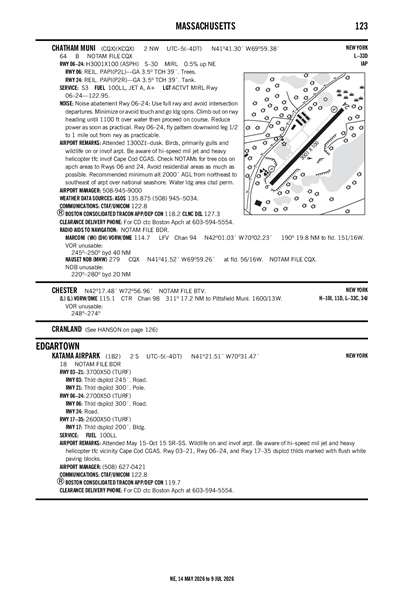

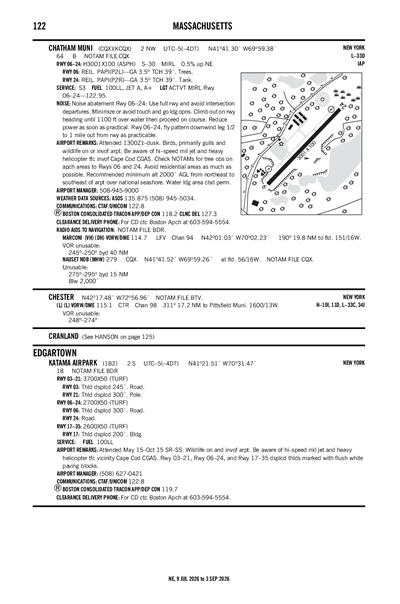

FAA A/FD Pages

Terminal Area Forecast

KFMH (18nm)
Sun, 3/15 7:20 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
8:00 AM EDT - 1:00 PM EDT
Few 21,000'
6sm
340° 5kts
VFR
1:00 PM EDT - 6:00 AM EDT
Broken 22,000'
6sm
120° 10kts
MVFR
6:00 AM EDT - 8:00 AM EDT
Rain
Broken 1,000'
3sm
140° 16kts
Gusts 24kts
TAF KFMH 151120Z 1512/1612 34005KT P6SM FEW210
   FM151700 12010KT P6SM BKN220
   FM161000 14016G24KT 3SM RA BKN010 AMD NOT SKED
1B2
No NOTAM Available
No
MAY 15 - OCT 15 SR-SS
TOWN OF EDGARTOWN
PO BOX 5158
EDGARTOWN, MA 02539
Phone: (508) 627-6180
BRIAN MCCABE
KATAMA AIRPARK 12 MATTAKESETT WAY
EDGARTOWN, MA 02539
Phone: (508) 627-0421
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDR
--
--
N/A
Yes
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 03/21

3700 ft. x 50 ft.
TURF
Good
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

2700 ft. x 50 ft.
TURF
Good
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2600 ft. x 50 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BE AWARE OF HIGH-SPD MIL JET & HVY HEL TFC VCNTY CAPE COD CGAS.
A110-2WILDLIFE ON AND INVOF ARPT.
A110-3FOR CD CTC BOSTON APCH AT 603-594-5554.
A13AIRFIELD@EDGARTOWN-MA.US
A31-03/21RWY REMEASURED W/ ENGINEERING WHEEL
A42-03_MARKDSPLCD THR MKD WITH FLUSH WHITE PAVING BLOCKS.
A42-06_MARKDSPLCD THR MKD WITH FLUSH WHITE PAVING BLOCKS.
A42-17_MARKDSPLCD THR MKD WITH FLUSH WHITE PAVING BLOCKS.
A42-21_MARKDSPLCD THR MKD WITH FLUSH WHITE PAVING BLOCKS.
A57-03APCH RATIO 16:1 TO DSPLCD THR.
A57-06APCH RATIO 30:1 TO DSPLCD THR.
A57-17APCH RATIO 35:1 TO DSPLCD THR.
A57-21RWY 21 APCH RATIO 34:1 TO DSPLCD THR.
E111EXISTED PRIOR TO 1959.
KATAMA AIRPARK (IATA: 1B2) is a public airport located in EDGARTOWN, MA, US.
