iFlightPlanner



...

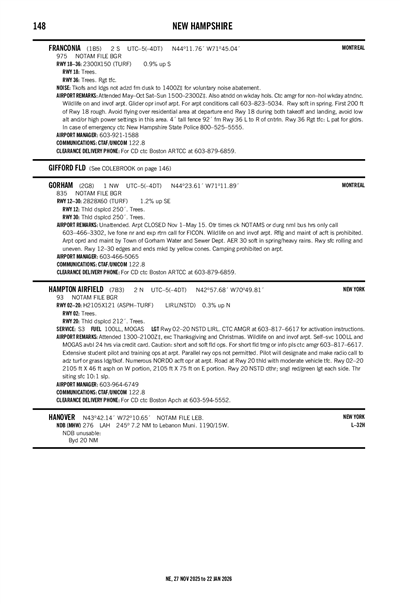

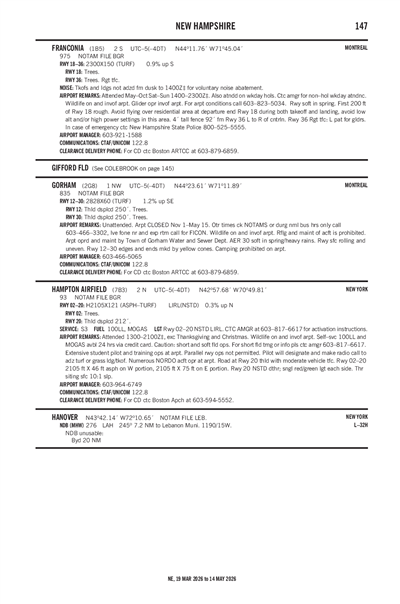

FRANCONIA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1B5
Local 1B5
FRANCONIA
PublicPUB

2 miles S of FRANCONIA, NH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 11' 45"N 71° 45' 03"W
Elevation
975' MSL
Pattern Alt
1975' MSL
Mag Variation
14°W
Declination
16°W
Fuel
None Listed
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
6/11/26-7/9/26
KHIE (13nm) VFR
8:52 PM EDT
Few 6,500'
10sm
64°F
60°F
30.07"Hg
Calm
AO2 SLP181 T01780156
METAR KHIE 260052Z AUTO 00000KT 10SM FEW065 18/16 A3007 RMK AO2 SLP181 T01780156
+ Add Your Business

1B5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KHIE (13nm)
Thu, 6/25 7:21 PM EDT
Thu, 6/25 8:00 PM EDT - Fri, 6/26 8:00 PM EDT
VFR
8:00 PM EDT - 12:00 AM EDT
Overcast 11,000'
Few 6,000'
6sm
VRB° 4kts
VFR
Temporary 8:00 PM EDT - 12:00 AM EDT
Light Showers and Rain and Mist
Overcast 4,000'
6sm
Calm
MVFR
12:00 AM EDT - 8:00 AM EDT
Light Showers and Rain and Mist
Overcast 4,500'
5sm
Calm
IFR
8:00 AM EDT - 10:00 AM EDT
Light Showers and Rain and Mist
Broken 800'
Scattered 600'
5sm
VRB° 3kts
MVFR
10:00 AM EDT - 2:00 PM EDT
Broken 1,100'
Scattered 900'
6sm
VRB° 3kts
MVFR
2:00 PM EDT - 6:00 PM EDT
Broken 2,900'
6sm
VRB° 3kts
MVFR
2:00 PM EDT - 6:00 PM EDT
Light Thunderstorm and Rain
Overcast 1,500'
4sm
Calm
VFR
6:00 PM EDT - 8:00 PM EDT
Broken 3,500'
6sm
Calm
TAF KHIE 252321Z 2600/2624 VRB04KT P6SM FEW060 OVC110
   TEMPO 2600/2604 6SM -SHRA BR OVC040
   FM260400 00000KT 5SM -SHRA BR OVC045
   FM261200 VRB03KT 5SM -SHRA BR SCT006 BKN008
   FM261400 VRB03KT P6SM SCT009 BKN011
   FM261800 VRB03KT P6SM BKN029
   PROB30 2618/2622 4SM -TSRA OVC015CB
   FM262200 00000KT P6SM BKN035
1B5
EffectiveExpiresCategoryNOTAM
Domestic
6/23/26
1941Z
7/31/26
2359Z
Runway!BGR 06/118 1B5 RWY 18 APCH END IRREGULAR SFC STANDING WATER 2606231941-2607312359
No
MAY-OCT SAT-SUN 0900-1800
ALSO ATNDD ON WKDAY HOLS. CTC AMGR FOR NON-HOL WKDAY ATNDNC.
FRANCONIA SOARING FOUNDATION, INC
P.O. BOX 30
FRANCONIA, NH 03580
Phone: 603-823-5530
JAMES R DAVID
P.O. BOX 898
FRANCONIA, NH 03580
Phone: 603-921-1588
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 18/36

2300 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 172°352°
Traffic Pattern Left Right
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 44° 11' 57"N 44° 11' 34"N
Longitude 71° 45' 05"W 71° 45' 00"W
Elevation 955' 975'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY SOFT IN SPRING.
A110-10GLDR OPNS INVOF ARPT.
A110-11FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A110-124 FT TALL FENCE 92 FT FM RWY 36 L TO R OF CNTRLN.
A110-13RENTAL BICYCLES AVBL AT FRANCONIA INN.
A110-14TKOFS & LDGS NOT ADZD FM DUSK TO 0900 FOR VOLUNTARY NOISE BATEMENT.
A110-2FOR ARPT CONDS CALL 603-823-5034.
A110-4AVOID FLYING OVR RESL AREA AT DER 18 DURG BOTH TKOF AND LDG; AVOID LOW ALT AND/OR HIGH PWR SETTINGS IN THIS AREA.
A110-6WILDLIFE ON & INVOF ARPT.
A110-7IN CASE OF EMERG CTC NEW HAMPSHIRE STATE POLICE 800-525-5555.
A13FRANCONIASOARING@GMAIL.COM.
A17-D1ALSO ATNDD ON WKDAY HOLS. CTC AMGR FOR NON-HOL WKDAY ATNDNC.
A23-36L PAT FOR GLDRS.
A30-18/36FST 200 FT OF RWY 18 ROUGH.
E111VFR OPNS ONLY.
FRANCONIA (IATA: 1B5) is a public airport located in FRANCONIA, NH, US.
