1B8
Local 1B8
CHAPIN FLD
PublicPUB

2 miles N of CAMBRIDGE, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 03' 10"N 73° 21' 47"W
Elevation
510' MSL
Pattern Alt
1510' MSL
Mag Variation
13°W
Declination
14°W
Fuel
None Listed
FSS
BURLINGTON (BTV)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
6/11/26-7/9/26
KDDH (11nm) VFR
4:54 PM EDT
Broken 10,000'
10sm
73°F
54°F
30.07"Hg
190° 3kts
AO2 SLP179 T02280122 58006 $
METAR KDDH 252054Z AUTO 19003KT 10SM BKN100 23/12 A3007 RMK AO2 SLP179 T02280122 58006 $
+ Add Your Business

1B8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

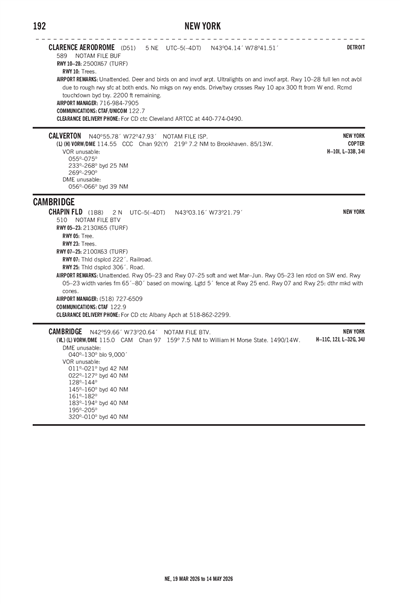

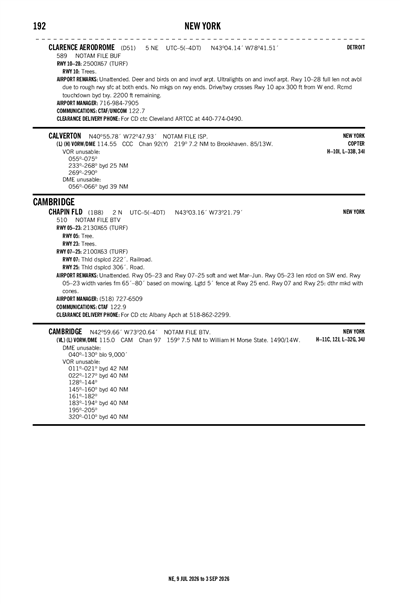

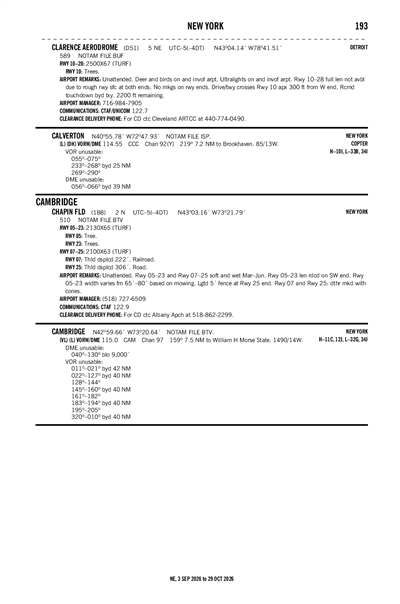

FAA A/FD Pages

Terminal Area Forecast

KGFL (20nm)
Thu, 6/25 1:37 PM EDT
Thu, 6/25 2:00 PM EDT - Fri, 6/26 2:00 PM EDT
VFR
2:00 PM EDT - 7:00 PM EDT
Broken 15,000'
Few 4,500'
6sm
170° 7kts
VFR
7:00 PM EDT - 11:00 PM EDT
Light Showers and Rain and Mist
Overcast 6,000'
Scattered 2,000'
6sm
VRB° 5kts
MVFR
11:00 PM EDT - 2:00 AM EDT
Light Rain
Overcast 1,500'
Scattered 700'
3sm
VRB° 3kts
IFR
11:00 PM EDT - 2:00 AM EDT
Rain and Mist
Overcast 700'
3sm
Calm
IFR
2:00 AM EDT - 7:00 AM EDT
Light Showers and Rain and Mist
Overcast 500'
2sm
VRB° 3kts
MVFR
7:00 AM EDT - 11:00 AM EDT
Mist
Overcast 1,000'
6sm
190° 5kts
MVFR
11:00 AM EDT - 2:00 PM EDT
Broken 3,000'
Scattered 1,500'
6sm
200° 6kts
TAF KGFL 251737Z 2518/2618 17007KT P6SM FEW045 BKN150
   FM252300 VRB05KT 6SM -SHRA BR SCT020 OVC060
   FM260300 VRB03KT 3SM -RA SCT007 OVC015
   PROB30 2603/2606 3SM RA BR OVC007
   FM260600 VRB03KT 2SM -SHRA BR OVC005
   FM261100 19005KT 6SM BR OVC010
   FM261500 20006KT P6SM SCT015 BKN030
1B8
EffectiveExpiresCategoryNOTAM
Domestic
6/18/26
1919Z
9/16/26
1919Z
!BTV 06/188 1B8 OBST TOWER LGT (ASR 1009599) 430828.80N0731844.50W (5.8NM NNE 1B8) 1268.0FT (264.1FT AGL) U/S 2606181919-2609161919
No
UNATNDD
DEAN CHAPIN
PO BOX 144
CAMBRIDGE, NY 12816
Phone: (518) 677-8866
GEORGE GRACEY
6 MYRTLE AVE.
CAMBRIDGE, NY 12816
Phone: (518) 727-6509
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
BTV
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

2130 ft. x 65 ft.
TURF
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 32°212°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 03' 01"N 43° 03' 19"N
Longitude 73° 21' 55"W 73° 21' 40"W
Elevation 508' 510'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07/25

2100 ft. x 63 ft.
TURF
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading Not ListedNot Listed
Traffic Pattern
Markings NSTD NSTD
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No
A110-1LGTD 5 FT FENCE AT RWY 25 END.
A110-3FOR CD CTC ALBANY APCH AT 518-862-2299.
A31-05/23LEN RDCD ON SW END.
A32-05/23WID VARIES FM 65-80 FT BASED ON MOWING.
A33-05/23_SURF& RWY 07/25 SOFT & WET MAR-JUN.
A42-07_MARKRWY 07 & 25: DTHR MKD WITH CONES.
A57-0723 FT RR, 55 FT LT; X EXTND RWY CNTRLN 21 FT FM RWY END. 8:1 SLP TO DTHR.
A57-257:1 SLP TO DTHR. 14 FT HANGAR, 0 FT FM RWY END, 66 FT RIGHT. 99FT TREES; 113 FT LEFT, 14 FT FM RWY END.
E111PRVDD THLDS ARE DSPLCD TO PRVD 20:1 APCH SLOPES.
CHAPIN FLD (IATA: 1B8) is a public airport located in CAMBRIDGE, NY, US.
