1B9
Local 1B9
MANSFIELD MUNI
PublicPUB

2 miles SE of MANSFIELD, MA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 00' 03"N 71° 11' 53"W
Elevation
123' MSL
Pattern Alt
1123' MSL
Mag Variation
14°W
Declination
16°W
Fuel
100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
9/3/26-10/1/26
K1B9 IFR
8:55 AM EDT
Rain and Mist
Overcast 1,900'
Broken 1,200'
Broken 600'
1.75sm
60°F
60°F
29.74"Hg
030° 7kts
AO2 P0001 T01580156
METAR K1B9 271255Z AUTO 03007KT 1 3/4SM RA BR BKN006 BKN012 OVC019 16/16 A2974 RMK AO2 P0001 T01580156
+ Add Your Business

1B9 FBOs

Promote Listing
Aero Fuel Management
UNICOM: 123.0
Phone: (508) 339-3001
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 8.10
Full Serve
Fuel Notes
Prices include tax
Promote Listing
Raven Energy
UNICOM: 123.0
Phone: (508) 612-2463
Other: (508) 612-9790
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 9/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.675
(774) 372-2047

Common

CTAF 123.0
ACTVT PAPI RWY 32; MIRL RWY 14/32 - CTAF.
UNICOM 123.0

Arrival

WOONS STAR 120.6

Approach

BOSTON APPROACH 124.1

Departure

BOSTON DEPARTURE 124.1

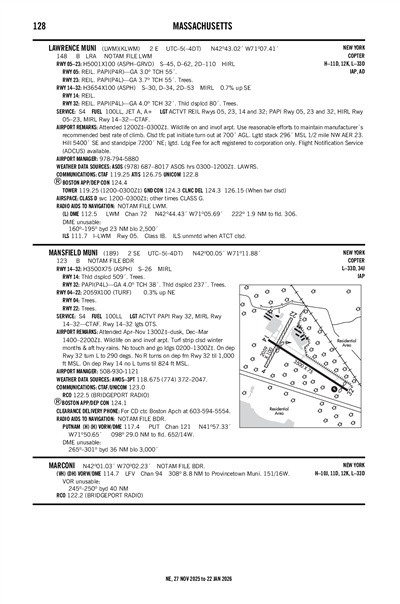

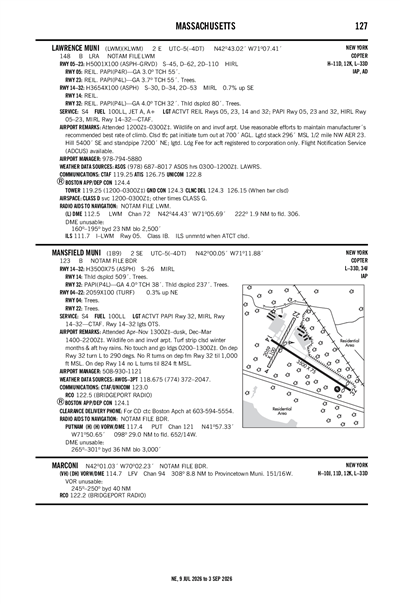

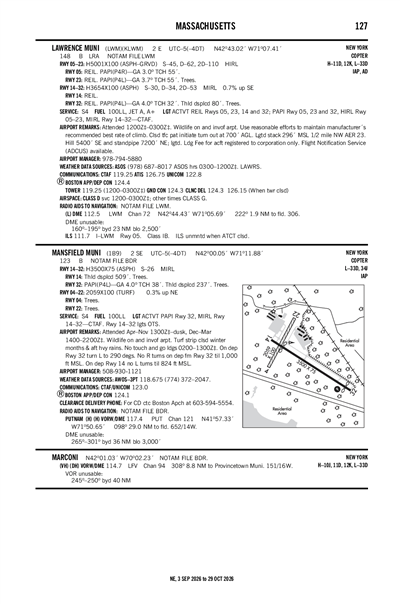

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPVD (20nm)
Sun, 9/27 7:20 AM EDT
Sun, 9/27 8:00 AM EDT - Mon, 9/28 8:00 AM EDT
IFR
8:00 AM EDT - 11:00 AM EDT
Rain and Mist
Overcast 700'
2sm
060° 16kts
Gusts 28kts
IFR
11:00 AM EDT - 6:00 PM EDT
Rain and Mist
Broken 800'
4sm
080° 13kts
Gusts 29kts
LIFR
6:00 PM EDT - 5:00 AM EDT
Light Showers and Rain and Mist
Overcast 400'
1sm
050° 11kts
Gusts 20kts
IFR
5:00 AM EDT - 8:00 AM EDT
Light Showers and Rain and Mist
Overcast 600'
5sm
050° 11kts
TAF KPVD 271120Z 2712/2812 06016G28KT 2SM RA BR OVC007
   FM271500 08013G29KT 4SM RA BR BKN008
   FM272200 05011G20KT 1SM -SHRA BR OVC004
   FM280900 05011KT 5SM -SHRA BR OVC006
1B9
EffectiveExpiresCategoryNOTAM
Domestic
9/16/26
0543Z
10/1/26
0443Z
!BDR 09/106 1B9 OBST TOWER LGT (ASR 1232361) 420532.50N0711810.50W (7.2NM NW 1B9) 464.9FT (216.9FT AGL) U/S 2609160543-2610010443
7/17/26
1715Z
10/17/26
2359Z
Runway!BDR 07/183 1B9 RWY 14/32 CLSD EXC MEDEVAC AND BASED HEL OPS 2607171715-2610172359
7/13/26
1130Z
7/13/27
1100Z
Runway!BDR 07/130 1B9 RWY 32 PAPI U/S 2607131130-2707131100
7/13/26
0401Z
10/12/26
2359Z
!BDR 07/116 1B9 AD AP CLSD EXC MEDEVAC AND BASED HEL OPS 2607130401-2610122359
7/6/26
1100Z
10/7/26
0400Z
Runway!BDR 06/249 1B9 RWY 04/22 CLSD 2607061100-2610070400
7/1/26
1648Z
10/15/26
2359Z
!BDR 07/013 1B9 AD AP FUEL NOT AVBL 2607011648-2610152359
FDC
9/3/26
1434Z
!FDC 6/0793 1B9 IAP MANSFIELD MUNI, MANSFIELD, MA.
RNAV (GPS) RWY 32, AMDT 3...
RNAV (GPS) Z RWY 14, AMDT 2...
PROCEDURE NA AT NIGHT.
2609031434-2704151434EST
9/3/26
1153Z
!FDC 6/0707 1B9 CHART MANSFIELD MUNI, MANSFIELD, MA.
RNAV (GPS) RWY 32, AMDT 3...
CORRECT PLANVIEW: CHANGE NOTE TO READ PROCEDURE NA FOR ARRIVALS AT DUNKK ON V141 SOUTHEAST BOUND INSTEAD OF SOUTHWEST BOUND.
2609031153-PERM
6/13/25
1936Z
!FDC 5/4415 1B9 IAP MANSFIELD MUNI, MANSFIELD, MA.
COPTER RNAV (GPS) Y RWY 14, AMDT 1...
DISREGARD NOTE: DESCENT ANGLE 5.70/TCH 40. PROFILE NOTE: VISUAL SEGMENT - OBSTACLES. VDP NA.
2506131936-2706131936EST
No
APR-NOV 0800-DUSK
DEC-MAR 0900-1700
TOWN OF MANSFIELD
TOWN HALL 6 PARK ROW
MANSFIELD, MA 02048
Phone: 508-261-7370
KEVIN BULLOCK
265 FRUIT ST
MANSFIELD, MA 02048
Phone: 508-930-1121
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDR
--
ACTVT PAPI RWY 32; MIRL RWY 14/32 - CTAF.
N/A
ROTG BCN OTS.
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction

Runway 04/22

2059 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 28°208°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 41° 59' 59"N 42° 00' 17"N
Longitude 71° 12' 08"W 71° 11' 56"W
Elevation 117' 123'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

3500 ft. x 75 ft.
ASPH
Good
NONE
MED

26,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 123°303°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 42° 00' 09"N 41° 59' 51"N
Longitude 71° 12' 07"W 71° 11' 28"W
Elevation 121' 119'
Threshold Crossing Height -- 38 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TURF STRIP CLSD WINTER MONTHS & AFT HVY RAINS.
A110-3ON DEP RWY 32 TURN L TO 290 DEGS.
A110-4ON DEP RWY 14 NO L TURNS TIL 824 FT MSL.
A110-5NO TGLS 2100-0800.
A110-6NO R TURNS ON DEP FM RWY 32 TIL 1000 FT MSL.
A110-7FOR CD CTC BOSTON APCH AT 603-594-5554.
A110-8WILDLIFE ON & INVOF ARPT.
A110-9RWY 14/32 LGTS OTS.
A16OR 508-339-3001.
A57-14APCH RATIO 34:1 TO DTHR.
A57-32APCH RATIO 34:1 TO DTHR.
A80ROTG BCN OTS.
A81-APTACTVT PAPI RWY 32; MIRL RWY 14/32 - CTAF.
E111ESTAB PRIOR 1959.
MANSFIELD MUNI (IATA: 1B9) is a public airport located in MANSFIELD, MA, US.
