MAYFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1D4
Local 1D4
MAYFIELD
PublicPUB

5 miles SE of AKRON, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 59' 33"N 81° 25' 54"W
Elevation
1100' MSL
Pattern Alt
2100' MSL
Mag Variation
8°W
Declination
7°W
Fuel
None Listed
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
8/6/26-9/3/26
KAKR (3nm) MVFR
12:34 PM EDT
Broken 2,800'
Broken 2,300'
10sm
77°F
69°F
29.95"Hg
360° 7kts
AO2 T02500206
SPECI KAKR 171634Z AUTO 36007KT 10SM BKN023 BKN028 25/21 A2995 RMK AO2 T02500206
+ Add Your Business

1D4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

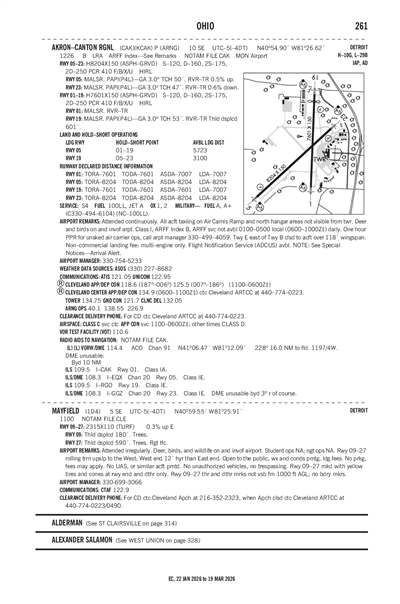

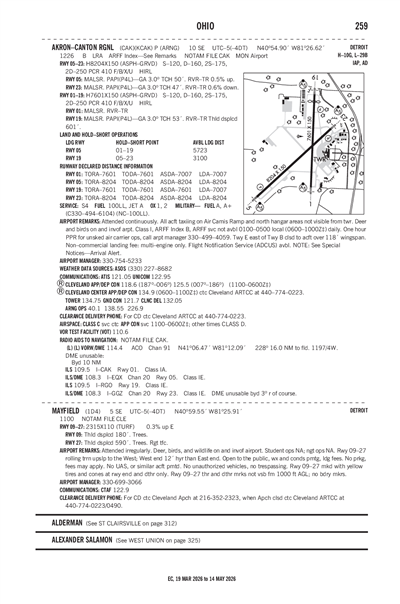

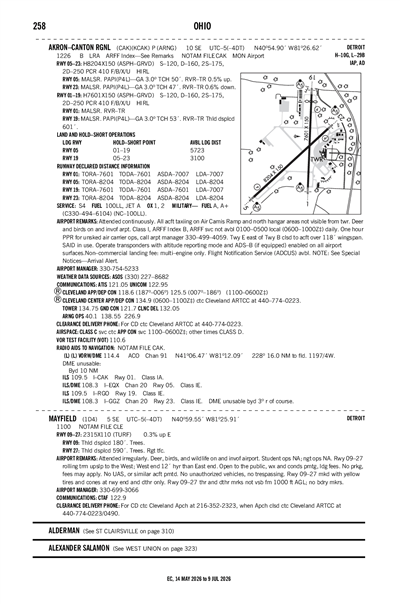

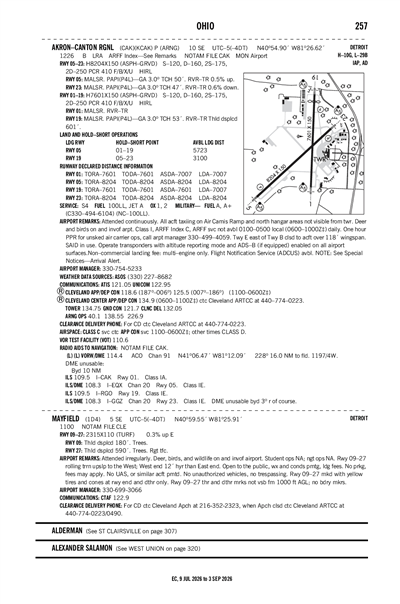

FAA A/FD Pages

Terminal Area Forecast

KCAK (5nm)
Mon, 8/17 10:02 AM EDT
Mon, 8/17 10:00 AM EDT - Tue, 8/18 8:00 AM EDT
IFR
Temporary 10:00 AM EDT - 11:00 AM EDT
Mist
Broken 800'
4sm
Calm
MVFR
10:00 AM EDT - 12:00 PM EDT
Overcast 1,500'
6sm
310° 5kts
MVFR
12:00 PM EDT - 2:00 PM EDT
Broken 2,500'
6sm
330° 6kts
VFR
2:00 PM EDT - 6:00 PM EDT
Broken 3,500'
6sm
350° 8kts
VFR
6:00 PM EDT - 8:00 AM EDT
Scattered 25,000'
6sm
VRB° 4kts
TAF KCAK 171402Z 1714/1812 31005KT P6SM OVC015
   TEMPO 1714/1715 4SM BR BKN008
   FM171600 33006KT P6SM BKN025
   FM171800 35008KT P6SM BKN035
   FM172200 VRB04KT P6SM SCT250
1D4
EffectiveExpiresCategoryNOTAM
Domestic
8/12/26
0456Z
9/26/26
0455Z
!CLE 08/529 1D4 OBST TOWER LGT (ASR 1014119) 410146.00N0812141.00W (3.9NM NE 1D4) 1453.1FT (250.7FT AGL) U/S 2608120456-2609260455
7/22/26
2317Z
10/20/26
2317Z
!CLE 07/745 1D4 OBST TOWER LGT (ASR 1203504) 410103.20N0812044.70W (4.2NM ENE 1D4) 1455.7FT (258.9FT AGL) U/S 2607222317-2610202317
No
IREG
REBECCA MAY, TRUSTEE
2571 MYERSVILLE RD
UNIONTOWN, OH 44685
Phone: 330-699-3066
REBECCA MAY
2571 MYERSVILLE RD
UNIONTOWN, OH 44685
Phone: 330-699-3066
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
--
N/A
N/A
No
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

2315 ft. x 110 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Right
Markings
Markings Condition POOR POOR
Latitude 40° 59' 33"N 40° 59' 33"N
Longitude 81° 26' 09"W 81° 25' 39"W
Elevation 1,092' 1,100'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-1FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0223/0490.
A110-2DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
A110-3OPEN TO THE PUB, WX AND CONDS PMTG. LDG FEES. NO PRKG, FEES MAY APPLY. NO UAS OR SIMILAR ACFT PMTD.
A110-4NO UNAUTH VEHICLES. NO TRESPASSING.
A110-5STUDENT OPS NA; NGT OPS NA.
A33-09/27_CONDROLLING TRRN UPSLP TO THE WEST; WEST END 12 FT HYR THAN EAST END.
A42-09_CONDTHR & DTHR MRKGS NOT VSB FM 1000 FT AGL; NO BDRY MKRS.
A42-09_MARKYELLOW TIRES & CONES AT RWY END & DTHR ONLY.
A42-27_CONDTHR & DTHR MRKGS NOT VSB FM 1000 FT AGL; NO BDRY MKRS.
A42-27_MARKYELLOW TIRES & CONES AT RWY END & DTHR ONLY.
A57-09OBSTN CLNC SLP 0:1 TO DTHR OVR 75 FT TREES, 0 FT DIST, 75 FT L.
A57-27OBSTN CLNC SLP 0:1 TO DTHR OVR 65 FT TREES, 0 FT DIST, 75 FT R.
MAYFIELD (IATA: 1D4) is a public airport located in AKRON, OH, US.
