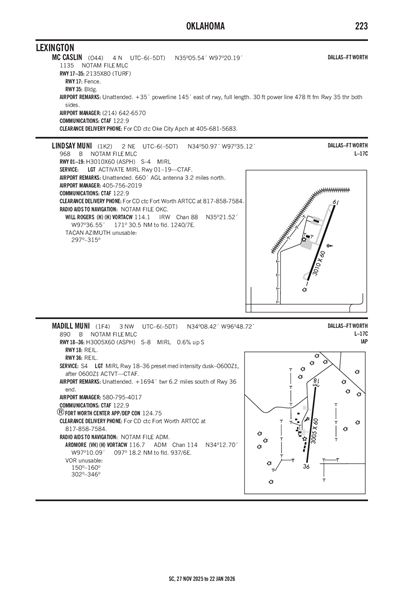

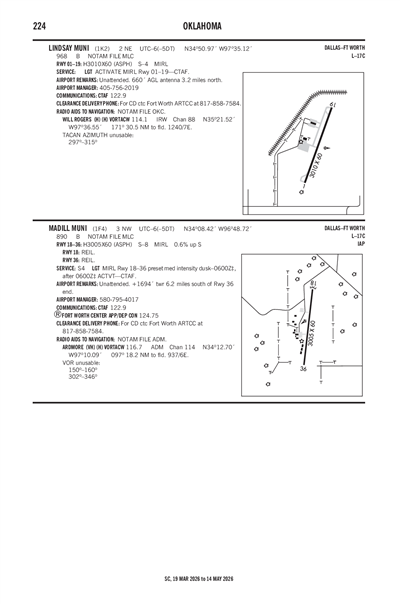

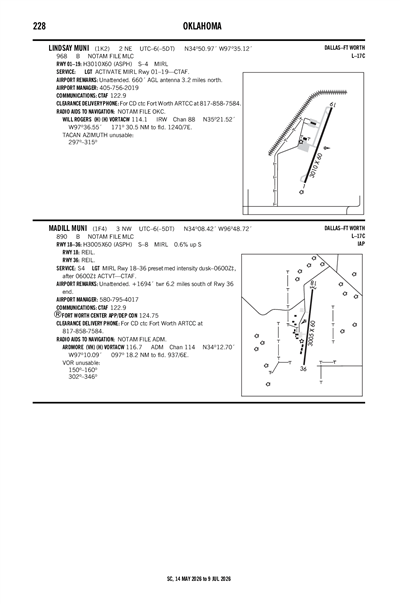

MADILL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1F4
Local 1F4
MADILL MUNI
PublicPUB

3 miles NW of MADILL, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 08' 25"N 96° 48' 43"W
Elevation
890' MSL
Pattern Alt
1890' MSL
Mag Variation
3°E
Declination
6°E
Fuel
None Listed
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
4/16/26-5/14/26
KADM (14nm) LIFR
7:50 AM CDT
Mist
Overcast 300'
2sm
61°F
61°F
29.77"Hg
100° 6kts
METAR KADM 251250Z 10006KT 2SM BR OVC003 16/16 A2977
+ Add Your Business

1F4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
MIRL RY 18/36 PRESET MED INTENSITY DUSK-0000. AFTER 0000 ACTVT - CTAF.

Center

FORT WORTH CENTER 124.75
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 124.75/323.0 (ARDMORE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDUA (24nm)
Sat, 4/25 6:43 AM CDT
Sat, 4/25 7:00 AM CDT - Sun, 4/26 7:00 AM CDT
IFR
Temporary 7:00 AM CDT - 9:00 AM CDT
Mist
No Clouds
1sm
Calm
LIFR
7:00 AM CDT - 10:00 AM CDT
Mist
Overcast 200'
6sm
100° 7kts
IFR
10:00 AM CDT - 1:00 PM CDT
Broken 800'
6sm
130° 10kts
VFR
1:00 PM CDT - 9:00 PM CDT
Broken 8,000'
Scattered 4,000'
6sm
140° 11kts
MVFR
4:00 PM CDT - 9:00 PM CDT
Light Thunderstorm and Rain and Mist
Overcast 2,500'
5sm
Calm
MVFR
Temporary 9:00 PM CDT - 1:00 AM CDT
Light Thunderstorm and Rain and Mist
Overcast 2,500'
5sm
Calm
VFR
9:00 PM CDT - 4:00 AM CDT
Broken 25,000'
6sm
140° 9kts
MVFR
4:00 AM CDT - 7:00 AM CDT
Broken 1,200'
6sm
120° 9kts
TAF KDUA 251143Z 2512/2612 10007KT 6SM BR OVC002
   TEMPO 2512/2514 1SM BR
   FM251500 13010KT P6SM BKN008
   FM251800 14011KT P6SM SCT040 BKN080
   PROB30 2521/2602 5SM -TSRA BR OVC025CB
   FM260200 14009KT P6SM BKN250
   TEMPO 2602/2606 5SM -TSRA BR OVC025CB
   FM260900 12009KT P6SM BKN012
1F4
EffectiveExpiresCategoryNOTAM
Domestic
4/14/22
1404Z
!MLC 04/200 1F4 AD AP WILDLIFE HAZARD DEER 2204141404-PERM
FDC
2/18/26
1920Z
!FDC 6/6067 1F4 IAP MADILL MUNI, MADILL, OK.
RNAV (GPS) RWY 18, ORIG-B...
LNAV CAT C/D VISIBILITY 1 1/4. CHANGE PBN REQUIREMENTS NOTE TO: RNP
APCH - GPS. CHANGE BACKUP NOTE TO READ: USE 1F0 ALTIMETER SETTING;
WHEN NOT RECEIVED, USE MLC ALTIMETER SETTING AND INCREASE ALL MDAS
140 FEET AND LNAV VISIBILITY CATS C/D 3/8 SM. CHART 1F0 AWOS-3.
THIS IS RNAV (GPS) RWY 18, ORIG-C. 2602181920-PERM
No
UNATNDD
CITY OF MADILL
CITY HALL 201 E. OVERTON
MADILL, OK 73446
Phone: 580-795-5586
DAVID MCDANIEL
CITY HALL 201 E. OVERTON
MADILL, OK 73446
Phone: 580-795-4017
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
MIRL RY 18/36 PRESET MED INTENSITY DUSK-0000. AFTER 0000 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 18/36

3005 ft. x 60 ft.
ASPH
Good
NONE
MED

8,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 186°6°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 08' 40"N 34° 08' 11"N
Longitude 96° 48' 41"W 96° 48' 45"W
Elevation 862' 881'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1+1694 FT TWR 6.2 MI SOUTH OF RY 36 END.
A110-2FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A81-APTMIRL RY 18/36 PRESET MED INTENSITY DUSK-0000. AFTER 0000 ACTVT - CTAF.
MADILL MUNI (IATA: 1F4) is a public airport located in MADILL, OK, US.
