GRAND CANYON WEST - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1G4
Local 1G4
GRAND CANYON WEST
PublicPUB

60 miles NW of PEACH SPRINGS, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 59' 10"N 113° 49' 01"W
Elevation
4817' MSL
Pattern Alt
5817' MSL
Mag Variation
11°E
Declination
14°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
6/11/26-7/9/26
KIGM (44nm) VFR
4:51 PM MST
Clear
10sm
97°F
43°F
29.85"Hg
210° 20kts
Gusts 31kts
AO2 PK WND 23040/2253 SLP029 T03610061 10372 20344 56018
METAR KIGM 252351Z AUTO 21020G31KT 10SM CLR 36/06 A2985 RMK AO2 PK WND 23040/2253 SLP029 T03610061 10372 20344 56018
+ Add Your Business

1G4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.425
(928) 237-1354

Common

CTAF 122.9
ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.

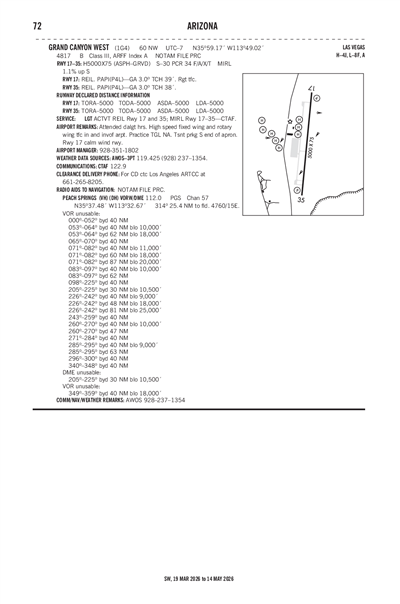

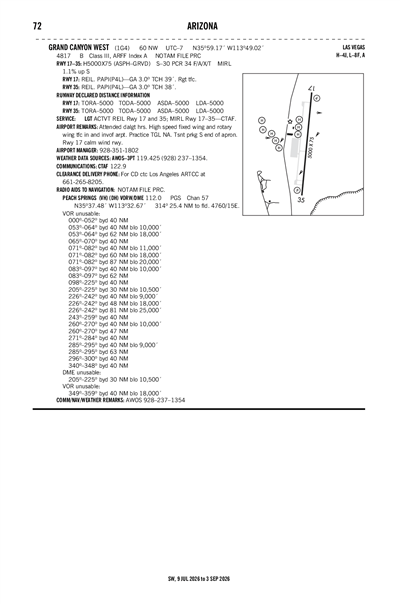

FAA A/FD Pages

Terminal Area Forecast

KLSV (61nm)
Thu, 6/25 4:00 PM PDT
Thu, 6/25 4:00 PM PDT - Fri, 6/26 10:00 PM PDT
VFR
4:00 PM PDT - 6:00 PM PDT
Sky Clear
6sm
29.76"Hg
220° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
VFR
Becoming 6:00 PM PDT - 2:00 AM PDT
Sky Clear
6sm
29.73"Hg
140° 9kts
VFR
Becoming 2:00 AM PDT - 8:00 AM PDT
Sky Clear
6sm
29.73"Hg
220° 10kts
Gusts 15kts
VFR
Becoming 8:00 AM PDT - 12:00 PM PDT
Sky Clear
6sm
29.73"Hg
220° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
VFR
Becoming 12:00 PM PDT - 10:00 PM PDT
Few 18,000'
6sm
29.70"Hg
220° 20kts
Gusts 35kts
Moderate, Clear Air, Occasional: up to 9,000'
TAF KLSV 252300Z 2523/2705 22015G25KT 9999 SKC 520009 QNH2975INS
   BECMG 2601/2603 14009KT 9999 SKC QNH2972INS
   BECMG 2609/2610 22010G15KT 9999 SKC QNH2974INS
   BECMG 2615/2616 22015G25KT 9999 SKC 520009 QNH2972INS
   BECMG 2619/2621 22020G35KT 9999 FEW180 520009 QNH2970INS TX41/2523Z TN18/2612Z
1G4
EffectiveExpiresCategoryNOTAM
Domestic
6/25/26
1648Z
6/25/26
1800Z
!PRC 06/207 1G4 AD AP ALL SFC WIP WEED REMOVAL BRAVO CHARLIE HELIPADS 2606251648-2606251800
No
DALGT
THE HUALAPAI INDIAN TRIBE
P.O. BOX 359
PEACH SPRINGS, AZ 86434
Phone: 928-769-2419
WILL NELSON
PO BOX 359
PEACH SPRINGS, AZ 86434
Phone: 928-351-1802
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 17/35

5000 ft. x 75 ft.
ASPH
Good
GRVD
MED

30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 185°5°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 59' 35"N 35° 58' 45"N
Longitude 113° 48' 58"W 113° 49' 04"W
Elevation 4,762' 4,817'
Threshold Crossing Height 39 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1ATTN: DUE TO PROXIMITY OF GRAND CANYON NATIONAL PARK SEE SFAR 50-2; PARTICULAR ATTN TO REG FOR OPS BLW 14500 FT MSL.
A110-2PRACTICE TGL NA.
A110-4CTN: HIGH SPEED FIXED WING & ROTARY WING TFC IN & INVOF ARPT.
A110-7TSNT PRKG S END OF APRON.
A110-8FOR CD CTC LOS ANGELES ARTCC AT 661-265-8205.
A30-17/35RWY 17 CALM WIND RWY.
A39-17/35PCR VALUE: 34/F/A/X/T
A81-APTACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF.
E111PRVDD OPNS CONDUCTED DURING VFR CONDITIONS; SPONSOR ENSURE ALL OPNS ADHERE TO THE COMMUNICATIONS & COORDINATION REQUIREMENTS FOR VFR TFC OPERATING WITHIN & BTN THE BOUNDARIES OF CLASS E AND CLASS B AIRSPACE.
GRAND CANYON WEST (IATA: 1G4) is a public airport located in PEACH SPRINGS, AZ, US.
