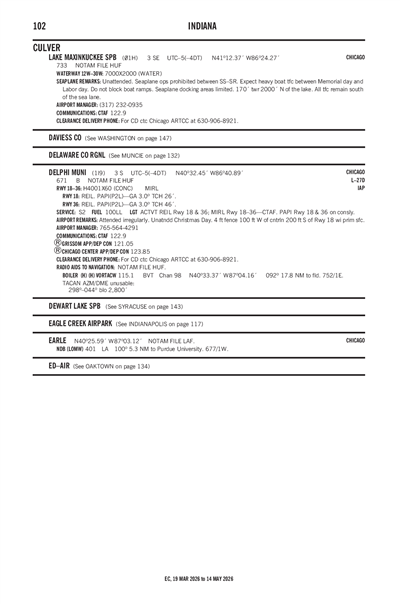

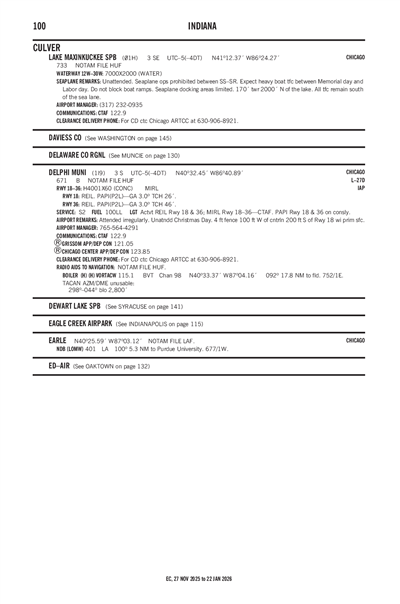

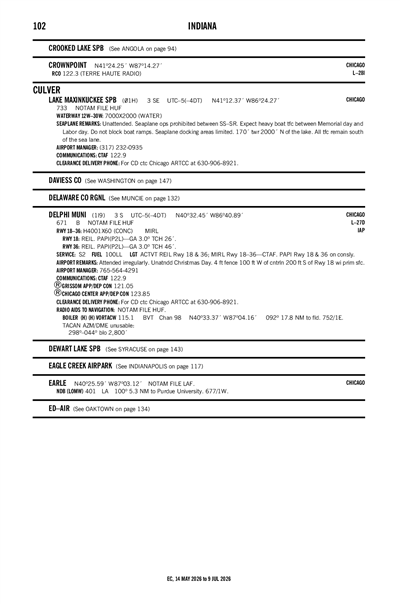

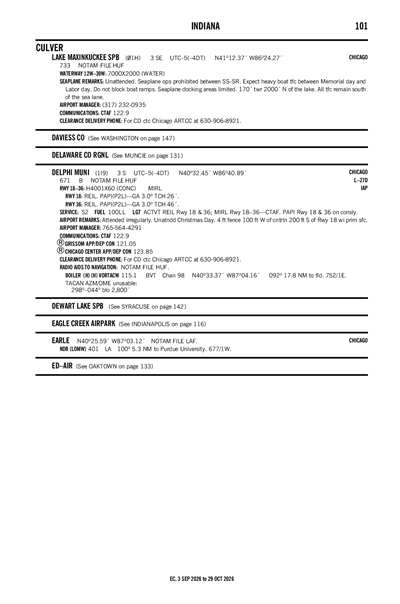

DELPHI MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1I9
Local 1I9
DELPHI MUNI
PublicPUB

3 miles S of DELPHI, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 32' 27"N 86° 40' 53"W
Elevation
671' MSL
Pattern Alt
1671' MSL
Mag Variation
5°W
Declination
5°W
Fuel
100LL
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
3/19/26-4/16/26
KLAF (14nm) MVFR
7:54 PM EDT
Overcast 2,800'
10sm
48°F
41°F
30.00"Hg
290° 16kts
Gusts 25kts
AO2 PK WND 28029/2318 SLP157 60005 T00890050 10178 20089 53021
METAR KLAF 042354Z 29016G25KT 10SM OVC028 09/05 A3000 RMK AO2 PK WND 28029/2318 SLP157 60005 T00890050 10178 20089 53021
+ Add Your Business

1I9 FBOs

Promote Listing
Delphi Municipal Airport
UNICOM: 122.9
Phone: (765) 564-4291
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 3/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.30
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT REIL RWY 18 & 36; MIRL RWY 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.

Approach

GRISSOM APPROACH 121.05

Departure

GRISSOM DEPARTURE 121.05

Center

GRISSOM CENTER 123.85
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC (ZAU) ON FREQ 123.85 (LAFAYETTE RCAG) WHEN GRISSOM APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLAF (14nm)
Sat, 4/4 7:22 PM EDT
Sat, 4/4 8:00 PM EDT - Sun, 4/5 8:00 PM EDT
MVFR
8:00 PM EDT - 10:00 PM EDT
Broken 3,000'
Scattered 1,500'
6sm
280° 13kts
Gusts 21kts
VFR
10:00 PM EDT - 7:00 AM EDT
Broken 10,000'
Scattered 3,000'
6sm
280° 11kts
Gusts 19kts
MVFR
7:00 AM EDT - 2:00 PM EDT
Broken 2,500'
6sm
300° 14kts
Gusts 22kts
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 3,500'
6sm
300° 13kts
Gusts 21kts
TAF KLAF 042322Z 0500/0524 28013G21KT P6SM SCT015 BKN030
   FM050200 28011G19KT P6SM SCT030 BKN100
   FM051100 30014G22KT P6SM BKN025
   FM051800 30013G21KT P6SM BKN035
1I9
EffectiveExpiresCategoryNOTAM
Domestic
3/11/26
1745Z
6/9/26
0400Z
!HUF 03/248 1I9 OBST TOWER LGT (ASR 1221829) 403547.50N0864047.90W (3.4NM NE 1I9) 837.9FT (294.9FT AGL) U/S 2603111745-2606090400
2/4/26
2030Z
9/30/26
2359Z
!HUF 02/189 1I9 OBST SEE ZAU 02/018 WIND FARM 2602042030-2609302359
FDC
6/10/25
1801Z
!FDC 5/1432 1I9 IAP DELPHI MUNI, DELPHI, IN.
RNAV (GPS) RWY 18, ORIG ...
RNAV (GPS) RWY 36, ORIG ...
PROCEDURE NA AT NIGHT. 2506101801-2706151801EST
No
IRREG
UNATNDD CHRISTMAS DAY.
CITY OF DELPHI
201 S. UNION ST.
DELPHI, IN 46923
Phone: 765-564-2097
ED NAGLE
8296 W DIV LINE RD
DELPHI, IN 46923
Phone: 765-564-4291
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 18 & 36; MIRL RWY 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
N/A
Yes - Lighted
No
No
Tie-Down
No
Minor
Minor
None
None
None

Runway 18/36

4001 ft. x 60 ft.
CONC
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 32' 47"N 40° 32' 07"N
Longitude 86° 40' 53"W 86° 40' 53"W
Elevation 671' 671'
Threshold Crossing Height 26 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-24 FT FENCE 100 FT W OF CNTRLN 200 FT S OF RWY 18 WI PRIM SFC.
A110-4FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A16260 316 4262.
A17-M2UNATNDD CHRISTMAS DAY.
A57-18APCH SLOPE 20:1 AT DSPLCD THR DUE TO ROAD.
A58-18ROAD 60 FT FM RWY END 1 FT ABOVE RWY.
A75-HWHEN AVBL
A81-APTACTVT REIL RWY 18 & 36; MIRL RWY 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
DELPHI MUNI (IATA: 1I9) is a public airport located in DELPHI, IN, US.
