iFlightPlanner



...

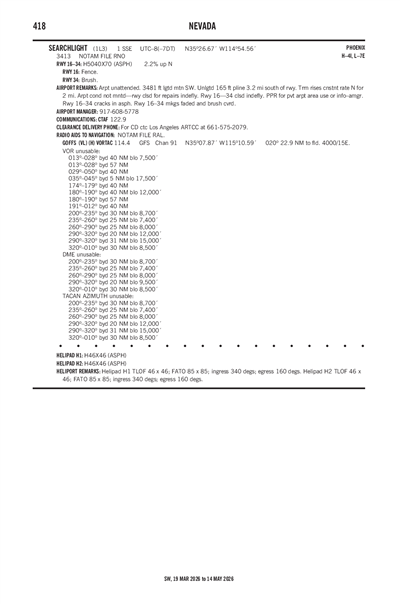

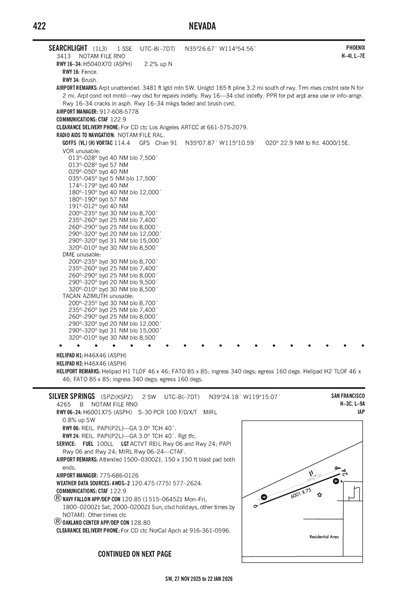

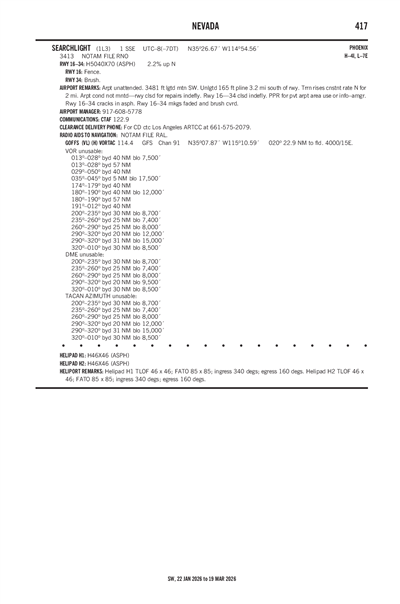

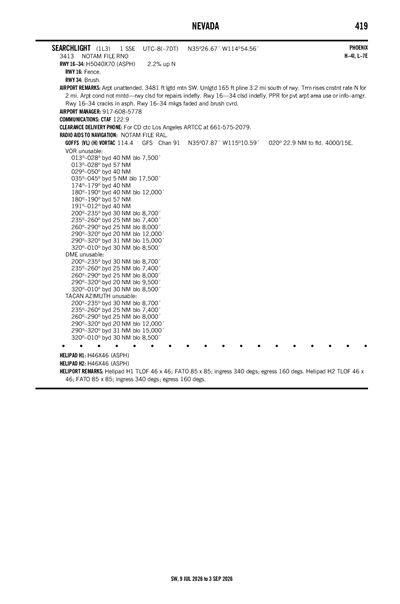

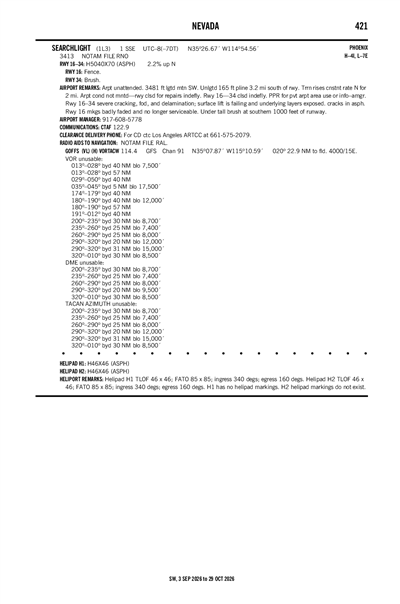

SEARCHLIGHT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1L3
Local 1L3
SEARCHLIGHT
PublicPUB

1 miles SSE of SEARCHLIGHT, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 26' 40"N 114° 54' 34"W
Elevation
3413' MSL
Pattern Alt
4413' MSL
Mag Variation
11°E
Declination
14°E
Fuel
None Listed
FSS
RENO (RNO)
Sectional
PHOENIX
ARTCC
LOS ANGELES (ZLA)
Data Effective
9/3/26-10/1/26
KIFP (25nm) VFR
7:55 PM MST
Scattered 12,000'
10sm
82°F
63°F
29.86"Hg
170° 5kts
AO2
METAR KIFP 070255Z AUTO 17005KT 10SM SCT120 28/17 A2986 RMK AO2
+ Add Your Business

1L3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KIFP (25nm)
Sun, 9/6 4:20 PM MST
Sun, 9/6 5:00 PM MST - Mon, 9/7 5:00 PM MST
VFR
5:00 PM MST - 8:00 PM MST
Showers in vicinity
Broken 12,000'
Scattered 8,000'
6sm
350° 9kts
VFR
8:00 PM MST - 8:00 AM MST
Broken 12,000'
Scattered 10,000'
6sm
010° 6kts
VFR
8:00 AM MST - 2:00 PM MST
Scattered 10,000'
6sm
VRB° 6kts
VFR
2:00 PM MST - 5:00 PM MST
Few 10,000'
6sm
230° 8kts
TAF KIFP 062320Z 0700/0724 35009KT P6SM VCSH SCT080 BKN120
   FM070300 01006KT P6SM SCT100 BKN120
   FM071500 VRB06KT P6SM SCT100
   FM072100 23008KT P6SM FEW100
1L3
EffectiveExpiresCategoryNOTAM
Domestic
7/23/26
0659Z
10/21/26
0659Z
!RNO 07/234 1L3 OBST TOWER LGT (ASR 1011151) 352814.10N1145513.50W (1.7NM NNW 1L3) 3949.1FT (192.9FT AGL) U/S 2607230659-2610210659
No
UNATNDD
TURNBULL, LLC
GRANITO LTD 2614 CROYDON RD.
CHARLOTTE, NC 28209
Phone: 917-608-5778
RUTHANN GRANITO
GRANITO LTD 110 EAST 59TH ST, 22ND FLOOR
NEW YORK, NY 10022
Phone: 917-608-5778
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
--
N/A
No
No
Yes
Tie-Down
No
None
None
None
None
None

Runway 16/34

5040 ft. x 70 ft.
ASPH
Failed
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 176°356°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 35° 27' 05"N 35° 26' 16"N
Longitude 114° 54' 36"W 114° 54' 31"W
Elevation 3,413' 3,300'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

46 ft. x 46 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NSTD
Markings Condition POOR
Latitude 35° 26' 60"N N/A
Longitude 114° 54' 42"W N/A
Elevation 3,403' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

46 ft. x 46 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NSTD
Markings Condition POOR
Latitude 35° 26' 52"N N/A
Longitude 114° 54' 45"W N/A
Elevation 3,396' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-13481 FT LGTD MTN SW.
A110-11FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-13PPR FOR PVT ARPT AREA USE OR INFO - AMGR.
A110-14RWY 16/34 CLSD INDEFLY.
A110-2UNLGTD 165 FT PLINE 3.2 MI SOUTH OF RWY.
A110-3TRRN RISES CNSTNT RATE N FOR 2 MI.
A110-8ARPT COND NOT MNTD - RWY CLSD FOR REPAIRS INDEFLY.
A30A-H1TLOF 46X46 FT; FATO 85X85 FT; INGRESS/EGRESS 340/160.
A30A-H2TLOF 46X46 FT; FATO 85X85 FT; INGRESS/EGRESS 340/160.
A33-16/34_CONDSEVERE CRACKING, FOD, AND DELAMINATION; SURFACE LIFT IS FAILING AND UNDERLYING LAYERS EXPOSED.
A42-16_CONDMARKINGS BADLY FADED AND NO LONGER SERVICEABLE. UNDER TALL BRUSH AT SOUTHERN 1000 FEET OF RUNWAY
A42-34_CONDMKGS FADED & BRUSH CVRD.
A42-H1_MARKTHERE ARE NO HELIPAD MARKINGS
A42-H2_MARKHELIPAD MARKINGS DO N0T EXIST
A58-165 FT FENCE 83 FT L & PARL TO CNTRLN.
A58-342-4 FT BRUSH S END OF RWY IN RSA.
E111ESTABD PRIOR TO 15 MAY 1959. APPROVED IAW ASN 2020-AWP-1742-NRA.
SEARCHLIGHT (IATA: 1L3) is a public airport located in SEARCHLIGHT, NV, US.
