iFlightPlanner



...

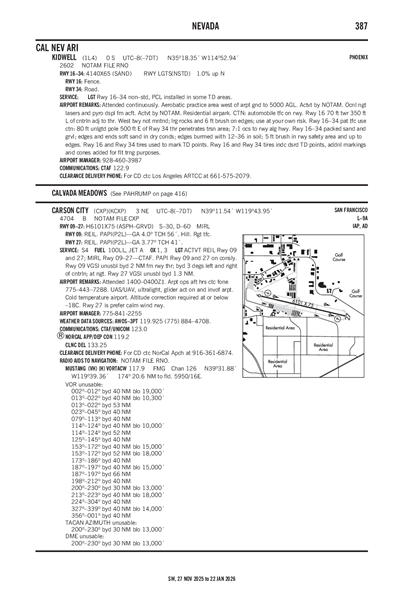

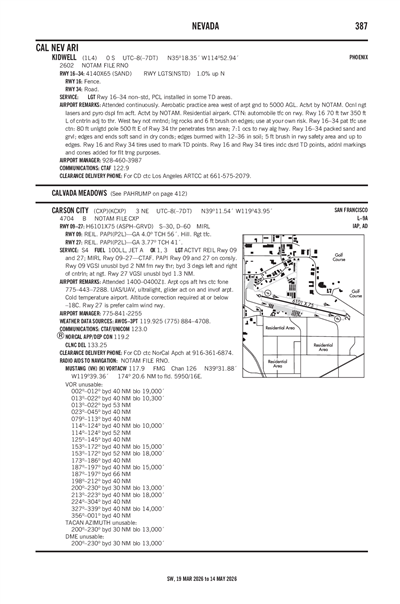

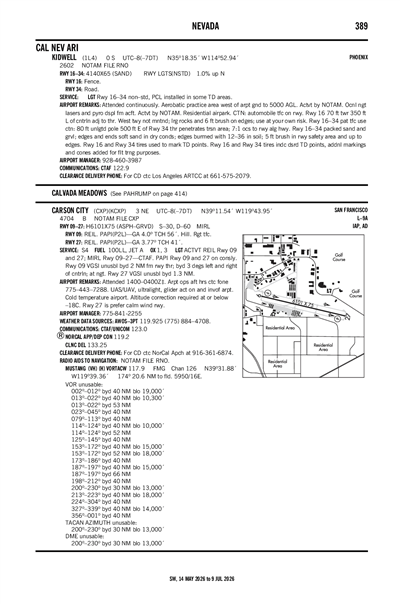

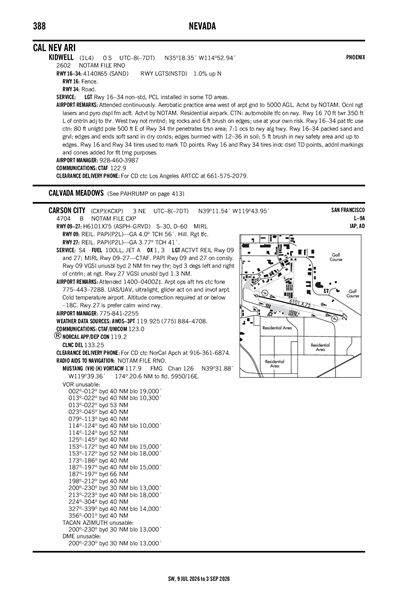

KIDWELL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1L4
Local 1L4
KIDWELL
PublicPUB

0 miles S of CAL NEV ARI, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 18' 21"N 114° 52' 57"W
Elevation
2602' MSL
Pattern Alt
3602' MSL
Mag Variation
11°E
Declination
14°E
Fuel
None Listed
FSS
RENO (RNO)
Sectional
PHOENIX
ARTCC
LOS ANGELES (ZLA)
Data Effective
10/29/26-11/26/26
KEED (35nm) VFR
4:56 AM PST
Clear
10sm
55°F
41°F
30.01"Hg
300° 5kts
AO2 SLP145 T01280050 $
METAR KEED 121256Z AUTO 30005KT 10SM CLR 13/05 A3001 RMK AO2 SLP145 T01280050 $
+ Add Your Business

1L4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
RWY LGTS ACTVT VIA CTAF 122.9; 7 KEY MIKE; AVBL 24 HRS.; NON FEDERAL, NON STD RWY LGTS INSTLD BY OWNER. RWY LGTS ACTVT VIA CTAF 122.9 USING 7 KEY MIKE. LGTS AVBL 24 HRS. NO ALS, NO TDZ, NO CNTRLN LGTS, NO RVR EQUIP.

FAA A/FD Pages

Terminal Area Forecast

KIFP (18nm)
Thu, 11/12 4:25 AM MST
Thu, 11/12 5:00 AM MST - Fri, 11/13 5:00 AM MST
VFR
5:00 AM MST - 10:00 AM MST
Sky Clear
6sm
050° 7kts
VFR
10:00 AM MST - 3:00 PM MST
Sky Clear
6sm
020° 12kts
Gusts 20kts
VFR
3:00 PM MST - 7:00 PM MST
Few 25,000'
6sm
350° 7kts
VFR
7:00 PM MST - 5:00 AM MST
Scattered 25,000'
6sm
040° 7kts
TAF KIFP 121125Z 1212/1312 05007KT P6SM SKC
   FM121700 02012G20KT P6SM SKC
   FM122200 35007KT P6SM FEW250
   FM130200 04007KT P6SM SCT250
1L4
No NOTAM Available
No
ALL
KIDWELL AIRPORT LLC
11751 MONARCH ST C/O UNIVERSAL GREEN TECHNOLOGY, INC
GARDEN GROVE, CA 92841
Phone: 714-487-8565
MILNE POCOCK
BUSH-AIR LLC 20 COMANCHE TRAIL # 519
CAL-NEV-ARI, NV 89039
Phone: 928-460-3987
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
RWY LGTS ACTVT VIA CTAF 122.9; 7 KEY MIKE; AVBL 24 HRS.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 16/34

4140 ft. x 65 ft.
SAND
Good
NONE
LOW

--
--
--
--
  Runway 16 Runway 34
True Heading 169°349°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 35° 18' 41"N 35° 18' 01"N
Longitude 114° 53' 01"W 114° 52' 52"W
Elevation 2,602' 2,559'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights
A110-1RESIDENTIAL AIRPARK.
A110-10OCNL NGT LASERS AND PYRO DSPL FM ACFT. ACTVT BY NOTAM.
A110-11NON FEDERAL, NON STD RWY LGTS INSTLD BY OWNER. RWY LGTS ACTVT VIA CTAF 122.9 USING 7 KEY MIKE. LGTS AVBL 24 HRS. NO ALS, NO TDZ, NO CNTRLN LGTS, NO RVR EQUIP.
A110-2WEST TWY NOT MNTND; LRG ROCKS & 6 FT BRUSH ON EDGES; USE AT YOUR OWN RISK.
A110-7FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-8CTN: AUTOMOBILE TFC ON RWY.
A110-9AEROBATIC PRACTICE AREA WEST OF ARPT GND TO 5000 FT AGL. ACTVT BY NOTAM.
A30-16/34PAT TFC USE CTN: 80 FT UNLGTD POLE 500 FT EAST OF RWY 34 THR PENETRATES TRSN AREA; 7:1 OCS TO RWY ALG HWY.
A30A-1670 FT TWR 350 FT L OF CNTRLN ADJ TO THR.
A33-16/34_CONDPACKED SAND & GRVL; EDGES & ENDS SOFT SAND IN DRY CONDS; EDGES BURMED WITH 12 - 36 IN SOIL; 5 FT BRUSH IN RWY SAFETY AREA & UP TO EDGES.
A40-16/34NON-STD, PCL INSTALLED IN SOME TD AREAS.
A42-16_CONDTIRES INDC DSRD TD POINTS, ADDNL MARKINGS AND CONES ADDED FOR FLT TRNG PURPOSES.
A42-16_MARKTIRES USED TO MARK TD POINTS.
A42-34_CONDTIRES INDC DSRD TD POINTS, ADDNL MARKINGS & CONES ADDED FOR FLT TRNG PURPOSES.
A42-34_MARKTIRES USED TO MARK TD POINTS.
A81-APTRWY LGTS ACTVT VIA CTAF 122.9; 7 KEY MIKE; AVBL 24 HRS.
KIDWELL (IATA: 1L4) is a public airport located in CAL NEV ARI, NV, US.
