1O1
GRANDFIELD MUNI
Public
PUB
3 miles W of GRANDFIELD, OK
View on
Map
Status
Operational
Coordinates
34° 14' 15"N
98° 44' 31"W
Elevation
1128' MSL
Pattern Alt
2128' MSL
Mag Variation
07E
Fuel
None Listed
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
4/18/24-5/16/24
KFDR (14nm)
VFR
9:53 AM CDT
RAW
Clear
Viz
10sm
Temp
72°F
Dew
61°F
Pres
29.64"Hg
Wind
240° 11kts
RMK
AO2 SLP020 T02220161 51013
KFDR 261453Z AUTO 24011KT 10SM CLR 22/16 A2964 RMK AO2 SLP020 T02220161 51013
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
1O1 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
1O1 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
1O1 Hotels
No hotels are listed for this airport.
1O1 Restaurants
No restaurants are listed for this airport.
1O1 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

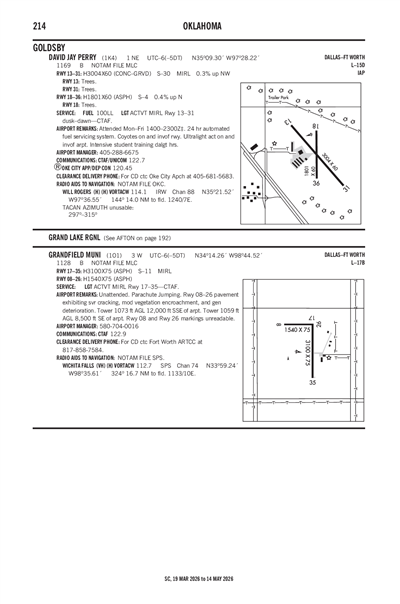

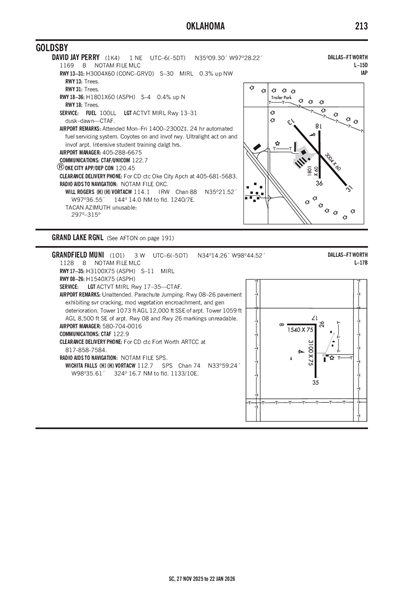

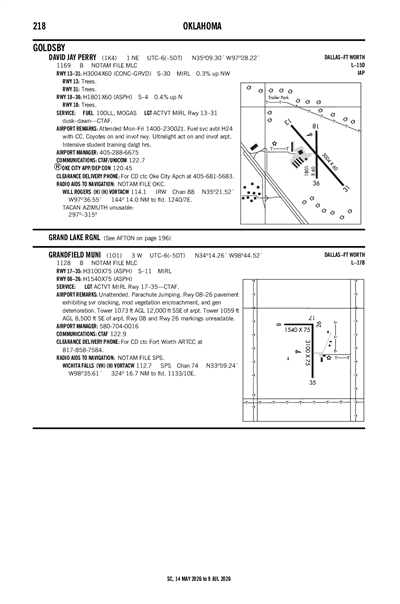

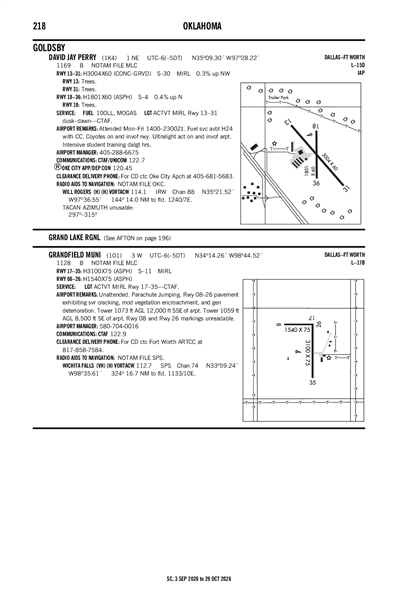

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KSPS (20nm)
RAW
Reported
Fri, 4/26 6:20 AM CDT
Valid
Fri, 4/26 7:00 AM CDT - Sat, 4/27 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Broken 25,000'
Scattered 2,500'
Viz
6sm
Wind
170° 15kts
Gusts 23kts
VFR
10:00 AM CDT - 8:00 PM CDT
Few 25,000'
Viz
6sm
Wind
220° 19kts
Gusts 25kts
VFR
8:00 PM CDT - 3:00 AM CDT
Sky Clear
Viz
6sm
Wind
160° 12kts
Gusts 18kts
MVFR
3:00 AM CDT - 7:00 AM CDT
Broken 1,500'
Viz
6sm
Wind
170° 14kts
Gusts 21kts
KSPS 261120Z 2612/2712 17015G23KT P6SM SCT025 BKN250
FM261500 22019G25KT P6SM FEW250
FM270100 16012G18KT P6SM SKC
FM270800 17014G21KT P6SM BKN015
1O1
Domestic
4/24/24
1148Z
!MLC 04/277 1O1 OBST TOWER LGT (ASN 2019-ASW-17264-OE) 341343N0984254W (1.5NM ESE 1O1) 1403FT (305FT AGL) U/S 2404241148-2405240001
4/16/24
2256Z
!MLC 04/194 1O1 OBST TOWER LGT (ASR 1052234) 340107.00N0985532.00W (16.0NM SW 1O1) 1649.6FT (447.8FT AGL) U/S 2404162256-2409202359
3/14/24
1624Z
!MLC 03/149 1O1 OBST TOWER LGT (ASN 2023-ASW-15009-OE) 340252N0985511W (14.4NM SW 1O1) 1529FT (340FT AGL) U/S 2403141624-2406142359
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF GRANDFIELD
PO BOX 360
GRANDFIELD, OK 73546
Phone: 580-479-5215
Manager
BRUCE KORN
223 S. MAIN ST.
GRANDFIELD, OK 73546
Phone: 580-704-0016
FSS
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
NOTAM
MLC
Light Schedule
--
Lights
ACTVT MIRL RY 17/35 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
14
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 08/26
Dimensions
1540 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
90°
270°
Traffic Pattern
Markings
NONE
NONE
Markings Condition
Latitude
34° 14' 37"N
34° 14' 37"N
Longitude
98° 44' 40"W
98° 44' 22"W
Elevation
1,128'
1,128'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 17/35
Dimensions
3100 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
11,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
181°
1°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
34° 14' 37"N
34° 14' 06"N
Longitude
98° 44' 19"W
98° 44' 19"W
Elevation
1,126'
1,128'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
TOWER 1073 FT AGL 12,000 FT SSE OF ARPT.
A110-2
TOWER 1059 FT AGL 8,500 FT SE OF ARPT.
A110-3
FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
GRANDFIELD MUNI (IATA: 1O1) is a public airport located in GRANDFIELD, OK.
