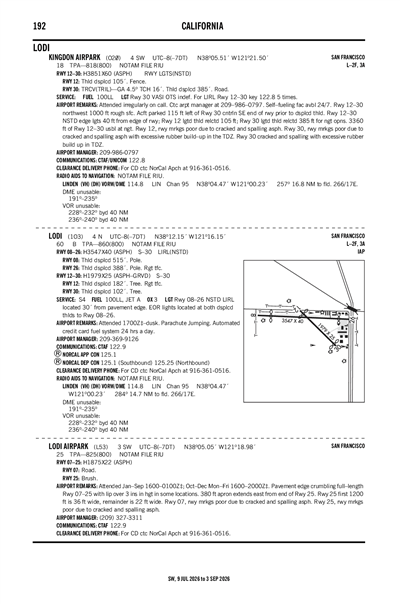

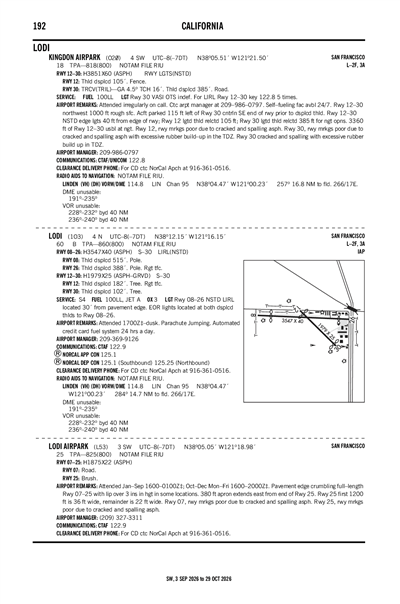

LODI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1O3
Local 1O3
LODI
PublicPUB

4 miles N of LODI, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 12' 09"N 121° 16' 09"W
Elevation
60' MSL
Pattern Alt
860' MSL
Mag Variation
13°E
Declination
16°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
10/29/26-11/26/26
KSCK (19nm) VFR
4:55 AM PST
Mist
Clear
6sm
45°F
45°F
29.90"Hg
Calm
AO2 SLP125 T00720072 $
METAR KSCK 121255Z AUTO 00000KT 6SM BR CLR 07/07 A2990 RMK AO2 SLP125 T00720072 $
+ Add Your Business

1O3 FBOs

Promote Listing
Lodi Airport
Phone: (209) 369-9126
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.49 6.99
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Approach

NORCAL APPROACH 125.1

Departure

NORCAL DEPARTURE 125.1
SOUTHBOUND
NORCAL DEPARTURE 125.25
NORTHBOUND

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSCK (19nm)
Thu, 11/12 3:54 AM PST
Thu, 11/12 4:00 AM PST - Fri, 11/13 4:00 AM PST
VFR
4:00 AM PST - 12:00 PM PST
Mist
Sky Clear
6sm
VRB° 3kts
IFR
Temporary 6:00 AM PST - 8:00 AM PST
Mist
Broken 1,000'
1sm
Calm
VFR
12:00 PM PST - 1:00 AM PST
Sky Clear
6sm
240° 5kts
VFR
1:00 AM PST - 4:00 AM PST
Overcast 10,000'
6sm
160° 4kts
TAF KSCK 121154Z 1212/1312 VRB03KT 6SM BR SKC
   TEMPO 1214/1216 1SM BR BKN010
   FM122000 24005KT P6SM SKC
   FM130900 16004KT P6SM OVC100
1O3
No NOTAM Available
No
0900-DUSK
ROBERT KUPKA
P.O. BOX 10
ACAMPO, CA 95220
Phone: 209-369-9126
ROBERT KUPKA
23987 NORTH HWY 99
ACAMPO, CA 95220
Phone: 209-369-9126
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
Sunset to Sunrise
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 08/26

3547 ft. x 40 ft.
ASPH
Good
NONE
LOW

30,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 92°272°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 12' 11"N 38° 12' 10"N
Longitude 121° 16' 34"W 121° 15' 50"W
Elevation 56' 60'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

1979 ft. x 25 ft.
ASPH
Good
GRVD


30,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Right Left
Markings NRS NRS
Markings Condition FAIR FAIR
Latitude 38° 12' 13"N 38° 11' 59"N
Longitude 121° 16' 13"W 121° 15' 55"W
Elevation 58' 58'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2PARACHUTE DROP ZONE LOCATED APPROXIMATLY 1000' SOUTH OF RWY 08/26.
A110-3FOR CD CTC NORCAL APCH AT 916-361-0516.
A40-08/26RWY 08/26 NSTD LIRL LCTD 30 FT FM PAVEMENT EDGE. END OF RUNWAY LIGHTS LOCATED AT BOTH DISPLACED THRESHOLDS TO RUNWAY 8/26.
A57-08RWY 8 APCH RATIO 17:1 FROM DSPLCD THR.
A57-26APCH RATIO 27:1 FM DSPLCD THR; APCH RATIO FM DSPLCD THR TO +58 FT ANTENNA 1400 FT FM DSPLCD THR 24:1.
A57-30RWY 30 APCH RATIO 20:1 FROM DSPLCD THR.
A58-08RWY 8 35 FT POLE 100 FT FM RSY END 165 FT RIGHT.
A58-12RY 12 +15 FT ROAD 125 FT-150 FT FM RWY END 25 FT RIGHT 75 FT LEFT.
A58-26RY 26 +15' FRONTAGE ROAD 110 FM RY END AND +20' FREEWAY 150' FM RY END. ALL 125' R - 125' L.
A70-100LLAUTOMATED CREDIT CARD FUEL SYSTEM 24 HRS DAY.
E111PREDATES 1958 FA ACT.
LODI (IATA: 1O3) is a public airport located in LODI, CA, US.
