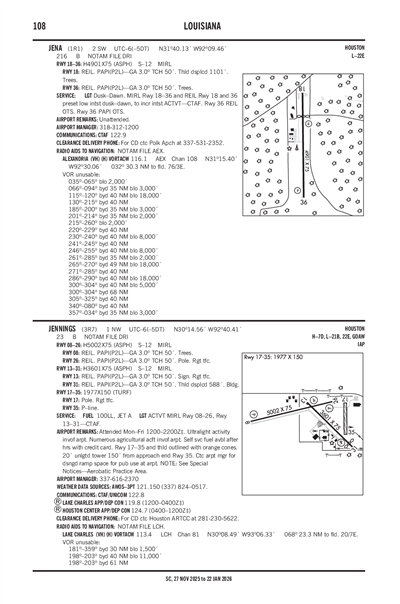

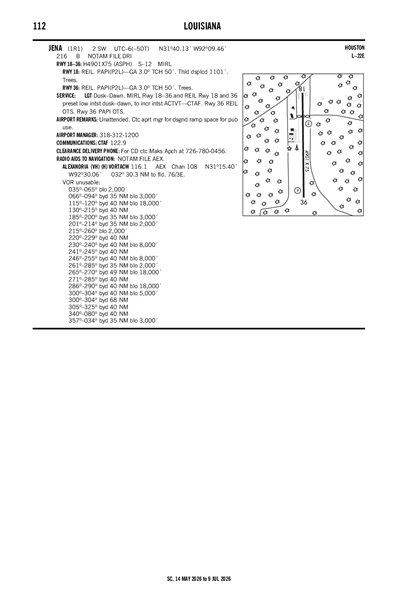

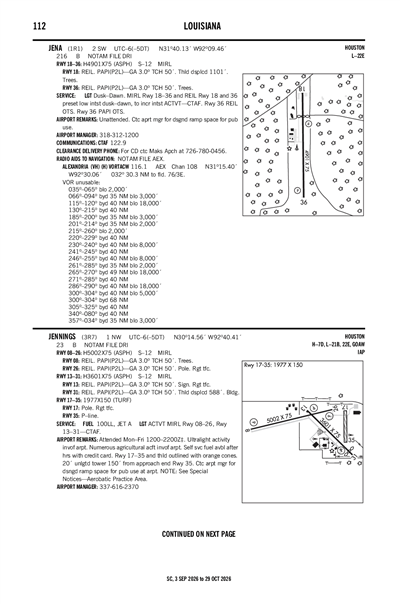

JENA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1R1
Local 1R1
JENA
PublicPUB

2 miles SW of JENA, LA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 40' 08"N 92° 09' 27"W
Elevation
216' MSL
Pattern Alt
1216' MSL
Mag Variation
0°
Declination
4°E
Fuel
None Listed
FSS
DE RIDDER (DRI)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
5/14/26-6/11/26
KAEX (29nm) MVFR
9:39 AM CDT
Light Rain and Mist
Overcast 9,000'
Broken 3,600'
Scattered 1,300'
3sm
75°F
72°F
30.10"Hg
100° 7kts
AO2 RAB1356 P0006 T02390222
SPECI KAEX 041439Z 10007KT 3SM -RA BR SCT013 BKN036 OVC090 24/22 A3010 RMK AO2 RAB1356 P0006 T02390222
+ Add Your Business

1R1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
DUSK-DAWN. MIRL RY 18/36 & REIL RYS 18 & 36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KAEX (29nm)
Thu, 6/4 6:20 AM CDT
Thu, 6/4 7:00 AM CDT - Fri, 6/5 7:00 AM CDT
VFR
7:00 AM CDT - 12:00 PM CDT
Broken 5,000'
Scattered 2,500'
6sm
090° 6kts
VFR
12:00 PM CDT - 9:00 PM CDT
Thunderstorm in vicinity
Broken 5,000'
6sm
110° 10kts
MVFR
1:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain
Broken 2,500'
3sm
VRB° 15kts
Gusts 25kts
VFR
9:00 PM CDT - 7:00 AM CDT
Broken 20,000'
Scattered 3,000'
6sm
130° 5kts
TAF KAEX 041120Z 0412/0512 09006KT P6SM SCT025 BKN050
   FM041700 11010KT P6SM VCTS BKN050CB
   PROB30 0418/0424 VRB15G25KT 3SM TSRA BKN025CB
   FM050200 13005KT P6SM SCT030 BKN200
1R1
EffectiveExpiresCategoryNOTAM
Domestic
5/27/26
1904Z
6/11/26
1804Z
!DRI 05/540 1R1 OBST TOWER LGT (ASR 1253648) 314223.80N0921342.20W (4.3NM WNW 1R1) 455.1FT (350.1FT AGL) U/S 2605271904-2606111804
No
UNATNDD
LA SALLE PARISH ECONOMIC
PO BOX 1288
JENA, LA 71342
Phone: 318-992-2101
JUSTIN PHILLIPS
PO BOX 1889
JENA, LA 71342
Phone: 318-312-1200
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
DRI
--
DUSK-DAWN. MIRL RY 18/36 & REIL RYS 18 & 36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 18/36

4901 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 40' 32"N 31° 39' 43"N
Longitude 92° 09' 28"W 92° 09' 27"W
Elevation 216' 216'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11DEVELOPMENT DISTRICT
A110-1FOR CD CTC MAKS APCH AT 726-780-0456.
A110-2CTC APRT MGR FOR DSGND RAMP SPACE FOR PUB USE.
A43-36RWY36 PAPI OTS
A48-36RWY36 REIL OTS
A57-18APCH SLP TO DTHR IS 19:1.
A81-APTDUSK-DAWN. MIRL RY 18/36 & REIL RYS 18 & 36 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF.
JENA (IATA: 1R1) is a public airport located in JENA, LA, US.
