1S1
Local 1S1
ECKHART INTL
PublicPUB

0 miles W of PORTHILL, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 59' 26"N 116° 30' 07"W
Elevation
1758' MSL
Pattern Alt
2758' MSL
Mag Variation
14°E
Declination
20°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
GREAT FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
9/3/26-10/1/26
CWJR (3nm) VFR
7:00 PM MST
No Clouds
N/A
62°F
49°F
29.90"Hg
320° 12kts
Gusts 21kts
AO1 PK WND 30022/0146 SLP124 T01660092 55001
METAR CWJR 070200Z AUTO 32012G21KT 17/09 RMK AO1 PK WND 30022/0146 SLP124 T01660092 55001
+ Add Your Business

1S1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

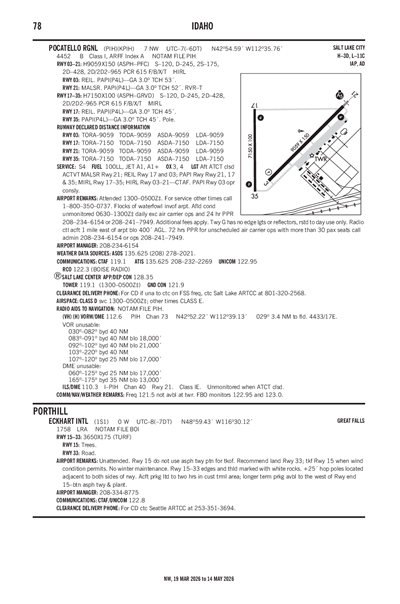

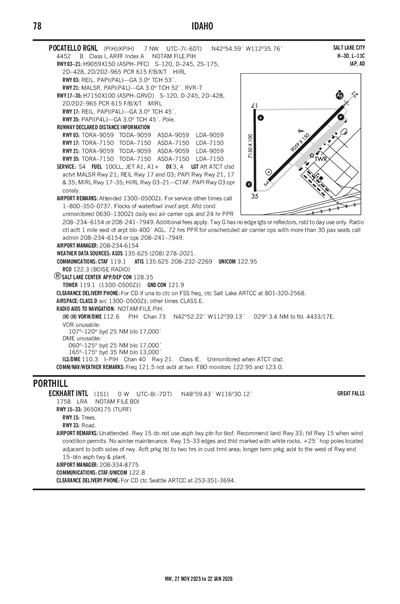

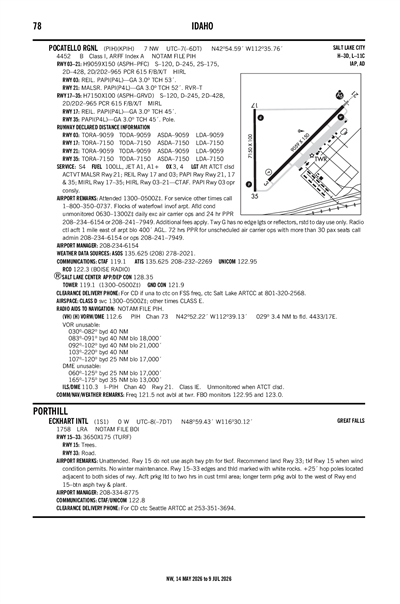

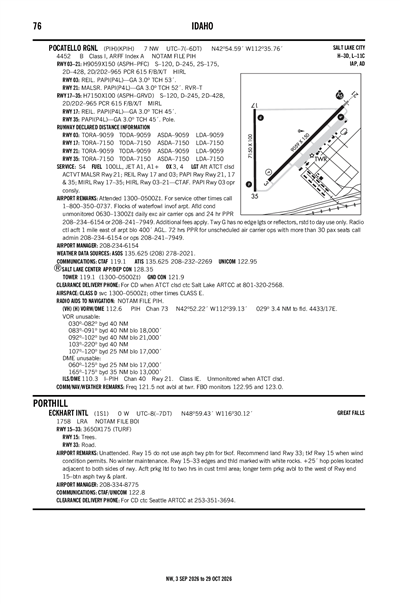

FAA A/FD Pages

Terminal Area Forecast

CYXC (47nm)
Sun, 9/6 6:40 PM MDT
Sun, 9/6 7:00 PM MDT - Mon, 9/7 7:00 AM MDT
VFR
Temporary 7:00 PM MDT - 10:00 PM MDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 6,000'
Few 2,000'
6sm
Calm
VFR
7:00 PM MDT - 10:00 PM MDT
Broken 12,000'
Scattered 6,000'
6sm
020° 5kts
MVFR
10:00 PM MDT - 12:00 AM MDT
Thunderstorm and Rain
Broken 6,000'
5sm
Calm
MVFR
Temporary 10:00 PM MDT - 3:00 AM MDT
Light Showers and Rain
Broken 2,000'
6sm
Calm
VFR
10:00 PM MDT - 3:00 AM MDT
Broken 6,000'
Scattered 2,000'
6sm
290° 5kts
MVFR
Temporary 3:00 AM MDT - 7:00 AM MDT
Overcast 1,500'
Scattered 800'
N/A
Calm
MVFR
3:00 AM MDT - 7:00 AM MDT
Overcast 3,000'
6sm
280° 5kts
TAF CYXC 070040Z 0701/0713 02005KT P6SM SCT060 BKN120
   TEMPO 0701/0704 P6SM -SHRA VCTS FEW020 BKN060CB
   FM070400 29005KT P6SM SCT020 BKN060
   TEMPO 0704/0709 P6SM -SHRA BKN020
   PROB30 0704/0706 5SM TSRA BKN060CB
   FM070900 28005KT P6SM OVC030
   TEMPO 0709/0713 SCT008 OVC015 RMK NXT FCST BY 070700Z
1S1
No NOTAM Available
No
UNATNDD
STATE OF ID, ITD DIV AERO
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
DIVISION ADMIN
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

3650 ft. x 175 ft.
TURF
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 171°351°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 48° 59' 43"N 48° 59' 08"N
Longitude 116° 30' 12"W 116° 30' 03"W
Elevation 1,758' 1,748'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINTENANCE.
A110-2ACFT PRKG LTD TO TWO HRS IN CUST TRML AREA; LONGER TERM PRKG AVBL TO THE WEST OF RWY END 15 - BTN ASPH TWY & ANHEUSER-BUSCH PLANT.
A110-3RWY 15 DO NOT USE ASPH TWY PTN FOR TKOF.
A110-4+25' HOP POLES LOCATED ADJACENT TO BOTH SIDES OF RWY.
A110-7(E84) NON STD - SEMI CIRCLE.
A110-8FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A30-15/33RCMD LAND RWY 33; TKOF RWY 15 WHEN WIND COND PERMITS.
A42-15_MARK15/33 EDGES AND THRS MARKED WITH WHITE ROCKS.
A52-15NMRS OBSTNS IN APCH TO RWY 15: 50 FT - 75 FT + TREES AT 675 FT ON CNTRLN; 40 FT PWR LINE AT 1200 FT ON CNTRLN.
A841/2 SEGMENTED CIRCLE.
ECKHART INTL (IATA: 1S1) is a public airport located in PORTHILL, ID, US.
