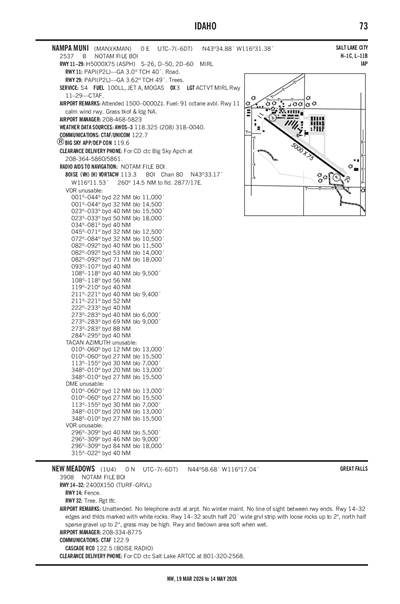

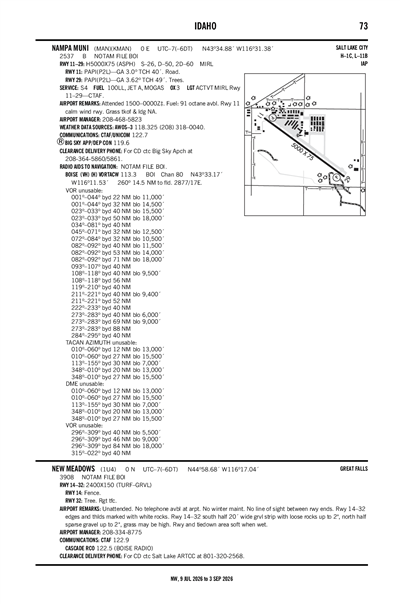

NEW MEADOWS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1U4
Local 1U4
NEW MEADOWS
PublicPUB

0 miles N of NEW MEADOWS, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 58' 41"N 116° 17' 02"W
Elevation
3908' MSL
Pattern Alt
4908' MSL
Mag Variation
13°E
Declination
18°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
9/3/26-10/1/26
KMYL (9nm) VFR
8:51 PM MDT
Light Rain
Overcast 3,900'
9sm
47°F
45°F
30.04"Hg
060° 3kts
AO2 SLP164 P0006 60012 T00830072 50008 $
METAR KMYL 070251Z AUTO 06003KT 9SM -RA OVC039 08/07 A3004 RMK AO2 SLP164 P0006 60012 T00830072 50008 $
+ Add Your Business

1U4 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KMYL (9nm)
Sun, 9/6 5:40 PM MDT
Sun, 9/6 6:00 PM MDT - Mon, 9/7 6:00 PM MDT
MVFR
Temporary 6:00 PM MDT - 10:00 PM MDT
Showers and Rain and Mist
Overcast 4,000'
Scattered 2,000'
3sm
VRB° 15kts
VFR
6:00 PM MDT - 10:00 PM MDT
Light Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 6,000'
Scattered 4,000'
6sm
VRB° 6kts
MVFR
10:00 PM MDT - 7:00 AM MDT
Light Showers and Rain and Mist
Overcast 2,000'
Scattered 1,000'
6sm
VRB° 5kts
MVFR
Temporary 12:00 AM MDT - 4:00 AM MDT
Showers and Rain and Mist
Overcast 1,500'
Scattered 700'
3sm
Calm
MVFR
7:00 AM MDT - 12:00 PM MDT
Mist and Showers in vicinity
Overcast 2,000'
Scattered 1,500'
6sm
VRB° 4kts
VFR
12:00 PM MDT - 6:00 PM MDT
Overcast 4,000'
6sm
200° 5kts
TAF KMYL 062340Z 0700/0724 VRB06KT 6SM -SHRA BR VCTS SCT040 OVC060CB
   TEMPO 0700/0704 VRB15KT 3SM SHRA BR SCT020 OVC040
   FM070400 VRB05KT 6SM -SHRA BR SCT010 OVC020
   TEMPO 0706/0710 3SM SHRA BR SCT007 OVC015
   FM071300 VRB04KT 6SM BR VCSH SCT015 OVC020
   FM071800 20005KT P6SM OVC040
1U4
No NOTAM Available
No
UNATNDD
STATE OF IDAHO - ITD/DIV OF AERO
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
IDAHO DIV OF AERONAUTICS
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 14/32

2400 ft. x 150 ft.
TURF GRVL
Fair
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 155°335°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 44° 58' 52"N 44° 58' 30"N
Longitude 116° 17' 09"W 116° 16' 55"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO WINTER MAINTENANCE.
A110-2NO LINE OF SIGHT BTN RWY ENDS.
A110-3FENCE WARNING PANELS INSTALLED ON FENCE, APPROACH TO RY 14.
A110-4NO TELEPHONE AVBL AT ARPT.
A110-5FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A33-14/32_SURFRWY 14/32 SOUTH HALF 20 FT WIDE GRAVEL STRIP WITH LOOSE ROCKS UP TO 2 INCHES; NORTH HALF SPARSE GRAVEL UP TO 2 INCHES; GRASS MAY BE HIGH. RUNWAY AND TIE DOWN AREA SOFT WHEN WET.
A42-14_MARK14/32 EDGES & THRS MKD WITH WHITE ROCKS.
A52-14+4 FT FENCE AT 45 FT ON CTRLN.
A52-32+17 FT PLINE 400 FT 75 FT R; +21 FT PLINE AT 500 FT ON CNTRLN.
E111ESTABD PRIOR TO 15 MAY 1959.
NEW MEADOWS (IATA: 1U4) is a public airport located in NEW MEADOWS, ID, US.
