1V8
Local 1V8
LEACH
PublicPUB

4 miles NE of CENTER, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 47' 06"N 106° 02' 49"W
Elevation
7598' MSL
Pattern Alt
8598' MSL
Mag Variation
8°E
Declination
12°E
Fuel
100LL
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
5/14/26-6/11/26
KRCV (15nm) VFR
11:55 AM MDT
Clear
10sm
71°F
19°F
30.10"Hg
120° 9kts
AO2 T02191072 10220 20067
METAR KRCV 151755Z AUTO 12009KT 10SM CLR 22/M07 A3010 RMK AO2 T02191072 10220 20067
+ Add Your Business

1V8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT LIRL RY 12/30 - CTAF.
UNICOM 122.8

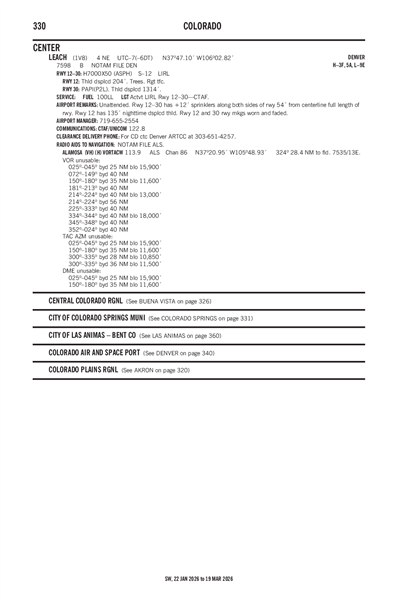

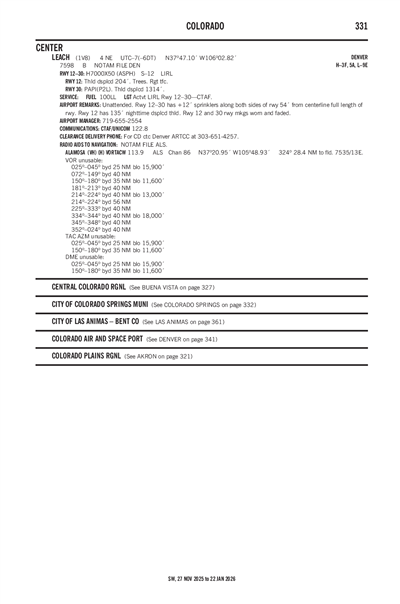

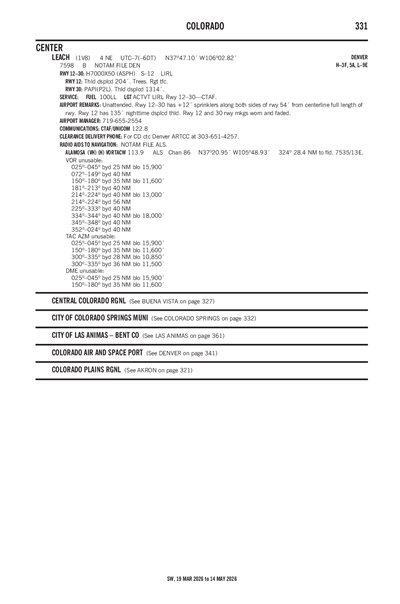

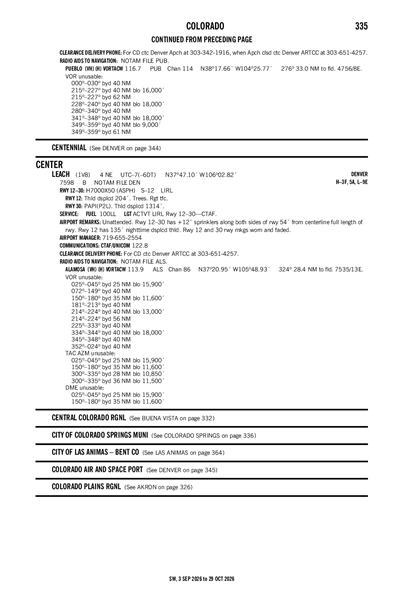

FAA A/FD Pages

Terminal Area Forecast

KALS (23nm)
Fri, 5/15 11:24 AM MDT
Fri, 5/15 12:00 PM MDT - Sat, 5/16 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Sky Clear
6sm
VRB° 5kts
VFR
2:00 PM MDT - 5:00 PM MDT
Few 10,000'
6sm
220° 8kts
VFR
5:00 PM MDT - 9:00 PM MDT
Scattered 7,000'
6sm
300° 12kts
VFR
6:00 PM MDT - 9:00 PM MDT
Light Showers and Rain
Broken 7,000'
N/A
VRB° 15kts
Gusts 28kts
VFR
9:00 PM MDT - 11:00 PM MDT
Few 10,000'
6sm
270° 7kts
VFR
11:00 PM MDT - 12:00 PM MDT
Sky Clear
6sm
VRB° 4kts
TAF KALS 151724Z 1518/1618 VRB05KT P6SM SKC
   FM152000 22008KT P6SM FEW100
   FM152300 30012KT P6SM SCT070
   PROB30 1600/1603 VRB15G28KT -SHRA BKN070
   FM160300 27007KT P6SM FEW100
   FM160500 VRB04KT P6SM SKC
1V8
EffectiveExpiresCategoryNOTAM
Domestic
5/12/26
2017Z
6/12/26
2359Z
!DEN 05/319 1V8 AD AP FUEL NOT AVBL 2605122017-2606122359
No
UNATNDD
COUNTY OF SAGUACHE
LAND USE ADMINISTRATOR
SAGUACHE, CO 81149
Phone: 719-655-2321
WENDI MAEZ
P.O. BOX 476
SAGUACHE, CO 81149
Phone: 719-655-2554
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT LIRL RY 12/30 - CTAF.
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

7000 ft. x 50 ft.
ASPH
Fair
NONE
LOW

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 136°316°
Traffic Pattern Right Left
Markings NSTD BSC
Markings Condition POOR POOR
Latitude 37° 47' 30"N 37° 46' 41"N
Longitude 106° 03' 19"W 106° 02' 18"W
Elevation 7,598' 7,598'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 12/30 HAS +12 FT SPRINKLERS ALONG BOTH SIDES OF RY 54 FT FROM CNTRLN FULL LENGTH OF RY.
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
A42-12_CONDRY MKGS WORN & FADED.
A42-30_CONDRY MKGS WORN & FADED.
A51-12RY 12 HAS 135 FT NIGHTTIME DSPLCD THLD.
A57-12RY 12 APCH SLOPE 20:1 TO DSPLCD THLD.
A57-30RY 30 APCH SLOPE 21:1 TO DSPLCD THLD.
A58-12RY 12 HAS -5 FT DITCH 120 FT FROM PAVEMENT END, +2 FT BERM 126 FT FROM PAVEMENT END.
A58-30RY 30 HAS +60 FT POWER LINE & +4 FT SNOW FENCE AT PAVEMENT END.
A81-APTACTVT LIRL RY 12/30 - CTAF.
E111OBSTN REMOVAL OR THR DSPLCMT.
LEACH (IATA: 1V8) is a public airport located in CENTER, CO, US.
