iFlightPlanner



...

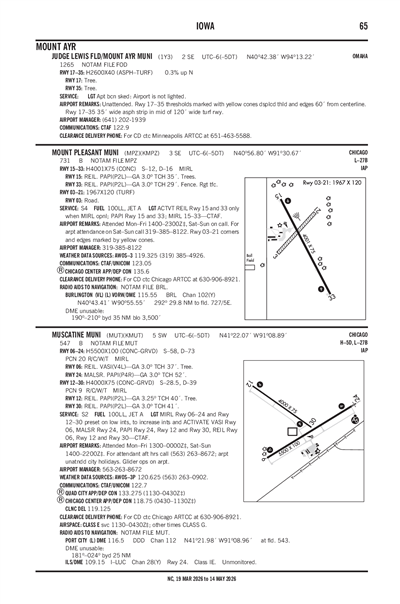

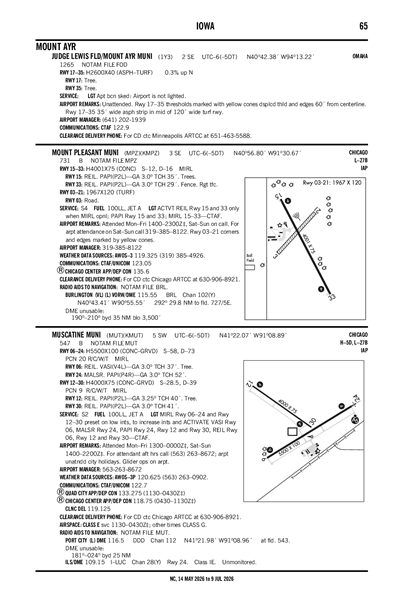

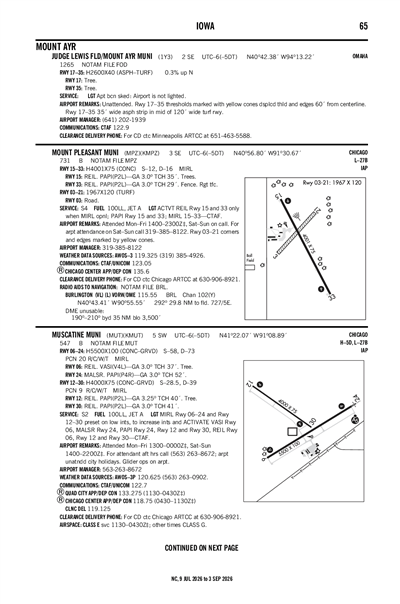

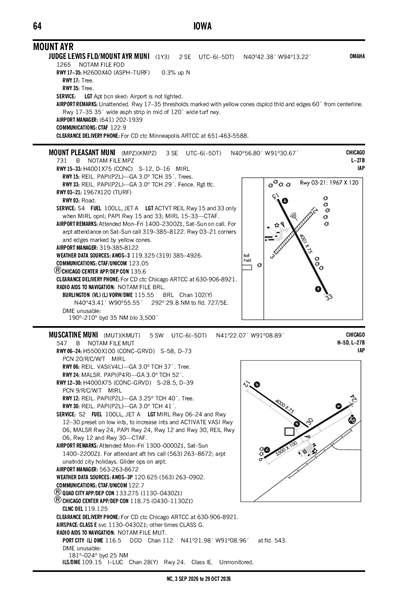

JUDGE LEWIS FLD/MOUNT AYR MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1Y3
Local 1Y3
JUDGE LEWIS FLD/MOUNT AYR MUNI
PublicPUB

2 miles SE of MOUNT AYR, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 42' 23"N 94° 13' 13"W
Elevation
1265' MSL
Pattern Alt
2265' MSL
Mag Variation
1°E
Declination
5°E
Fuel
None Listed
FSS
FORT DODGE (FOD)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
9/3/26-10/1/26
KLWD (15nm) LIFR
6:53 AM CDT
Overcast 300'
9sm
61°F
60°F
30.06"Hg
100° 5kts
AO2 SLP177 60001 70049 T01610156 10161 20161 53009
METAR KLWD 271153Z AUTO 10005KT 9SM OVC003 16/16 A3006 RMK AO2 SLP177 60001 70049 T01610156 10161 20161 53009
+ Add Your Business

1Y3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KDSM (56nm)
Sun, 9/27 6:20 AM CDT
Sun, 9/27 7:00 AM CDT - Mon, 9/28 7:00 AM CDT
LIFR
Temporary 7:00 AM CDT - 8:00 AM CDT
Light Showers and Rain and Mist
Overcast 300'
4sm
Calm
IFR
7:00 AM CDT - 10:00 AM CDT
Light Showers and Rain and Mist
Broken 900'
Scattered 400'
6sm
120° 4kts
IFR
10:00 AM CDT - 12:00 PM CDT
Light Drizzle
Overcast 900'
6sm
110° 5kts
MVFR
12:00 PM CDT - 3:00 PM CDT
Overcast 1,200'
6sm
VRB° 4kts
MVFR
3:00 PM CDT - 9:00 PM CDT
Broken 2,200'
Scattered 1,400'
6sm
100° 5kts
VFR
9:00 PM CDT - 7:00 AM CDT
Scattered 2,500'
6sm
VRB° 2kts
TAF KDSM 271120Z 2712/2812 12004KT 6SM -SHRA BR SCT004 BKN009
   TEMPO 2712/2713 4SM -SHRA BR OVC003
   FM271500 11005KT 6SM -DZ OVC009
   FM271700 VRB04KT P6SM OVC012
   FM272000 10005KT P6SM SCT014 BKN022
   FM280200 VRB02KT P6SM SCT025
1Y3
EffectiveExpiresCategoryNOTAM
Domestic
8/17/26
0218Z
10/1/26
0217Z
!FOD 08/171 1Y3 OBST TOWER LGT (ASR 1200247) 403502.90N0940641.80W (8.8NM SE 1Y3) 1554.8FT (404.9FT AGL) U/S 2608170218-2610010217
No
UNATNDD
CITY OF MOUNT AYR
CITY HALL
MOUNT AYR, IA 50854
Phone: (641) 202-1939
MIKE WARIN
705 SOUTH TAYLOR STREET
MOUNT AYR, IA 50854
Phone: (641) 202-1939
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
FOD
--
AIRPORT IS NOT LIGHTED
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 17/35

2600 ft. x 40 ft.
ASPH TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 42' 36"N 40° 42' 10"N
Longitude 94° 13' 14"W 94° 13' 11"W
Elevation 1,226' 1,217'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A33-17/35_SURF35 FT WIDE ASPH STRIP IN MID OF 120 FT WIDE TURF RWY.
A42-17_MARK17/35 THLDS MARKED WITH YELLOW CONES; DSPLCD THLD & EDGES 60 FT FM CNTRLN.
A81-BCNAIRPORT IS NOT LIGHTED
JUDGE LEWIS FLD/MOUNT AYR MUNI (IATA: 1Y3) is a public airport located in MOUNT AYR, IA, US.
