iFlightPlanner



...

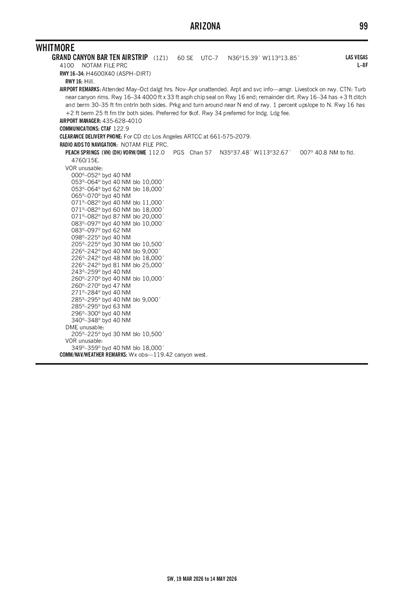

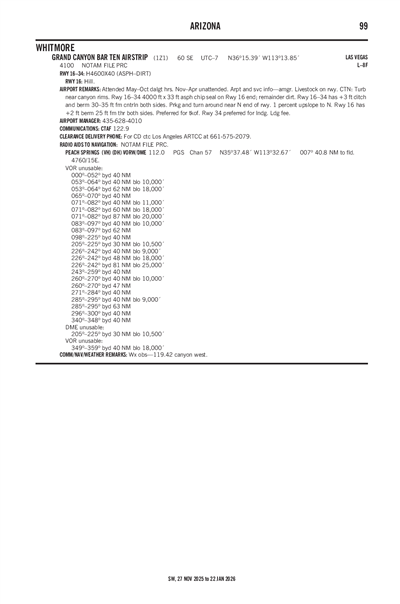

GRAND CANYON BAR TEN AIRSTRIP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1Z1
Local 1Z1
GRAND CANYON BAR TEN AIRSTRIP
PublicPUB

60 miles SE of WHITMORE, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 15' 23"N 113° 13' 51"W
Elevation
4100' MSL
Pattern Alt
5100' MSL
Mag Variation
11°E
Declination
14°E
Fuel
None Listed
FSS
PRESCOTT (PRC)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
9/3/26-10/1/26
KAZC (44nm) VFR
6:15 AM MST
Scattered 9,000'
10sm
50°F
41°F
30.15"Hg
120° 5kts
AO2
METAR KAZC 271315Z AUTO 12005KT 10SM SCT090 10/05 A3015 RMK AO2
+ Add Your Business

1Z1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSGU (49nm)
Sun, 9/27 5:30 AM MDT
Sun, 9/27 6:00 AM MDT - Mon, 9/28 6:00 AM MDT
VFR
6:00 AM MDT - 9:00 AM MDT
Scattered 20,000'
6sm
120° 8kts
VFR
9:00 AM MDT - 2:00 PM MDT
Scattered 20,000'
6sm
VRB° 4kts
VFR
2:00 PM MDT - 10:00 PM MDT
Broken 15,000'
Scattered 10,000'
6sm
220° 10kts
VFR
10:00 PM MDT - 6:00 AM MDT
Broken 12,000'
Scattered 6,000'
6sm
120° 10kts
TAF KSGU 271130Z 2712/2812 12008KT P6SM SCT200
   FM271500 VRB04KT P6SM SCT200
   FM272000 22010KT P6SM SCT100 BKN150
   FM280400 12010KT P6SM SCT060 BKN120
1Z1
No NOTAM Available
No
MAY-OCT DALGT
NOV-APR UNATNDD
GRAND CANYON BAR TEN RANCH
PO BOX 910088
ST GEORGE, UT 84791
Phone: 435-628-4010
GAVIN HEATON
PO BOX 910088
ST GEORGE, UT 84791
Phone: 435-628-4010
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
--
N/A
Yes
No
Yes
None
No
None
None
None
None
None

Runway 16/34

4600 ft. x 40 ft.
ASPH DIRT
Good
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 176°356°
Traffic Pattern
Markings
Markings Condition
Latitude 36° 15' 46"N 36° 15' 01"N
Longitude 113° 13' 53"W 113° 13' 49"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1LIVESTOCK ON RWY.
A110-10ARPT & SVC INFO - AMGR
A110-6FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-8WX OBS - 119.42 CANYON WEST.
A110-9CTN: TURB NEAR CANYON RIMS.
A30-16/34+3 FT DITCH & BERM 30-35 FT FM CNTRLN BOTH SIDES. PRKG & TURN AROUND NEAR N END OF RWY. 1 PERCENT UPSLOPE TO N.
A30A-16+2 FT BERM 25 FT FM THR BOTH SIDES. PREFERRED FOR TKOF.
A30A-34PREFERRED FOR LNDG.
A31-16/344000 FT BY 33 FT ASPH CHIP SEAL RWY 16 END; REMAINDER DIRT.
A83WINDSOCK ONLY
E111VFR USE ONLY.
GRAND CANYON BAR TEN AIRSTRIP (IATA: 1Z1) is a public airport located in WHITMORE, AZ, US.
