KINGSTON-ULSTER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

20N
Local 20N
KINGSTON-ULSTER
PublicPUB

4 miles N of KINGSTON, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 59' 07"N 73° 57' 52"W
Elevation
147' MSL
Pattern Alt
1147' MSL
Mag Variation
13°W
Declination
13°W
Fuel
JET A, 100LL
FSS
NEW YORK (ISP)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
4/16/26-5/14/26
KPOU (22nm) VFR
7:53 PM EDT
Clear
10sm
58°F
20°F
29.83"Hg
050° 6kts
AO2 SLP098 T01441067 10178 20144 50008
METAR KPOU 242353Z 05006KT 10SM CLR 14/M07 A2983 RMK AO2 SLP098 T01441067 10178 20144 50008
+ Add Your Business

20N FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8
AUTOMATED UNICOM.

Approach

NEW YORK APPROACH 132.75

Departure

NEW YORK DEPARTURE 132.75

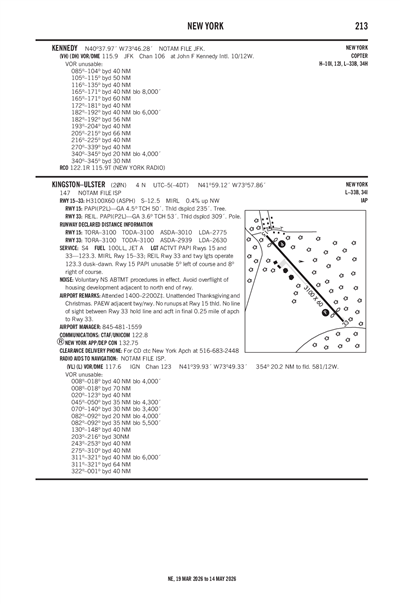

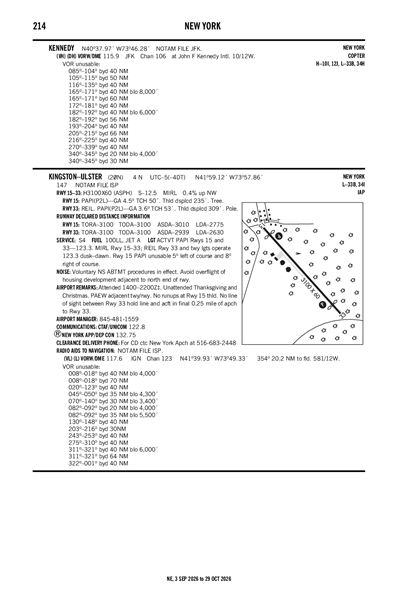

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPOU (22nm)
Fri, 4/24 7:25 PM EDT
Fri, 4/24 8:00 PM EDT - Sat, 4/25 8:00 PM EDT
VFR
8:00 PM EDT - 10:00 AM EDT
Scattered 25,000'
6sm
030° 4kts
VFR
10:00 AM EDT - 1:00 PM EDT
Overcast 12,000'
6sm
160° 8kts
VFR
1:00 PM EDT - 3:00 PM EDT
Light Rain and Mist
Overcast 6,000'
Scattered 1,500'
6sm
140° 10kts
MVFR
3:00 PM EDT - 8:00 PM EDT
Light Rain and Mist
Overcast 4,000'
Broken 1,500'
4sm
120° 6kts
IFR
5:00 PM EDT - 8:00 PM EDT
Rain and Mist
Overcast 1,200'
Broken 800'
2sm
Calm
TAF KPOU 242325Z 2500/2524 03004KT P6SM SCT250
   FM251400 16008KT P6SM OVC120
   FM251700 14010KT 6SM -RA BR SCT015 OVC060
   FM251900 12006KT 4SM -RA BR BKN015 OVC040
   PROB30 2521/2524 2SM RA BR BKN008 OVC012
20N
EffectiveExpiresCategoryNOTAM
FDC
8/18/25
1832Z
!FDC 5/9617 20N ODP KINGSTON-ULSTER, KINGSTON, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 15, 500-2 3/4 OR STANDARD WITH MINIMUM CLIMB OF 256 FT/NM TO 700.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508181832-2708181832EST
No
JAN-DEC 0900-1700
UNATNDD THANKSGIVING AND CHRISTMAS.
KINGSTON-ULSTER ARPT INC.
1161 FLATBUSH RD
KINGSTON, NY 12401
Phone: 845-336-5926
TODD COGGESHALL
1161 FLATBUSH AVE
KINGSTON, NY 12401
Phone: 845-481-1559
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
ISP
--
ACTVT PAPI RYS 15 & 33 - 123.3. MIRL RY 15/33; REIL RY 33 & TWY LGTS OPERATE 123.3 DUSK-DAWN.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 15/33

3100 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 140°320°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 59' 19"N 41° 58' 55"N
Longitude 73° 58' 05"W 73° 57' 38"W
Elevation 147' 133'
Threshold Crossing Height 50 ft. AGL 53 ft. AGL
Visual Glide Path Angle 4.5° 3.6°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-10NO LINE OF SIGHT BTN RY 33 HOLD LINE & ACFT IN FINAL .25 MI OF APCH TO RY 33.
A110-11RENTAL CAR AVBL - 845-338-6929.
A110-13FOR CD CTC NEW YORK APCH AT 516-683-2448
A110-3PAEW ADJACENT TWY/RWY.
A110-5VOLUNTARY NOISE ABTMT PROC IN EFCT. AVOID OVERFLIGHT OF HOUSING DEVELOPMENT ADJ TO N END OF RWY.
A110-9NO RUNUPS AT RY 15 THLD.
A17-D2UNATNDD THANKSGIVING AND CHRISTMAS.
A43-15RY 15 PAPI UNUSABLE 5 DEGS LEFT OF COURSE & 8 DEGS RIGHT OF COURSE.
A57-15CTLNG OBSTN EXCEEDS A 45 DEG SLP.
A57-33RY 33 HAS +73 FT TREES, 742 FT FM RY, 85 FT LT, CLNC SLOPE 14:1 BASED ON DSPLCD THLD.
A58-15RWY 15: 25 FT LIGHT POLE, 136 FT FM RWY 116 FT LEFT. 12 FENCE, 125 FT FM RWY LEFT & RIGHT. 61 FT TREE 126 FT FM RWY 181 FT LEFT. 15 FT ROAD, 135 FT FM RWY LEFT & RIGHT.
A58-33RWY 33: 7 FT FENCE, 164 FT FM RWY; 8 FT SHED, 152 FT FM RWY 126 FT LEFT.
A81-APTACTVT PAPI RYS 15 & 33 - 123.3. MIRL RY 15/33; REIL RY 33 & TWY LGTS OPERATE 123.3 DUSK-DAWN.
A82AUTOMATED UNICOM.
E111EXISTED PRIOR TO 1959.
KINGSTON-ULSTER (IATA: 20N) is a public airport located in KINGSTON, NY, US.
