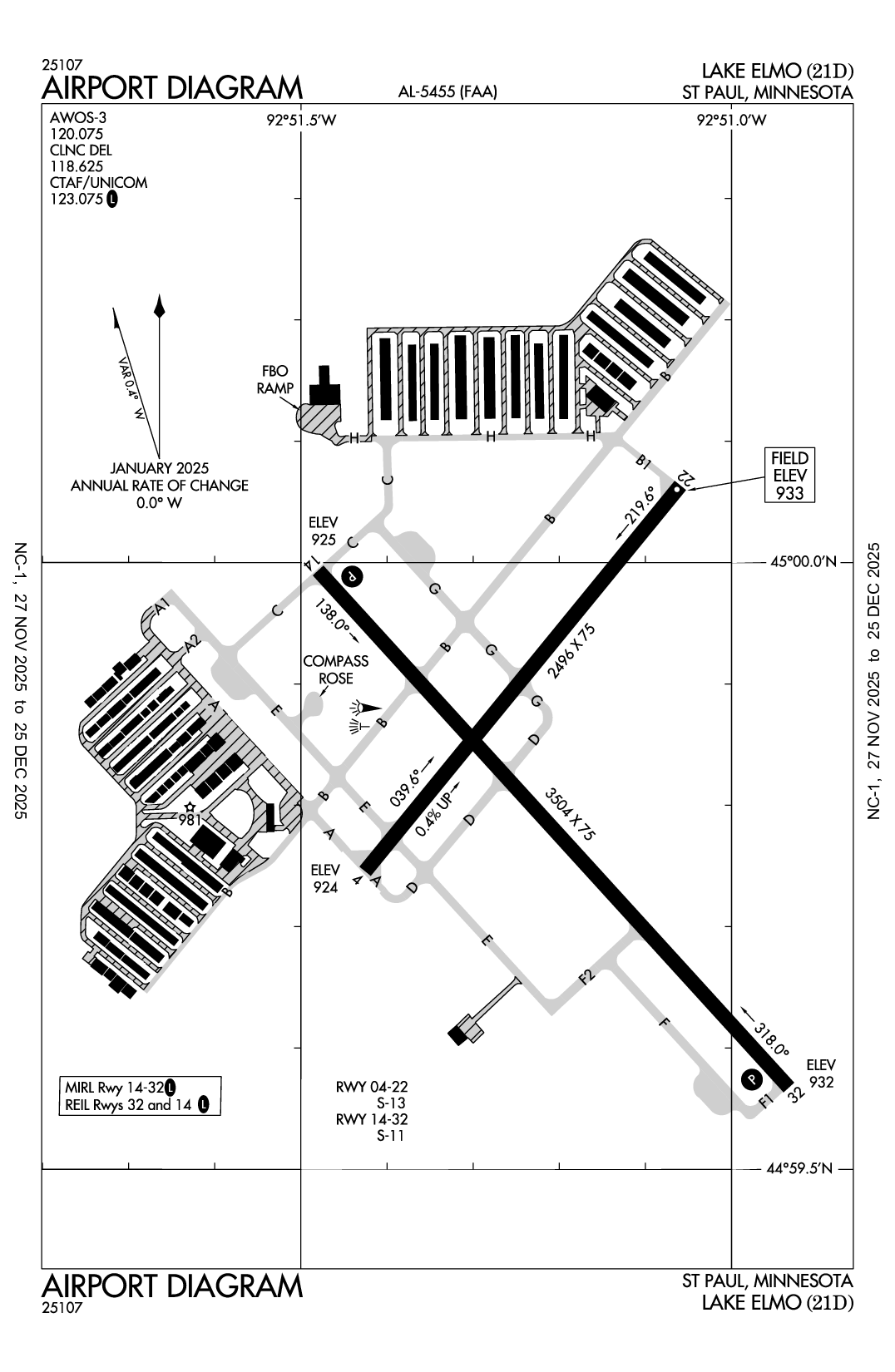

LAKE ELMO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

21D
LAKE ELMO
PublicPUB

9 miles E of ST PAUL, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 59' 51"N 92° 51' 20"W
933' MSL
1933' MSL
01E
Jet A, 100LL
PRINCETON (PNM)
GREEN BAY
MINNEAPOLIS (ZMP)
5/18/23-6/15/23
K21D VFR
10:55 PM CDT
Clear
10sm
66°F
64°F
30.08"Hg
Calm
AO2
K21D 030355Z AUTO 00000KT 10SM CLR 19/18 A3008 RMK AO2
List Your Business

21D FBOs, Flight Schools and Ground Support

Promote Listing
Lake Elmo Aero
Freq: 122.8
Phone: (651) 777-1399
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/25
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.75
Full Serve 4.45

21D Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

21D Hotels

No hotels are listed for this airport.

21D Restaurants

No restaurants are listed for this airport.

21D Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
651-779-5949
 120.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KRNH (17nm)
Fri, 6/2 6:24 PM CDT
Fri, 6/2 7:00 PM CDT - Sat, 6/3 7:00 PM CDT
VFR
7:00 PM CDT - 8:00 PM CDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 6,000'
Scattered 3,000'
> 6sm
080° 8kts
VFR
8:00 PM CDT - 7:00 PM CDT
Scattered 10,000'
> 6sm
100° 4kts
KRNH 022324Z 0300/0324 08008KT P6SM -SHRA VCTS SCT030 BKN060CB
   FM030100 10004KT P6SM SCT100
21D
Domestic
6/2/231100Z !21D 05/007 21D TWY C BTN TWY A AND RWY 14/32 CLSD 2306021100-2306302300
6/2/231100Z !21D 05/006 21D TWY A2 CLSD 2306021100-2306302300
5/26/231739Z !21D 05/004 21D TWY A1 CLSD 2305261739-2306302300
4/13/231500Z !21D 04/026 21D AD AP ALL SFC WIP CONST 2304131500-2308312300
3/31/230640Z !21D 03/106 21D OBST TOWER LGT (ASR 1236365) 445236.20N0923652.00W (12.6NM SE 21D) 1230.0FT (190.0FT AGL) U/S 2303310640-2306290400
10/24/221949Z !21D 10/015 21D APRON COMPASS ROSE RAMP CLSD 2210241949-2310312300
7/20/222255Z !21D 07/021 21D RWY 14/32 CHANGED TO 3500FT X 75FT 2207202255-PERM
1/19/220501Z !21D 01/033 21D AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
2/28/232015Z !FDC 3/0856 21D ODP LAKE ELMO, ST PAUL, MN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
TAKEOFF RWYS 14/32 NA. 2302282015-2502282014EST
7/20/221323Z !FDC 2/5754 21D IAP LAKE ELMO, ST PAUL, MN.
RNAV (GPS) RWY 32, AMDT 1B...
PROCEDURE NA.
2207201323-2407201323EST
No
APR-OCT 0700-1900
NOV-MAR 0700-1700
METROPOLITAN AIRPORT CMSN
6040 28TH AVE A
MINNEAPOLIS, MN 55450-2799
Phone: 612-726-8100
PHILIP TIEDEMAN
6040 28TH AVE S
MINNEAPOLIS, MN 55450-2799
Phone: 763-717-0001
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
21D
--
ACTVT OR INCR INTST REIL RWY 14 & 32; PAPI RWY 32; MIRL RWY 14/32 - CTAF. MIRL RWY 14/32 PRESET LOW INTST.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
149
4
0
3
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

2496 ft. x 75 ft.
ASPH
Fair



13,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 39°219°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 44° 59' 45"N 45° 00' 04"N
Longitude 92° 51' 25"W 92° 51' 03"W
Elevation 924' 933'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

2849 ft. x 75 ft.
ASPH
Good

MED

11,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 137°317°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 44° 59' 58"N 44° 59' 38"N
Longitude 92° 51' 39"W 92° 51' 12"W
Elevation 923' 926'
Threshold Crossing Height -- 26 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ULTRALIGHT OPS PROHIBITED.
A110-2VOLUNTARY NOISE ABATEMENT PROCS AVBL AT WWW.MACNOISE.COM/PILOTS.
A110-3DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS APCH AT 612-726-9086.
LAKE ELMO (IATA: 21D) is a public airport located in ST PAUL, MN.
