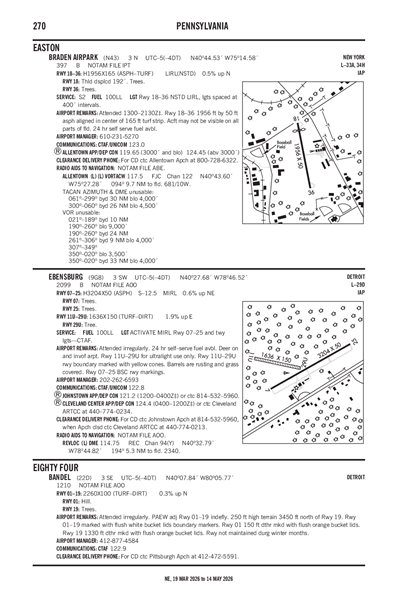

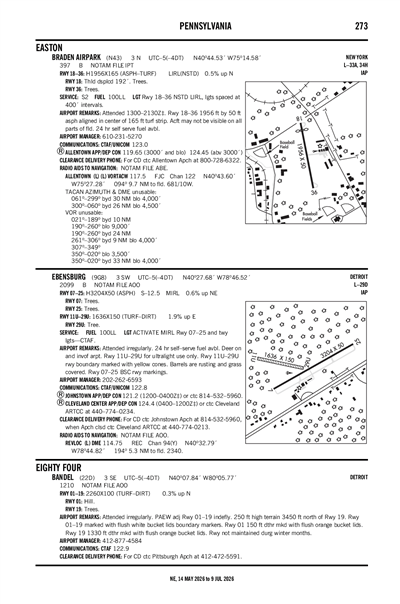

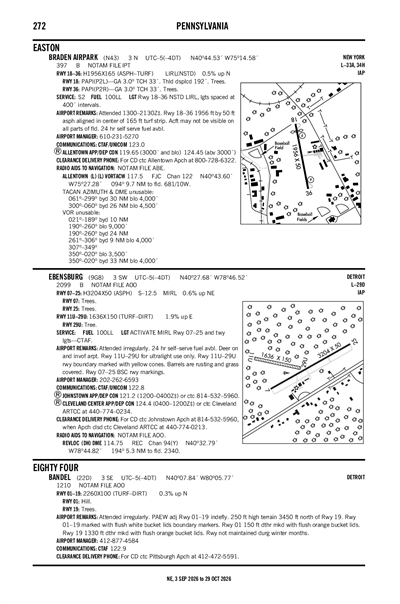

BANDEL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

22D
Local 22D
BANDEL
PublicPUB

3 miles SE of EIGHTY FOUR, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 07' 50"N 80° 05' 46"W
Elevation
1210' MSL
Pattern Alt
2210' MSL
Mag Variation
9°W
Declination
7°W
Fuel
None Listed
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
6/11/26-7/9/26
KAFJ (9nm) VFR
7:56 PM EDT
Light Rain
Overcast 10,000'
Few 4,300'
10sm
69°F
65°F
30.03"Hg
220° 7kts
AO2 SLP163 P0001 60002 T02060183 10267 20200 53006 $
METAR KAFJ 252356Z AUTO 22007KT 10SM -RA FEW043 OVC100 21/18 A3003 RMK AO2 SLP163 P0001 60002 T02060183 10267 20200 53006 $
+ Add Your Business

22D FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KAGC (16nm)
Thu, 6/25 7:20 PM EDT
Thu, 6/25 8:00 PM EDT - Fri, 6/26 8:00 PM EDT
VFR
8:00 PM EDT - 10:00 AM EDT
Broken 7,000'
Few 4,000'
6sm
220° 7kts
VFR
Temporary 9:00 PM EDT - 12:00 AM EDT
Light Showers and Rain
Broken 4,000'
6sm
Calm
MVFR
10:00 AM EDT - 2:00 PM EDT
Broken 2,000'
6sm
260° 5kts
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 5,000'
6sm
260° 7kts
TAF KAGC 252320Z 2600/2624 22007KT P6SM FEW040 BKN070
   TEMPO 2601/2604 6SM -SHRA BKN040
   FM261400 26005KT P6SM BKN020
   FM261800 26007KT P6SM BKN050
22D
EffectiveExpiresCategoryNOTAM
Domestic
6/24/26
1034Z
8/8/26
1033Z
!AOO 06/335 22D OBST TOWER LGT (ASR 1228103) 400739.10N0800938.40W (3.0NM W 22D) 1683.1FT (310.0FT AGL) U/S 2606241034-2608081033
6/14/26
2259Z
9/12/26
2259Z
!AOO 06/215 22D OBST TOWER LGT (ASR 1026623) 401016.90N0800614.50W (2.5NM N 22D) 1621.1FT (290.0FT AGL) U/S 2606142259-2609122259
6/12/26
0137Z
9/10/26
0137Z
!AOO 06/181 22D OBST TOWER LGT (ASR 1046120) 400518.20N0800413.30W (2.8NM SSE 22D) 1785.1FT (325.1FT AGL) U/S 2606120137-2609100137
6/10/26
0821Z
9/8/26
0821Z
!AOO 06/141 22D OBST TOWER LGT (ASR 1030185) 401058.20N0800632.00W (3.2NM N 22D) 1578.7FT (256.9FT AGL) U/S 2606100821-2609080821
6/9/26
1858Z
12/9/26
2359Z
!AOO 06/132 22D OBST TOWER LGT (ASR 1027232) 400232.00N0795419.00W (10.2NM ESE 22D) 1326.1FT (226.0FT AGL) U/S 2606091858-2612092359
6/6/26
1913Z
9/4/26
1913Z
!AOO 06/071 22D OBST TOWER LGT (ASR 1026007) 400816.00N0795728.00W (6.3NM E 22D) 1799.5FT (424.9FT AGL) U/S 2606061913-2609041913
6/6/26
0212Z
7/21/26
0211Z
!AOO 06/062 22D OBST TOWER LGT (ASN 2025-AEA-8314-OE) 400345N0800142W (5.1NM SE 22D) 1496FT (310FT AGL) U/S 2606060212-2607210211
5/28/26
0555Z
8/26/26
0400Z
!AOO 05/229 22D OBST TOWER LGT (ASR 1039281) 400839.70N0801056.80W (4.0NM WNW 22D) 1710.0FT (316.9FT AGL) U/S 2605280555-2608260400
5/28/26
0443Z
8/26/26
0400Z
!AOO 05/227 22D OBST TOWER LGT (ASR 1008478) 400432.50N0801122.70W (5.4NM SW 22D) 1599.1FT (312.0FT AGL) U/S 2605280443-2608260400
4/15/26
0030Z
7/13/26
0400Z
!AOO 04/094 22D OBST TOWER LGT (ASR 1062179) 400921.60N0800241.00W (2.8NM ENE 22D) 1430.1FT (325.1FT AGL) U/S 2604150030-2607130400
No
IREG
BRUCE BANDEL
284 SHIPE RUN RD
WASHINGTON, PA 15301
Phone: 724-945-6677
BRUCE BANDEL
284 SHIPE RUN RD
WASHINGTON, PA 15301
Phone: 412-877-4584
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

2260 ft. x 100 ft.
TURF DIRT
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 358°178°
Traffic Pattern
Markings NSTD NSTD
Markings Condition GOOD FAIR
Latitude 40° 07' 39"N 40° 08' 01"N
Longitude 80° 05' 46"W 80° 05' 47"W
Elevation 1,171' 1,177'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3PAEW ADJ RWY 01/19 INDEFLY.
A110-4250 FT HIGH TERRAIN 3450 FT NORTH OF RWY 19.
A110-5RWY NOT MAINTAINED DURG WINTER MONTHS.
A110-6FOR CD CTC PITTSBURGH APCH AT 412-472-5591.
A42-01_COND150 FT DTHR MKD WITH FLUSH ORANGE BUCKET LIDS.
A42-01_MARKMARKED WITH FLUSH WHITE BUCKET LIDS BOUNDARY MARKERS.
A42-19_COND1330 FT DTHR MKD WITH FLUSH ORANGE BUCKET LIDS.
A42-19_MARKMARKED WITH FLUSH WHITE BUCKET LIDS BOUNDARY MARKERS.
A52-1966 FT TREES; 18 FT FM THLD, 88 FT RIGHT OF CNTRLN.
A57-19APCH SLOPE 20:1 TO DTHR RWY 19.
E111VFR OPNS ONLY.
BANDEL (IATA: 22D) is a public airport located in EIGHTY FOUR, PA, US.
