iFlightPlanner



...
JAKE ARNER MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

22N
Local 22N
JAKE ARNER MEML
PublicPUB

3 miles SW of LEHIGHTON, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 48' 34"N 75° 45' 41"W
Elevation
534' MSL
Pattern Alt
1534' MSL
Mag Variation
12°W
Declination
12°W
Fuel
JET A, 100LL
FSS
WILLIAMSPORT (IPT)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
10/29/26-11/26/26
K22N MVFR
7:55 AM EST
Overcast 2,100'
10sm
46°F
43°F
29.63"Hg
Calm
AO2
METAR K22N 121255Z AUTO 00000KT 10SM OVC021 08/06 A2963 RMK AO2
+ Add Your Business

22N FBOs

Promote Listing
Jake Arner Memorial Airport
UNICOM: 123.05
Phone: (570) 386-5025
Other: (570) 778-4783
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 11/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.20 6.95
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.35
(570) 386-3423

Common

CTAF 123.05
ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
UNICOM 123.05

Approach

ALLENTOWN APPROACH 119.65
Initial Contact - 3000 FT & BLW
ALLENTOWN APPROACH 124.45
Initial Contact - ABV 3000 FT

Departure

ALLENTOWN DEPARTURE 119.65
Initial Contact - 3000 FT & BLW
ALLENTOWN DEPARTURE 124.45
Initial Contact - ABV 3000 FT

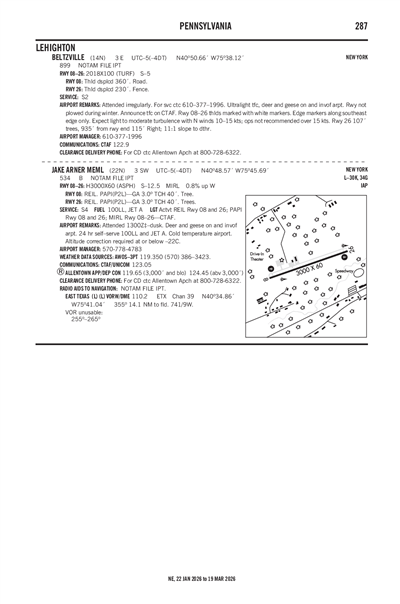

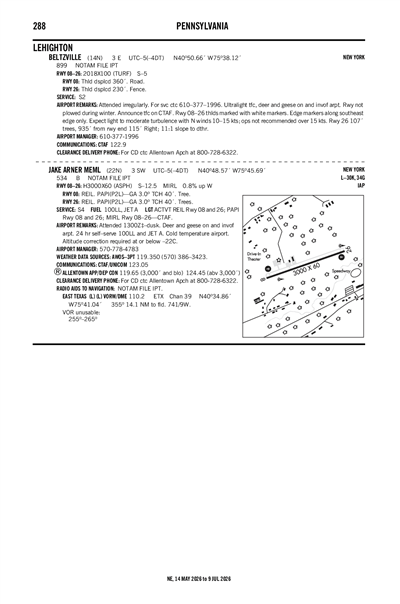

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KABE (17nm)
Thu, 11/12 6:20 AM EST
Thu, 11/12 7:00 AM EST - Fri, 11/13 7:00 AM EST
VFR
7:00 AM EST - 10:00 AM EST
Showers in vicinity
Overcast 6,000'
Scattered 5,000'
6sm
VRB° 4kts
MVFR
10:00 AM EST - 12:00 PM EST
Light Showers and Rain
Overcast 1,900'
4sm
090° 6kts
MVFR
12:00 PM EST - 5:00 PM EST
Light Showers and Rain and Thunderstorm in vicinity
Overcast 1,300'
3sm
360° 5kts
MVFR
5:00 PM EST - 7:00 PM EST
Light Showers and Rain
Overcast 1,500'
3sm
340° 6kts
MVFR
7:00 PM EST - 7:00 AM EST
Light Showers and Rain
Overcast 1,000'
Scattered 900'
4sm
010° 9kts
TAF KABE 121120Z 1212/1312 VRB04KT P6SM VCSH SCT050 OVC060
   FM121500 09006KT 4SM -SHRA OVC019
   FM121700 36005KT 3SM -SHRA VCTS OVC013CB
   FM122200 34006KT 3SM -SHRA OVC015
   FM130000 01009KT 4SM -SHRA SCT009 OVC010
22N
EffectiveExpiresCategoryNOTAM
Domestic
10/27/26
0242Z
12/11/26
0842Z
!IPT 10/303 22N OBST TOWER LGT (ASR 1241420) 404946.40N0755143.00W (4.7NM W 22N) 1773FT (258FT AGL) U/S 2610270242-2612110842
FDC
9/18/25
1929Z
!FDC 5/7108 22N IAP JAKE ARNER MEML, LEHIGHTON, PA.
RNAV (GPS) RWY 26, AMDT 1D...
MINIMUM ALTITUDE AT WASIG/3.50 NM TO RW26 1740.
2509181929-2709171929EST
No
0800-DUSK
CARBON COUNTY AIRPORT AUTHORITY
2321 MAHONING DR EAST
LEHIGHTON, PA 18235
Phone: 570-386-5025
PAUL SMITH
2321 MAHONING DRIVE EAST
LEHIGHTON, PA 18235
Phone: 570-778-4783
WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF
IPT
--
ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 08/26

3000 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 69°249°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 48' 29"N 40° 48' 40"N
Longitude 75° 45' 60"W 75° 45' 23"W
Elevation 532' 507'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1DEER AND GEESE ON AND IN VICINITY OF ARPT.
A110-224 HR SELF SERVE 100LL AND JET A
A110-3FOR CD CTC ALLENTOWN APCH AT 800-728-6322.
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -22C.
A16FOR ASST AFTER HRS CTC 570-778-4783.
A58-0811 FT BRUSH, 163 FT FM RWY END, 90 FT R.
A81-APTACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
E111NO OJECTION.
JAKE ARNER MEML (IATA: 22N) is a public airport located in LEHIGHTON, PA, US.
