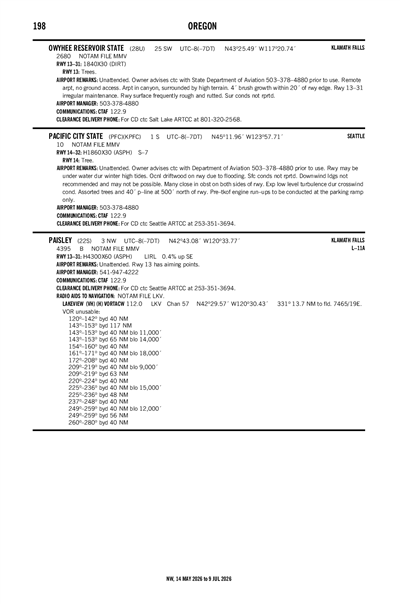

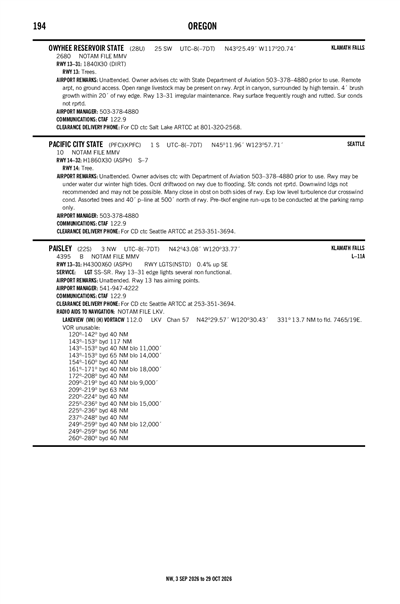

PAISLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

22S
Local 22S
PAISLEY
PublicPUB

3 miles NW of PAISLEY, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 43' 05"N 120° 33' 46"W
Elevation
4395' MSL
Pattern Alt
5395' MSL
Mag Variation
14°E
Declination
18°E
Fuel
None Listed
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
10/1/26-10/29/26
KLKV (35nm) VFR
8:53 AM PDT
Clear
10sm
42°F
20°F
30.31"Hg
Calm
AO2 SLP275 T00561067
METAR KLKV 171553Z AUTO 00000KT 10SM CLR 06/M07 A3031 RMK AO2 SLP275 T00561067
+ Add Your Business

22S FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KLMT (62nm)
Sat, 10/17 4:20 AM PDT
Sat, 10/17 5:00 AM PDT - Sun, 10/18 5:00 AM PDT
VFR
5:00 AM PDT - 3:00 PM PDT
Few 25,000'
6sm
VRB° 3kts
VFR
3:00 PM PDT - 5:00 PM PDT
Scattered 25,000'
6sm
270° 7kts
VFR
5:00 PM PDT - 8:00 PM PDT
Scattered 20,000'
6sm
300° 9kts
VFR
8:00 PM PDT - 5:00 AM PDT
Few 20,000'
6sm
320° 4kts
TAF KLMT 171120Z 1712/1812 VRB03KT P6SM FEW250
   FM172200 27007KT P6SM SCT250
   FM180000 30009KT P6SM SCT200
   FM180300 32004KT P6SM FEW200
22S
EffectiveExpiresCategoryNOTAM
Domestic
10/17/26
1215Z
2/14/27
1215Z
!MMV 10/071 22S OBST TOWER LGT (ASR 1280256) 424319.20N1203235.10W (0.9NM ENE 22S) 4589.9FT (198.2FT AGL) U/S 2610171215-2702141215
9/10/26
2052Z
12/10/26
2359Z
!MMV 09/047 22S AD AP ABN U/S 2609102052-2612102359
3/26/26
1515Z
3/26/27
2359Z
Runway!MMV 03/124 22S RWY 13/31 REDL U/S 2603261515-2703262359
No
UNATNDD
LAKE COUNTY
513 CENTER STREET
LAKEVIEW, OR 97630
Phone: 541-947-6006
TRISTAN WITHAM
513 CENTER STREET
LAKEVIEW, OR 97603
Phone: 541-947-4222
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
Sunset to Sunrise
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 13/31

4300 ft. x 60 ft.
ASPH
Good
NONE
NSTD

--
--
--
--
  Runway 13 Runway 31
True Heading 148°328°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 43' 23"N 42° 42' 47"N
Longitude 120° 34' 01"W 120° 33' 31"W
Elevation 4,376' 4,395'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TRAFFIC PATTERN ALTITUDE 1000' AGL.
A110-24 FT FENCE, 40 FT FROM RY EDGE ALONG NE SIDE OF RY.
A110-3FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A40-13/31RWY 13/31 EDGE LIGHTS SEVERAL NON FUNCTIONAL.
A42-13_MARKRWY HAS AIMING POINTS
A84OUTLINED BY WHITE TIRES; NON-STD.
E111ESTABD PRIOR TO 1959.
PAISLEY (IATA: 22S) is a public airport located in PAISLEY, OR, US.
