KARLSTAD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

23D
Local 23D
KARLSTAD MUNI
PublicPUB

1 miles W of KARLSTAD, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 34' 39"N 96° 32' 29"W
Elevation
1025' MSL
Pattern Alt
2025' MSL
Mag Variation
2°E
Declination
6°E
Fuel
None Listed
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
9/3/26-10/1/26
KHCO (19nm) VFR
10:35 PM CDT
Overcast 7,500'
10sm
70°F
68°F
30.00"Hg
140° 8kts
AO2
METAR KHCO 070335Z AUTO 14008KT 10SM OVC075 21/20 A3000 RMK AO2
+ Add Your Business

23D FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

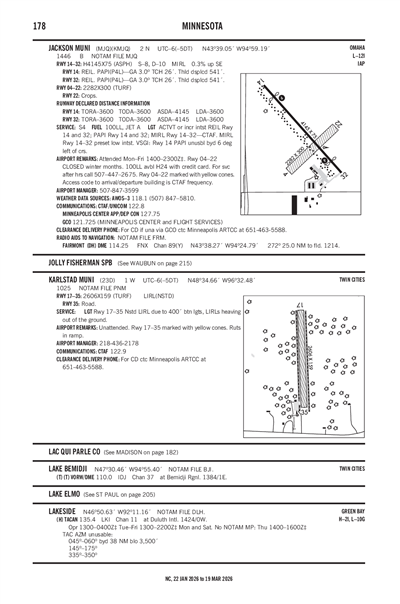

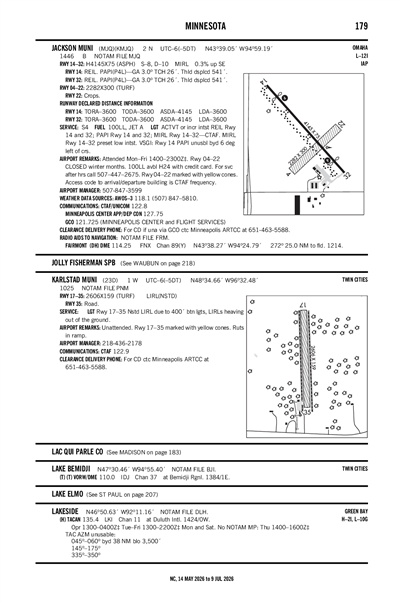

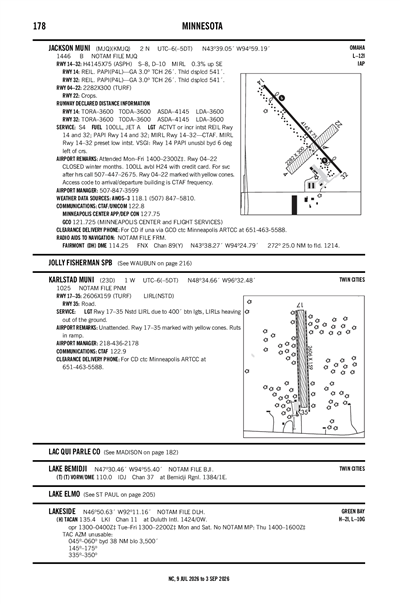

FAA A/FD Pages

Terminal Area Forecast

KTVF (34nm)
Sun, 9/6 6:25 PM CDT
Sun, 9/6 7:00 PM CDT - Mon, 9/7 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Light Thunderstorm and Rain
Overcast 4,500'
Scattered 2,500'
6sm
140° 8kts
VFR
10:00 PM CDT - 6:00 AM CDT
Broken 5,000'
6sm
140° 9kts
Gusts 15kts
VFR
6:00 AM CDT - 8:00 AM CDT
Broken 3,500'
6sm
120° 8kts
Gusts 15kts
MVFR
8:00 AM CDT - 12:00 PM CDT
Broken 1,200'
6sm
140° 10kts
Gusts 17kts
MVFR
12:00 PM CDT - 3:00 PM CDT
Broken 2,500'
6sm
150° 14kts
Gusts 22kts
VFR
3:00 PM CDT - 7:00 PM CDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 5,000'
6sm
150° 16kts
Gusts 24kts
TAF KTVF 062325Z 0700/0724 14008KT 6SM -TSRA SCT025 OVC045CB
   FM070300 14009G15KT P6SM BKN050
   FM071100 12008G15KT P6SM BKN035
   FM071300 14010G17KT P6SM BKN012
   FM071700 15014G22KT P6SM BKN025
   FM072000 15016G24KT 6SM -SHRA VCTS OVC050CB
23D
EffectiveExpiresCategoryNOTAM
Domestic
9/7/26
0139Z
9/8/26
2100Z
!PNM 09/072 23D AD AP CLSD 2609070139-2609082100
8/31/26
1346Z
10/30/26
2359Z
!PNM 08/697 23D OBST TOWER LGT (ASR 1273028) 485057.30N0962414.60W (17.2NM NNE 23D) 1363.2FT (350.1FT AGL) U/S 2608311346-2610302359
8/30/26
0727Z
10/14/26
0621Z
!PNM 08/683 23D OBST TOWER LGT (ASN 2024-WTE-4922-OE) 483433N0964441W (8.1NM W 23D) 1160FT (279FT AGL) U/S 2608300727-2610140621
No
UNATNDD
CITY OF KARLSTAD
PO BOX 299
KARLSTAD, MN 56732
Phone: 218-436-2178
SHELBY FOSSELL
PO BOX 299
KARLSTAD, MN 56732
Phone: 218-436-2178
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
PNM
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 17/35

2606 ft. x 159 ft.
TURF
Good
NONE
NSTD

--
--
--
--
  Runway 17 Runway 35
True Heading 178°358°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 48° 34' 52"N 48° 34' 27"N
Longitude 96° 32' 29"W 96° 32' 28"W
Elevation 1,025' 1,023'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RUTS IN RAMP.
A110-3FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A40-17/35NSTD LIRL DUE TO 400 FT BTN LGTS.
A42-17_MARKYELLOW CONES.
A42-35_MARKYELLOW CONES.
A52-17NMRS APCH SFC PENETRATIONS.
A57-35RY 35 ROAD: SIGNS POSTED TO CONTROL TFC.
E111ESTABD BFR 1959.
KARLSTAD MUNI (IATA: 23D) is a public airport located in KARLSTAD, MN, US.
