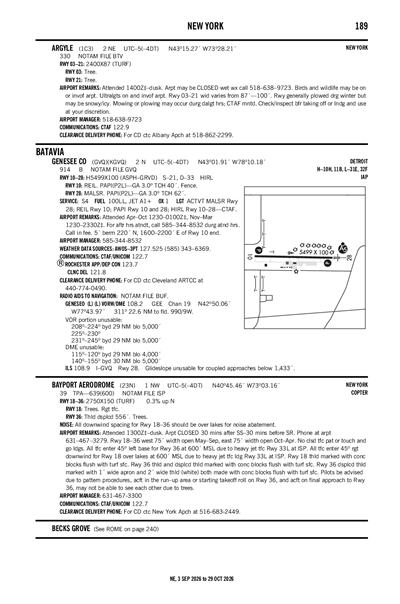

BAYPORT AERODROME - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

23N
Local 23N
BAYPORT AERODROME
PublicPUB

1 miles NW of BAYPORT, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 45' 27"N 73° 03' 10"W
Elevation
39' MSL
Pattern Alt
639' MSL
Mag Variation
13°W
Declination
13°W
Fuel
None Listed
FSS
NEW YORK (ISP)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
4/16/26-5/14/26
KISP (3nm) VFR
3:56 AM EDT
Broken 7,000'
10sm
43°F
38°F
29.99"Hg
090° 6kts
AO2 SLP157 T00610033
METAR KISP 250756Z AUTO 09006KT 10SM BKN070 06/03 A2999 RMK AO2 SLP157 T00610033
+ Add Your Business

23N FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
UNICOM 122.7

FAA A/FD Pages

Terminal Area Forecast

KISP (3nm)
Sat, 4/25 1:26 AM EDT
Sat, 4/25 2:00 AM EDT - Sun, 4/26 2:00 AM EDT
VFR
2:00 AM EDT - 8:00 AM EDT
Broken 10,000'
6sm
110° 7kts
VFR
8:00 AM EDT - 11:00 AM EDT
Broken 7,000'
Few 3,000'
6sm
120° 10kts
VFR
11:00 AM EDT - 3:00 PM EDT
Overcast 6,000'
Scattered 2,500'
6sm
120° 10kts
VFR
Temporary 11:00 AM EDT - 3:00 PM EDT
Light Rain
No Clouds
N/A
Calm
MVFR
3:00 PM EDT - 6:00 PM EDT
Light Rain
Overcast 2,500'
5sm
130° 11kts
MVFR
6:00 PM EDT - 2:00 AM EDT
Light Rain and Mist
Overcast 1,500'
Scattered 900'
3sm
110° 10kts
TAF KISP 250526Z 2506/2606 11007KT P6SM BKN100
   FM251200 12010KT P6SM FEW030 BKN070
   FM251500 12010KT P6SM SCT025 OVC060
   TEMPO 2515/2519 -RA
   FM251900 13011KT 5SM -RA OVC025
   FM252200 11010KT 3SM -RA BR SCT009 OVC015
23N
No NOTAM Available
No
0800-DUSK
TOWN OF ISLIP
3RD AVE
BAYPORT, NY 11705
Phone: 631-467-3300
ROBERT SCHNEIDER
100 ARRIVAL AVE, SUITE 100
RONKONKOMA, NY 11779
Phone: 631-467-3300
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
ISP
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 18/36

2750 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 173°353°
Traffic Pattern Right
Markings NSTD NSTD
Markings Condition FAIR FAIR
Latitude 40° 45' 41"N 40° 45' 14"N
Longitude 73° 03' 12"W 73° 03' 07"W
Elevation 39' 31'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ALL TFC ENTER 45 DEG LEFT BASE FOR RWY36 AT 600 MSL DUE HEAVY JET TFC RWY 33L AT ISP. ALL TFC ENTER 45 DEG RIGHT. DOWNWIND RWY 18 OVER LAKES AT 600 MSL DUE HEAVY JET TFC LNDG RWY 33L AT ISP.
A110-2ALL DOWNWIND SPACING FOR RWY 18/36 S/B OVER LAKES FOR NOISE ABATEMENT.
A110-3PHONE AT ARPT 631-467-3279.
A110-4NO CLSD TFC PATTERN OR TOUCH AND GO LNDGS.
A110-5ARPT CLSD 30 MIN AFTER SS TIL 30 MIN BEFORE SR.
A110-6PILOTS BE ADVISED: DUE TO PATTERN PROCEDURES, AIRCRAFT IN THE RUN-UP AREA OR STARTING TAKEOFF ROLL ON RY 36, AND AIRCRAFT ON FINAL APPROACH TO RY 36, MAY NOT BE ABLE TO SEE EACH OTHER DUE TO TREES.
A110-7FOR CD CTC NEW YORK APCH AT 516-683-2449.
A30-18/36RWY 18/36: WEST 75 FT WIDTH OPEN MAY-SEPT, EAST 75 FT WIDTH OPEN OCT-APR.
A42-18_MARKRWY 18 THLD MKD WITH CONC BLOCKS FLUSH WITH TURF SFC.
A42-36_MARKRWY 36 THLD AND DTHR MKD WITH CONCRETE BLOCKS FLUSH WITH TURF SFC.
A51-36RWY 36 THLD MKD WITH 1 FT WIDE APN AND 2 FT WIDE THRD (WHITE) BOTH MADE WITH CONC BLOCKS FLUSH WITH TURF SFC.
A57-18RWY 36 CLNC SLOPE 10:1 TO DTHR.
A57-36CTLG OBSTN EXCEEDS A 45 DEG SLP.
BAYPORT AERODROME (IATA: 23N) is a public airport located in BAYPORT, NY, US.
