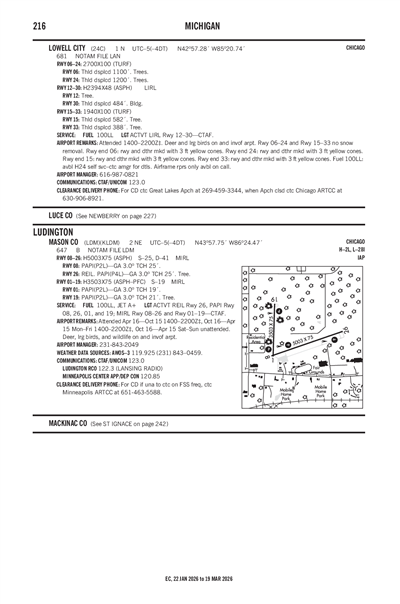

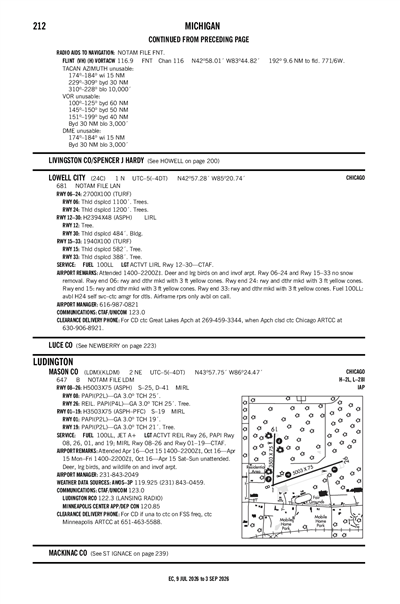

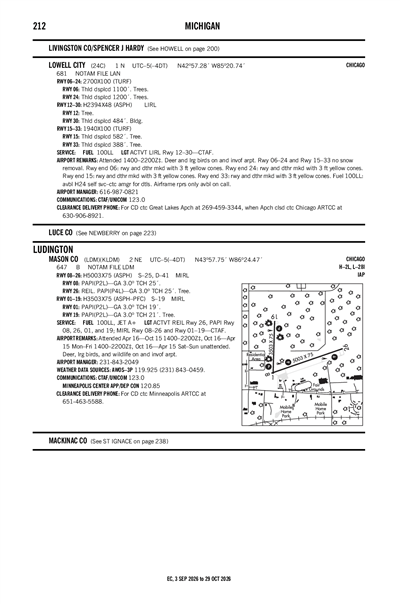

LOWELL CITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

24C
Local 24C
LOWELL CITY
PublicPUB

1 miles N of LOWELL, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 57' 17"N 85° 20' 44"W
Elevation
681' MSL
Pattern Alt
1681' MSL
Mag Variation
6°W
Declination
4°W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KGRR (9nm) VFR
10:53 AM EDT
Overcast 20,000'
Broken 14,000'
Few 9,000'
10sm
37°F
26°F
29.64"Hg
100° 17kts
Gusts 26kts
AO2 PK WND 10027/1424 PRESFR SLP042 T00281033 58053 $
METAR KGRR 151453Z 10017G26KT 10SM FEW090 BKN140 OVC200 03/M03 A2964 RMK AO2 PK WND 10027/1424 PRESFR SLP042 T00281033 58053 $
+ Add Your Business

24C FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT LIRL RWY 12/30 - CTAF.
UNICOM 123.0

FAA A/FD Pages

Terminal Area Forecast

KGRR (9nm)
Sun, 3/15 7:20 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
8:00 AM EDT - 9:00 AM EDT
Overcast 7,000'
6sm
100° 18kts
Gusts 26kts
VFR
9:00 AM EDT - 1:00 PM EDT
Scattered 4,000'
6sm
110° 15kts
Gusts 25kts
VFR
1:00 PM EDT - 6:00 PM EDT
Broken 4,000'
6sm
160° 12kts
Gusts 20kts
IFR
6:00 PM EDT - 11:00 PM EDT
Thunderstorm and Rain and Mist
Broken 3,000'
2sm
190° 22kts
Gusts 40kts
VFR
6:00 PM EDT - 11:00 PM EDT
Light Showers and Rain
Broken 4,000'
6sm
180° 18kts
Gusts 30kts
MVFR
11:00 PM EDT - 7:00 AM EDT
Light Showers and Rain and Mist
Broken 1,000'
5sm
190° 15kts
Gusts 28kts
MVFR
7:00 AM EDT - 8:00 AM EDT
Light Showers and Snow
Broken 1,500'
5sm
210° 19kts
Gusts 33kts
TAF KGRR 151120Z 1512/1612 10018G26KT P6SM OVC070 WS020/12048KT
   FM151300 11015G25KT P6SM SCT040
   FM151700 16012G20KT P6SM BKN040 WS020/18045KT
   FM152200 18018G30KT P6SM -SHRA BKN040 WS015/19050KT
   PROB30 1522/1603 19022G40KT 2SM TSRA BR BKN030CB
   FM160300 19015G28KT 5SM -SHRA BR BKN010
   FM161100 21019G33KT 5SM -SHSN BKN015
24C
EffectiveExpiresCategoryNOTAM
Domestic
3/14/26
2343Z
7/12/26
2343Z
!LAN 03/324 24C OBST TOWER LGT (ASR 1221250) 425608.90N0851352.40W (5.1NM ESE 24C) 1014.1FT (253.0FT AGL) U/S 2603142343-2607122343
3/8/26
1208Z
4/11/26
2359Z
!LAN 03/140 24C OBST TOWER LGT (ASR 1305951) 425104.30N0852240.40W (6.35NM SSW 24C) 1249FT (434FT AGL) U/S 2603081208-2604112359
No
0900-1700
CITY OF LOWELL
301 E MAIN ST
LOWELL, MI 49331
Phone: 616-897-8457
CASEY K BROWN
770 LINCOLN LAKE AVE SE
LOWELL, MI 49331
Phone: 616-987-0821
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT LIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 06/24

2700 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 69°249°
Traffic Pattern Left
Markings
Markings Condition
Latitude 42° 57' 12"N 42° 57' 21"N
Longitude 85° 21' 04"W 85° 20' 31"W
Elevation 681' 681'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No
Runway End Identifier Lights

Runway 12/30

2394 ft. x 48 ft.
ASPH
Excellent
NONE
LOW

--
--
--
--
  Runway 12 Runway 30
True Heading 113°293°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 42° 57' 24"N 42° 57' 15"N
Longitude 85° 21' 00"W 85° 20' 31"W
Elevation 681' 681'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

1940 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 153°333°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 57' 22"N 42° 57' 05"N
Longitude 85° 20' 44"W 85° 20' 32"W
Elevation 679' 679'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-5FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A110-6DEER & LRG BIRDS ON & INVOF ARPT.
A30-06/24NO SNOW REMOVAL.
A30-15/33NO SNOW REMOVAL.
A42-06_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-15_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-24_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-33_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A57-06APCH RATIO 22:1 TO DTHR BASED ON STRAIGHT OUT OVR 54 FT TREE, 1225 FT DIST.
A57-12CTLG OBSTN EXCEEDS A 45 DEG SLP.
A57-15APCH RATIO 12:1 TO DTHR OVR 53 FT TREE, 660 FT DIST, 50 FT L.
A57-24APCH RATIO 22:1 TO DTHR BASED ON STRAIGHT OUT OVR 63 FT TREES, 1404 FT DIST.
A57-30APCH RATIO 17:1 TO DTHR BASED ON STRAIGHT OUT OVR 45 FT TREE, 795 FT DIST.
A57-33APCH RATIO 20:1 TO DTHR BASED ON STRAIGHT OUT OVR 45 FT TREES, 940 FT DIST.
A58-3050 FT TREES, 90 FT DIST, 90 FT R; 6 FT FENCE, 0 FT DIST, 125 FT R.
A70-100LLAVBL H24 SELF SVC - CTC AMGR FOR DTLS.
A71RPRS ONLY AVBL ON CALL.
A81-APTACTVT LIRL RWY 12/30 - CTAF.
E111ESTABD BFR 1959.
LOWELL CITY (IATA: 24C) is a public airport located in LOWELL, MI, US.
