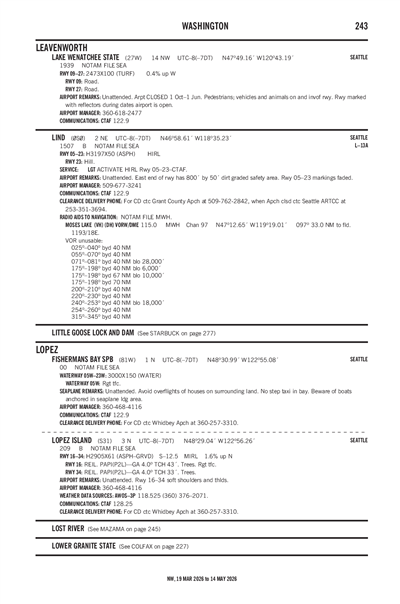

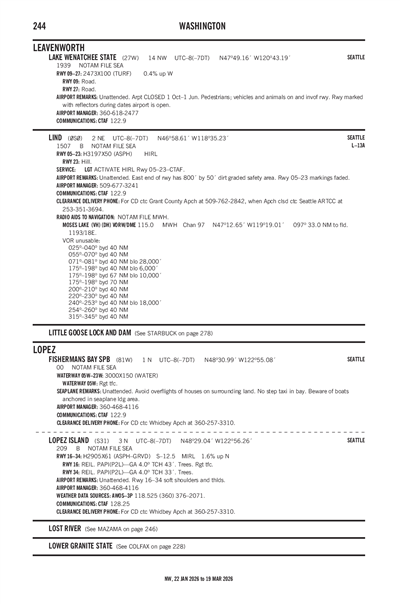

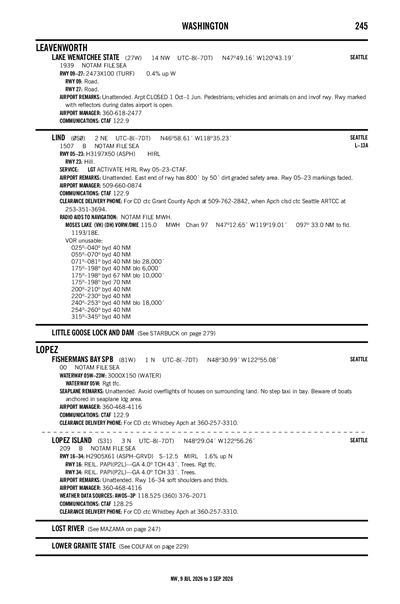

LAKE WENATCHEE STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

27W
Local 27W
LAKE WENATCHEE STATE
PublicPUB

14 miles NW of LEAVENWORTH, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 49' 10"N 120° 43' 12"W
Elevation
1939' MSL
Pattern Alt
2939' MSL
Mag Variation
15°E
Declination
20°E
Fuel
None Listed
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
KEAT (33nm) VFR
8:55 PM PDT
Clear
10sm
68°F
40°F
29.97"Hg
300° 12kts
AO2 SLP142 T02000044
METAR KEAT 040355Z AUTO 30012KT 10SM CLR 20/04 A2997 RMK AO2 SLP142 T02000044
+ Add Your Business

27W FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KEAT (33nm)
Wed, 6/3 4:39 PM PDT
Wed, 6/3 5:00 PM PDT - Thu, 6/4 5:00 PM PDT
VFR
5:00 PM PDT - 6:30 PM PDT
Light Showers and Rain
Overcast 9,000'
Few 5,000'
6sm
300° 12kts
VFR
6:30 PM PDT - 10:00 PM PDT
Broken 10,000'
6sm
300° 15kts
Gusts 23kts
VFR
10:00 PM PDT - 1:00 AM PDT
Sky Clear
6sm
300° 15kts
Gusts 22kts
VFR
1:00 AM PDT - 5:00 PM PDT
Sky Clear
6sm
300° 13kts
TAF KEAT 032339Z 0400/0424 30012KT P6SM -SHRA FEW050 OVC090
   FM040130 30015G23KT P6SM BKN100
   FM040500 30015G22KT P6SM SKC
   FM040800 30013KT P6SM SKC
27W
EffectiveExpiresCategoryNOTAM
Domestic
6/6/26
1730Z
6/14/26
0230Z
!SEA 05/519 27W AIRSPACE NUMEROUS GLD WI AN AREA DEFINED AS 490000N1212000W (32.8NM NE 3W5) TO 490000N1190000W (16.5NM E 0S7) TO 470000N1190000W (2.7NM NE 2S4) TO 470000N1212000W (8.2NM E 21W) TO POINT OF ORIGIN SFC-17999FT FREQ 123.3 DLY 1730-0230 2606061730-2606140230
6/6/26
1730Z
6/14/26
0230Z
!SEA 05/519 27W AIRSPACE NUMEROUS GLD WI AN AREA DEFINED AS 490000N1212000W (32.8NM NE 3W5) TO 490000N1190000W (16.5NM E 0S7) TO 470000N1190000W (2.7NM NE 2S4) TO 470000N1212000W (8.2NM E 21W) TO POINT OF ORIGIN SFC-17999FT FREQ 123.3 DLY 1730-0230 2606061730-2606140230
No
UNATNDD
WSDOT AVIATION DIVISION
PO BOX 47312
OLYMPIA, WA 98504
Phone: 800-552-0666
JOHN WILSON
PO BOX 47312
OLYMPIA, WA 98504
Phone: 360-618-2477
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

2473 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 109°289°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 47° 49' 14"N 47° 49' 06"N
Longitude 120° 43' 29"W 120° 42' 55"W
Elevation 1,936' 1,927'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT CLSD 1 OCT-1 JUN.
A110-3PEDESTRIANS; VEHICLES AND ANIMALS ON & INVOF RY.
A110-5RY MARKED WITH REFLECTORS DURING DATES AIRPORT IS OPEN.
A54-0975 FT TREES 1000 FT PAST RY END BOTH SIDES OF CNTRLN.
A54-2770 FT TREES 450 FT PAST RY END, BOTH SIDES OF CNTRLN.
A75-TPILOT PROVD OWN CHAINS FOR TIEDOWN.
E111ESTBD PRIOR TO MAY 1959.
LAKE WENATCHEE STATE (IATA: 27W) is a public airport located in LEAVENWORTH, WA, US.
