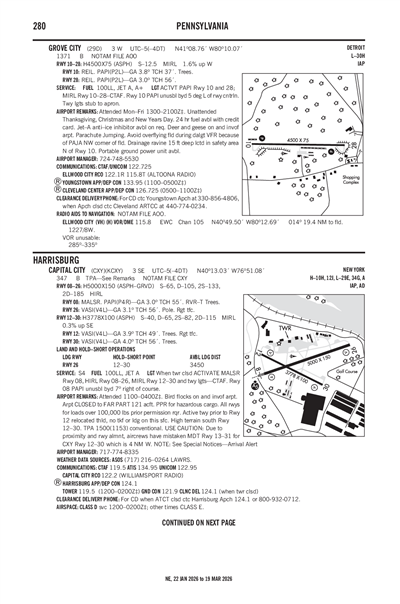

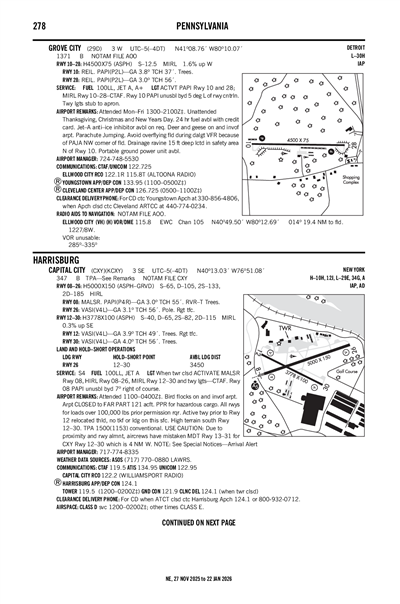

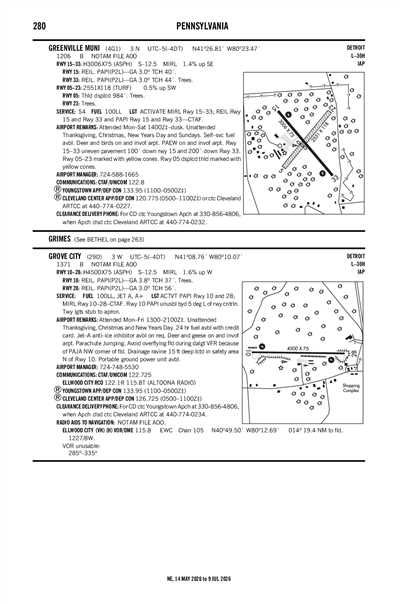

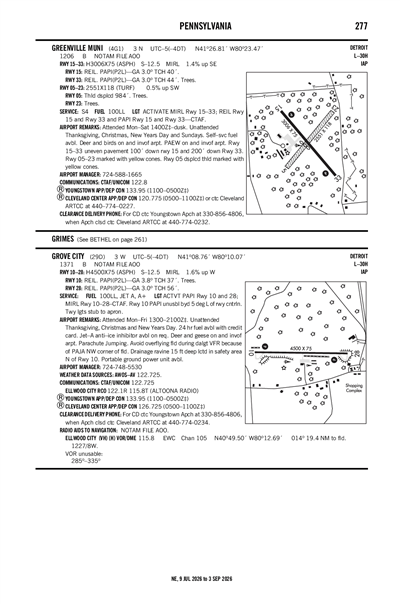

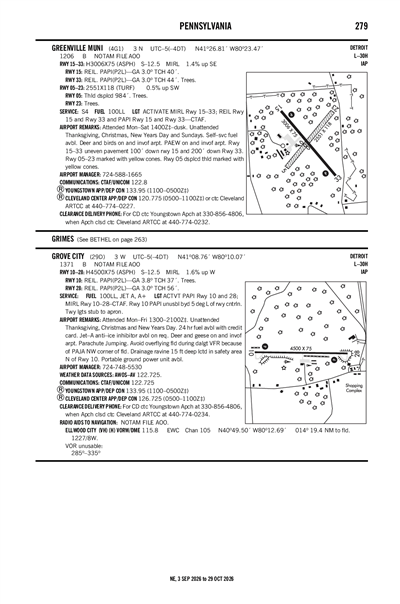

GROVE CITY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

29D
GROVE CITY
PublicPUB

3 miles W of GROVE CITY, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 08' 46"N 80° 10' 04"W
1371' MSL
2371' MSL
09W
Jet A, Jet A+, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
3/21/24-4/18/24
KUCP (13nm) VFR
3:56 AM EDT
Overcast 5,500'
Scattered 3,800'
Scattered 3,100'
10sm
55°F
54°F
29.94"Hg
230° 3kts
AO2 SLP147 T01280122
KUCP 180756Z AUTO 23003KT 10SM SCT031 SCT038 OVC055 13/12 A2994 RMK AO2 SLP147 T01280122
List Your Business

29D FBOs, Flight Schools and Ground Support

Promote Listing
Grove City Aviation
Freq: 122.7
Phone: (724) 748-5530
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 3/29
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.55 5.50 5.60
Full Serve 6.55 5.50 5.60

29D Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

29D Hotels

No hotels are listed for this airport.

29D Restaurants

No restaurants are listed for this airport.

29D Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFKL (20nm)
Thu, 4/18 3:17 AM EDT
Thu, 4/18 3:00 AM EDT - Fri, 4/19 2:00 AM EDT
VFR
3:00 AM EDT - 6:00 AM EDT
Broken 5,000'
6sm
260° 5kts
MVFR
6:00 AM EDT - 7:00 AM EDT
Broken 2,500'
6sm
260° 5kts
MVFR
7:00 AM EDT - 1:00 PM EDT
Broken 1,500'
6sm
270° 5kts
MVFR
1:00 PM EDT - 4:00 PM EDT
Broken 2,000'
6sm
270° 7kts
VFR
4:00 PM EDT - 2:00 AM EDT
Scattered 6,000'
6sm
280° 6kts
KFKL 180717Z 1807/1906 26005KT P6SM BKN050
   FM181000 26005KT P6SM BKN025
   FM181100 27005KT P6SM BKN015
   FM181700 27007KT P6SM BKN020
   FM182000 28006KT P6SM SCT060
29D
Domestic
4/15/241852Z !AOO 04/173 29D OBST TOWER LGT (ASR 1035631) 411510.10N0802127.10W (10.6NM NW 29D) 1944.9FT (737.9FT AGL) U/S 2404151852-2408131852
4/13/240040Z !AOO 04/124 29D OBST TOWER LGT (ASR 1207905) 410635.10N0801005.20W (2.2NM S 29D) 1560.0FT (240.2FT AGL) U/S 2404130040-2407110400
4/5/241915Z !AOO 04/046 29D OBST TOWER LGT (ASR 1243128) 410726.00N0800031.80W (7.3NM E 29D) 1593.2FT (265.1FT AGL) U/S 2404051915-2407040400
4/2/240000Z !AOO 04/007 29D OBST TOWER LGT (ASR 1233349) 410204.20N0800027.20W (9.8NM SE 29D) 1435.0FT (270.0FT AGL) U/S 2404020000-2405020300
3/23/240858Z !AOO 03/178 29D OBST TOWER LGT (ASR 1056994) 410743.40N0801716.20W (5.5NM W 29D) 1583.7FT (299.9FT AGL) U/S 2403230858-2407210858
No
MON-FRI 0800-1600
UNATNDD THANKSGIVING, CHRISTMAS & NEW YEAR'S DAY.
BOROUGH OF GROVE CITY
123 W MAIN ST. P.O. BOX 110
GROVE CITY, PA 16127
Phone: 724-458-7060
MICHAEL BAUN
GROVE CITY AIRPORT, 40 OAKLEY KELLY DRIVE
MERCER, PA 16137-8411
Phone: 724-748-5530
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
2
6
2
0
0
None
None
None
None
Air Ambulance
Parachute Jump Activity

Runway 10/28

4500 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 08' 47"N 41° 08' 45"N
Longitude 80° 10' 33"W 80° 09' 35"W
Elevation 1,370' 1,297'
Threshold Crossing Height 37 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3.8° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER & GEESE ON AND INVOF ARPT.
A110-3DRAINAGE RAVINE 15 FT DEEP LCTD IN SAFETY AREA NORTH OF RY 10.
A110-4TWY LGTS STUB TO APRON.
A110-5AVOID OVERFLYING FLD DURG DALGT VFR BECAUSE OF PARACHUTE JUMPING ACTIVITY NW CORNER OF FLD.
A110-7FOR CD CTC YOUNGSTOWN APCH AT 330-856-4806, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0234.
A110-8PORTABLE GROUND PWR UNIT AVBL.
GROVE CITY (IATA: 29D) is a public airport located in GROVE CITY, PA.
