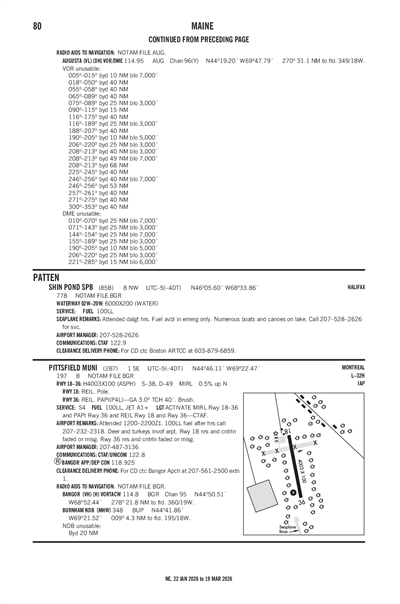

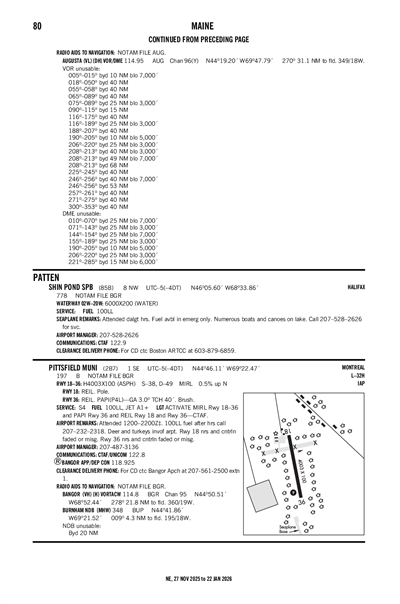

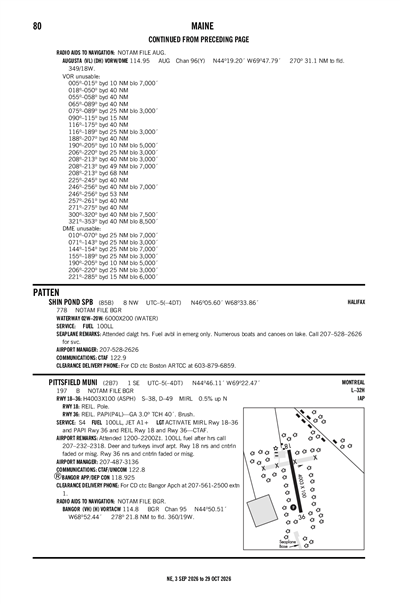

PITTSFIELD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2B7
Local 2B7
PITTSFIELD MUNI
PublicPUB

1 miles SE of PITTSFIELD, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 46' 07"N 69° 22' 28"W
Elevation
197' MSL
Pattern Alt
1197' MSL
Mag Variation
15°W
Declination
17°W
Fuel
JET A-1+, 100LL
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
10/1/26-10/29/26
KWVL (19nm) VFR
11:56 AM EDT
Broken 5,500'
Broken 4,300'
10sm
46°F
27°F
30.02"Hg
350° 12kts
Gusts 17kts
AO2 SLP173 T00781028
METAR KWVL 171556Z AUTO 35012G17KT 10SM BKN043 BKN055 08/M03 A3002 RMK AO2 SLP173 T00781028
+ Add Your Business

2B7 FBOs

Promote Listing
Curtis Air
UNICOM: 122.8
Phone: (207) 487-5213
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/6
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.18 7.65
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RWY 18 & 36; PAPI RWY 36; MIRL RWY 18/36 - CTAF.
UNICOM 122.8

Approach

BANGOR APPROACH 118.925

Departure

BANGOR DEPARTURE 118.925

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBGR (24nm)
Sat, 10/17 7:33 AM EDT
Sat, 10/17 8:00 AM EDT - Sun, 10/18 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Broken 15,000'
6sm
310° 12kts
Gusts 22kts
VFR
11:00 AM EDT - 5:00 PM EDT
Scattered 5,000'
6sm
320° 15kts
Gusts 25kts
VFR
5:00 PM EDT - 8:00 PM EDT
Scattered 25,000'
6sm
320° 12kts
VFR
8:00 PM EDT - 8:00 AM EDT
Scattered 25,000'
6sm
250° 6kts
TAF KBGR 171133Z 1712/1812 31012G22KT P6SM BKN150
   FM171500 32015G25KT P6SM SCT050
   FM172100 32012KT P6SM SCT250
   FM180000 25006KT P6SM SCT250
2B7
EffectiveExpiresCategoryNOTAM
Domestic
10/21/26
1300Z
!BGR 10/074 2B7 AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF 2B7 SFC-3500FT AGL ACFT CS FLC75 2610211300-2610212100EST
6/24/26
1003Z
!BGR 06/122 2B7 NAV BUP NDB U/S 2606241003-2901052000EST
FDC
7/8/26
1843Z
!FDC 6/4042 2B7 IAP PITTSFIELD MUNI, PITTSFIELD, ME.
RNAV (GPS) RWY 18, AMDT 1A...
RNAV (GPS) RWY 36, AMDT 1...
CIRCLING CAT C MDA 940/HAA 743.
2607081843-2807071843EST
No
0700-1700
TOWN OF PITTSFIELD
112 SOMERSET AVE
PITTSFIELD, ME 04967
Phone: 207-487-3136
KATHRYN RUTH
112 SOMERSET AVE
PITTSFIELD, ME 04967
Phone: 207-487-3136
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
ACTVT REIL RWY 18 & 36; PAPI RWY 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

4003 ft. x 100 ft.
ASPH
Good
NONE
MED

38,000lbs
49,000lbs
--
--
  Runway 18 Runway 36
True Heading 167°347°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 44° 46' 26"N 44° 45' 47"N
Longitude 69° 22' 34"W 69° 22' 22"W
Elevation 197' 176'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1DEER AND TURKEYS INVOF ARPT.
A110-4FOR CD CTC BANGOR APCH AT 207-561-2500 EXTN 1.
A14TOWN MGR.
A42-18_CONDNRS AND CNTRLN FADED OR MISG.
A42-36_CONDNRS AND CNTRLN FADED OR MISG.
A58-186-10 FT BRUSH, 0-200 FT FM THR, 225-250 FT L OF CNTRLN.
A58-3620 FT TREES 0-50 FT FM THR, 210 FT L OF CNTRLN; 8 FT BRUSH 170-200 FT FM THR, 90 FT L OF CNTRLN.
A70-100LL100LL FUEL AFT HRS, CALL 207-232-2318.
A75-HCALL 207-487-5213 FOR HNGR AVBL.
A81-APTACTVT REIL RWY 18 & 36; PAPI RWY 36; MIRL RWY 18/36 - CTAF.
E111EXISTED PRIOR TO 1959.
PITTSFIELD MUNI (IATA: 2B7) is a public airport located in PITTSFIELD, ME, US.
