iFlightPlanner



...
BANNOCK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2D6
Local 2D6
BANNOCK
PublicPUB

0 miles N of BANNOCK, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 06' 25"N 80° 58' 31"W
Elevation
1100' MSL
Pattern Alt
2100' MSL
Mag Variation
9°W
Declination
7°W
Fuel
None Listed
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
6/11/26-7/9/26
KHLG (16nm) MVFR
7:53 PM EDT
Light Rain and Mist
Overcast 9,000'
Scattered 7,000'
Few 4,800'
4sm
67°F
65°F
29.98"Hg
180° 7kts
AO2 SLP149 P0005 60010 T01940183 10267 20189 50002
METAR KHLG 252353Z 18007KT 4SM -RA BR FEW048 SCT070 OVC090 19/18 A2998 RMK AO2 SLP149 P0005 60010 T01940183 10267 20189 50002
+ Add Your Business

2D6 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Center

CLEVELAND CENTER 126.95
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) 126.95/239.3 (BELMONT RCAG).

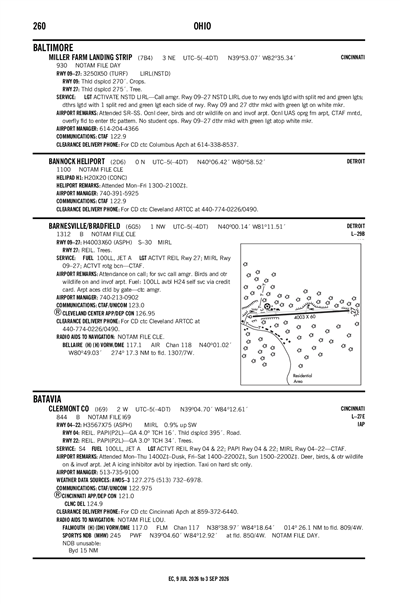

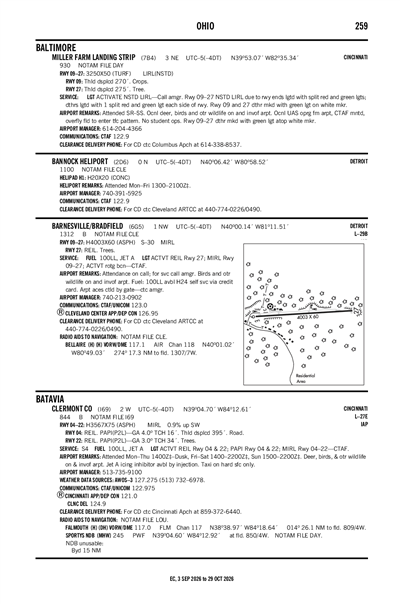

FAA A/FD Pages

Terminal Area Forecast

KHLG (16nm)
Thu, 6/25 7:20 PM EDT
Thu, 6/25 8:00 PM EDT - Fri, 6/26 8:00 PM EDT
VFR
Temporary 8:00 PM EDT - 12:00 AM EDT
Light Showers and Rain
Broken 5,000'
6sm
Calm
VFR
8:00 PM EDT - 10:00 AM EDT
Broken 7,000'
Few 4,000'
6sm
220° 7kts
MVFR
10:00 AM EDT - 2:00 PM EDT
Broken 2,500'
6sm
240° 5kts
VFR
2:00 PM EDT - 7:00 PM EDT
Broken 5,000'
6sm
250° 6kts
VFR
7:00 PM EDT - 8:00 PM EDT
Light Showers and Rain
Broken 7,000'
Few 3,000'
6sm
280° 4kts
TAF KHLG 252320Z 2600/2624 22007KT P6SM FEW040 BKN070
   TEMPO 2600/2604 6SM -SHRA BKN050
   FM261400 24005KT P6SM BKN025
   FM261800 25006KT P6SM BKN050
   FM262300 28004KT 6SM -SHRA FEW030 BKN070
2D6
No NOTAM Available
No
MON-FRI 0800-1600
OHIO RIVER COLLIERIES CO
70245 BANNOCK-UNIONTOWN RD
SAINT CLAIRSVILLE, OH 43950
Phone: 740-391-5925
MARK WESTLAKE
70245 BANNOCK-UNIONTOWN RD
SAINT CLAIRSVILLE, OH 43950
Phone: 740-391-5925
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
--
N/A
No
No
No
None
No
None
None
None
None
None

Runway H1

20 ft. x 20 ft.
CONC
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition GOOD
Latitude 40° 06' 25"N N/A
Longitude 80° 58' 31"W N/A
Elevation 1,100' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC CLEVELAND ARTCC AT 440-774-0226/0490.
A52-H136 FT POLES, 66 FT NW; 35 FT PLINE, 240 FT NW.
E111PRVDD INGRESS/EGRESS 195-190 DEGS CLKWS USING PAD AS CNTR OF A COMPASS ROSE.
BANNOCK (IATA: 2D6) is a public heliport located in BANNOCK, OH, US.
