iFlightPlanner



...
DELL CITY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2E5
Local 2E5
DELL CITY MUNI
PublicPUB

2 miles N of DELL CITY, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 56' 51"N 105° 11' 30"W
Elevation
3703' MSL
Pattern Alt
4703' MSL
Mag Variation
7°E
Declination
10°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
EL PASO
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
3/19/26-4/16/26
KCNM (53nm) VFR
11:53 PM MDT
Clear
10sm
60°F
25°F
30.31"Hg
100° 5kts
AO2 SLP226 T01561039 10200 20156 50005
METAR KCNM 050553Z AUTO 10005KT 10SM CLR 16/M04 A3031 RMK AO2 SLP226 T01561039 10200 20156 50005
+ Add Your Business

2E5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

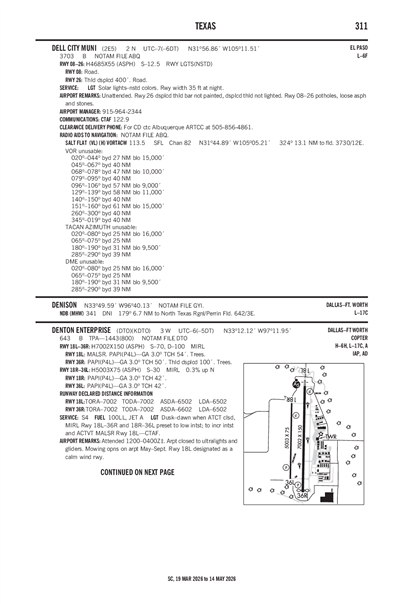

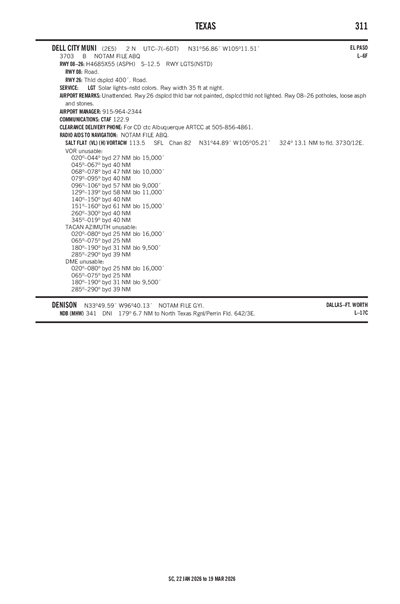

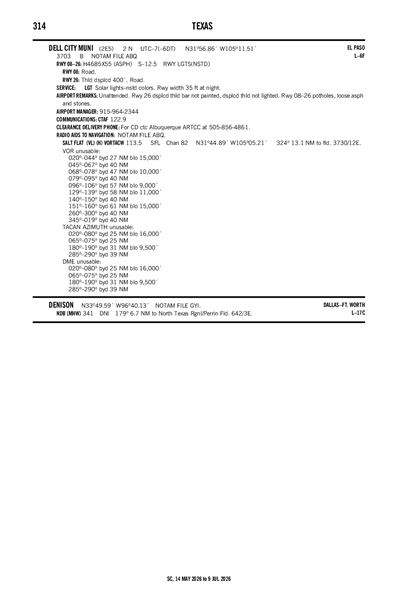

FAA A/FD Pages

Terminal Area Forecast

KCNM (53nm)
Sat, 4/4 11:27 PM MDT
Sun, 4/5 12:00 AM MDT - Mon, 4/6 12:00 AM MDT
VFR
12:00 AM MDT - 12:00 PM MDT
Broken 20,000'
Scattered 10,000'
6sm
100° 8kts
VFR
12:00 PM MDT - 7:00 PM MDT
Broken 20,000'
Scattered 10,000'
6sm
140° 13kts
Gusts 20kts
VFR
7:00 PM MDT - 12:00 AM MDT
Scattered 10,000'
6sm
130° 10kts
TAF KCNM 050527Z 0506/0606 10008KT P6SM SCT100 BKN200
   FM051800 14013G20KT P6SM SCT100 BKN200
   FM060100 13010KT P6SM SCT100
2E5
No NOTAM Available
No
UNATNDD
CITY OF DELL CITY
PO BOX 125
DELL CITY, TX 79837
Phone: 915-964-2344
DEBBY BERRY
PO BOX 353
DELL CITY, TX 79837
Phone: 915-964-2344
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 08/26

4685 ft. x 55 ft.
ASPH
Poor
NONE
NSTD

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A13CITY HALL
A14MAYOR.
A16MGR CELL 512-466-5712
A33-08/26_CONDPOTHOLES, LOOSE ASPH AND STONES
A40-08/26SOLAR LIGHTS-NSTD COLORS. RWY WIDTH 35 FT. AT NIGHT.
A51-26DSPLCT THLD BAR NOT PAINTED; DSPLCD THLD NOT LIGHTED.
A57-26APCH SLOPE 50:1 TO DSPLCD THR.
A58-264 FT FENCE 130 FT DSTC; 125 L/R; 12 FT ROAD 140 FT DSTC; 125 L/R.
DELL CITY MUNI (IATA: 2E5) is a public airport located in DELL CITY, TX, US.
