SOMERSET COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2G9
SOMERSET COUNTY
PublicPUB

3 miles NE of SOMERSET, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 02' 19"N 79° 00' 55"W
2275' MSL
3275' MSL
10W
Jet A, Jet A+, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
4/18/24-5/16/24
K2G9 VFR
4:55 PM EDT
Clear
10sm
59°F
37°F
30.29"Hg
160° 12kts
Gusts 18kts
AO2
K2G9 262055Z AUTO 16012G18KT 120V180 10SM CLR 15/03 A3029 RMK AO2
List Your Business

2G9 FBOs, Flight Schools and Ground Support

Promote Listing
Somerset County Airport
Freq: 122.8
Phone: (814) 445-1599
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.75 5.35 5.35
Full Serve

2G9 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

2G9 Hotels

No hotels are listed for this airport.

2G9 Restaurants

No restaurants are listed for this airport.

2G9 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
814-443-2114
 133.8

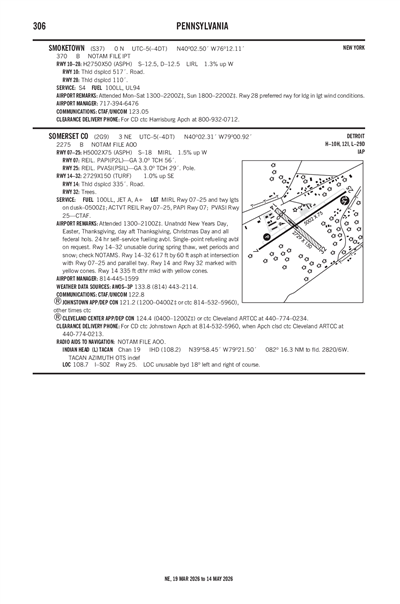

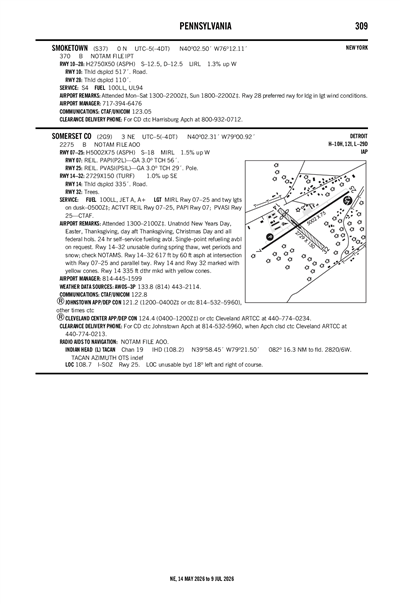

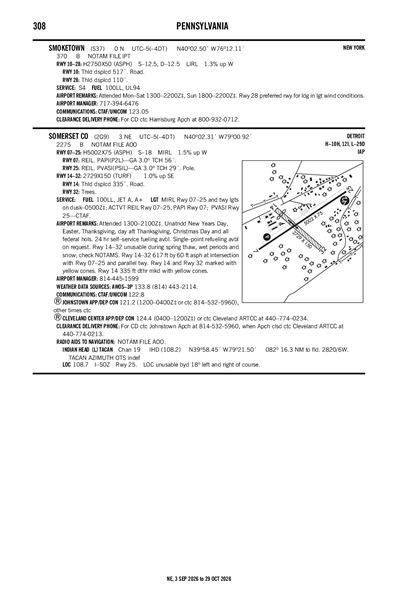

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KJST (19nm)
Fri, 4/26 1:24 PM EDT
Fri, 4/26 2:00 PM EDT - Sat, 4/27 2:00 PM EDT
VFR
2:00 PM EDT - 3:00 PM EDT
Few 5,000'
6sm
150° 11kts
Gusts 20kts
VFR
3:00 PM EDT - 11:00 PM EDT
Sky Clear
6sm
150° 11kts
Gusts 18kts
VFR
11:00 PM EDT - 2:00 AM EDT
Broken 25,000'
Scattered 5,000'
6sm
140° 8kts
VFR
2:00 AM EDT - 7:00 AM EDT
Overcast 17,000'
Broken 5,000'
6sm
160° 10kts
VFR
7:00 AM EDT - 10:00 AM EDT
Light Showers and Rain
Overcast 6,000'
Scattered 2,000'
6sm
150° 8kts
IFR
10:00 AM EDT - 2:00 PM EDT
Light Showers and Rain
Overcast 1,500'
Broken 700'
2sm
160° 11kts
Gusts 18kts
KJST 261724Z 2618/2718 15011G20KT P6SM FEW050
   FM261900 15011G18KT P6SM SKC
   FM270300 14008KT P6SM SCT050 BKN250
   FM270600 16010KT P6SM BKN050 OVC170
   FM271100 15008KT P6SM -SHRA SCT020 OVC060
   FM271400 16011G18KT 2SM -SHRA BKN007 OVC015
2G9
Domestic
4/20/242104Z !AOO 04/249 2G9 OBST TOWER LGT (ASN 2018-AEA-11131-OE) 395540N0790942W (9.5NM SW 2G9) 2541FT (265FT AGL) U/S 2404202104-2406042103
4/18/241726Z !AOO 04/239 2G9 OBST TOWER LGT (ASR 1287318) 394956.60N0790008.00W (12.5NM S 2G9) 2674.5FT (308.7FT AGL) U/S 2404181726-2408161726
4/18/241617Z !AOO 04/236 2G9 OBST TOWER LGT (ASR 1032616) 400750.90N0790029.30W (5.6NM NE 2G9) 2516.1FT (304.1FT AGL) U/S 2404181617-2407170400
4/18/241346Z !AOO 04/233 2G9 OBST TOWER LGT (ASR 1288603) 395409.10N0791639.20W (14.6NM SW 2G9) 2513.8FT (254.9FT AGL) U/S 2404181346-2408161346
4/2/241030Z !AOO 04/020 2G9 OBST TOWER LGT (ASR 1038031) 395828.40N0785540.10W (5.5NM SE 2G9) 2606.0FT (316.9FT AGL) U/S 2404021030-2407010400
3/20/241920Z !AOO 03/161 2G9 OBST TOWER LGT (ASR 1290051) 395311.50N0785157.10W (11.4NM SE 2G9) 2635.8FT (253.9FT AGL) U/S 2403201920-2407181920
1/9/211525Z !AOO 01/108 2G9 OBST POLE (ASN 2018-AEA-13811-OE) 400231N0790023W (0.5NM ENE 2G9) 2215FT (31FT AGL) NOT LGTD 2101091525-PERM
1/9/211524Z !AOO 01/107 2G9 OBST POLE (ASN 2018-AEA-13810-OE) 400233N0790022W (0.5NM ENE 2G9) 2208FT (24FT AGL) NOT LGTD 2101091524-PERM
1/9/211523Z !AOO 01/106 2G9 OBST POLE (ASN 2018-AEA-13809-OE) 400235N0790020W (0.5NM ENE 2G9) 2213FT (32FT AGL) NOT LGTD 2101091523-PERM
No
0800-1600*
UNATNDD NEW YEARS DAY, EASTER, THANKSGIVING, DAY AFT THANKSGIVING, CHRISTMAS DAY AND ALL FEDERAL HOLS.
BD OF CO COMMISSIONERS
SOMERSET COUNTY COURTHOUSE
SOMERSET, PA 15501
Phone: 814-445-1400
DAVID WRIGHT
159 AIRPORT LANE
FRIEDENS, PA 15541
Phone: 814-445-1599
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
MIRL RWY 07/25 & TWY LGTS ON DUSK-0000; ACTVT REIL RWY 07/25, PAPI RWY 07; PVASI RWY 25; - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
21
4
0
0
0
0
None
None
None
None
None

Runway 07/25

5002 ft. x 75 ft.
ASPH
Good
NONE
MED

18,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 56°236°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 02' 06"N 40° 02' 34"N
Longitude 79° 01' 21"W 79° 00' 27"W
Elevation 2,275' 2,202'
Threshold Crossing Height 56 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

2729 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 131°311°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 40° 02' 25"N 40° 02' 07"N
Longitude 79° 01' 10"W 79° 00' 44"W
Elevation 2,228' 2,255'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC JOHNSTOWN APCH AT 814-532-5960, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0213.
A110-2RWY 14/32 UNUSBL DURING SPRING THAW, WET PERIODS & SNOW; CHECK NOTAMS.
SOMERSET COUNTY (IATA: 2G9) is a public airport located in SOMERSET, PA.
