2J3
LOUISVILLE MUNI
Public
PUB
2 miles SE of LOUISVILLE, GA
View on
Map
Status
Operational
Coordinates
32° 59' 09"N
82° 23' 05"W
Elevation
328' MSL
Pattern Alt
1328' MSL
Mag Variation
03W
Fuel
Jet A+, 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
4/18/24-5/16/24
K2J5 (22nm)
VFR
7:15 PM EDT
RAW
Clear
Viz
10sm
Temp
76°F
Dew
53°F
Pres
30.23"Hg
Wind
100° 7kts
RMK
AO2 T02460119
K2J5 262315Z AUTO 10007KT 10SM CLR 25/12 A3023 RMK AO2 T02460119
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
2J3 FBOs, Flight Schools and Ground Support
Promote Listing
Louisville Municipal Airport
Phone: (478) 625-3166
0 Reviews
(
Read
|
Sign In To Write
)
Other
As of
4/26
100LL
Jet
A
Jet
A+
Mogas
UL94
Self Serve
5.49
4.79
Full Serve
2J3 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
2J3 Hotels
No hotels are listed for this airport.
2J3 Restaurants
No restaurants are listed for this airport.
2J3 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3PT
AWOS-3PT
478-625-8303
119.35

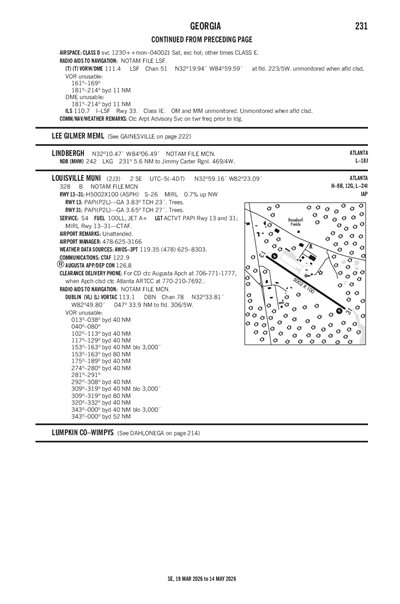

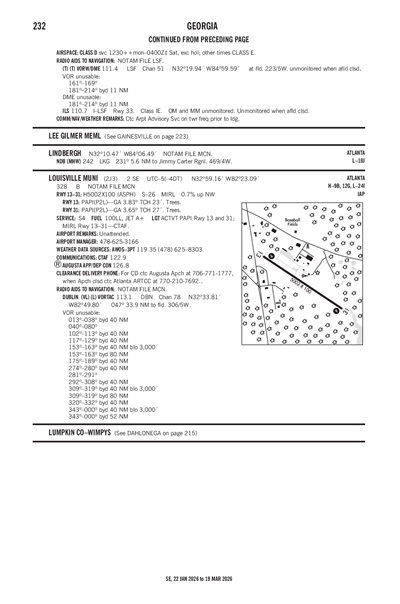

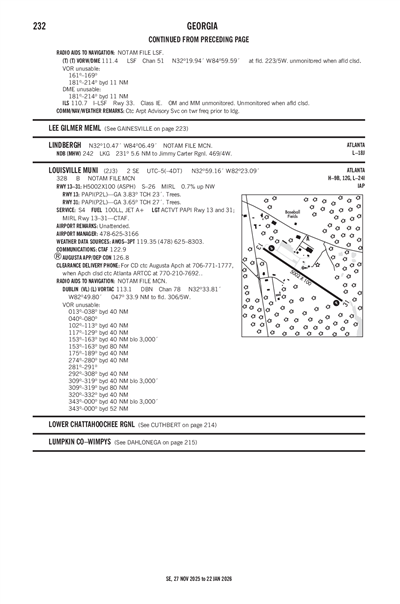

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 13
RNAV (GPS) RWY 31
Terminal Area Forecast
KAGS (31nm)
RAW
Reported
Fri, 4/26 7:33 PM EDT
Valid
Fri, 4/26 8:00 PM EDT - Sat, 4/27 8:00 PM EDT
VFR
8:00 PM EDT - 5:00 AM EDT
Broken 9,000'
Viz
6sm
Wind
100° 5kts
VFR
5:00 AM EDT - 12:00 PM EDT
Broken 10,000'
Scattered 1,500'
Viz
6sm
Wind
VRB° 3kts
VFR
12:00 PM EDT - 8:00 PM EDT
Broken 10,000'
Scattered 2,000'
Viz
6sm
Wind
130° 8kts
KAGS 262333Z 2700/2724 10005KT P6SM BKN090
FM270900 VRB03KT P6SM SCT015 BKN100
FM271600 13008KT P6SM SCT020 BKN100
2J3
Domestic
3/27/24
1220Z
!MCN 03/728 2J3 OBST TOWER LGT (ASN 2016-ASO-20429-OE) 325659N0822403W
(2.3NM SSW 2J3) 521FT (200FT AGL) U/S 2403271220-2405112359
3/25/24
1805Z
!MCN 03/673 2J3 OBST TOWER LGT (ASR 1013873) 325430.40N0822402.60W (4.7NM S 2J3) 630.9FT (338.9FT AGL) U/S 2403251805-2405091800
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF LOUISVILLE
CITY HALL, PO BOX 527
LOUISVILLE, GA 30434
Phone: 478-625-3166
Manager
RICHARD SAPP
PO BOX 527
LOUISVILLE, GA 30434
Phone: 478-625-3166
FSS
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
NOTAM
MCN
Light Schedule
--
Lights
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31- CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
12
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 13/31
Dimensions
5002 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
26,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
124°
304°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
32° 59' 23"N
32° 58' 56"N
Longitude
82° 23' 30"W
82° 22' 41"W
Elevation
328'
294'
Threshold Crossing Height
23 ft. AGL
27 ft. AGL
Visual Glide Path Angle
3.83°
3.65°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
FOR CD CTC AUGUSTA APCH AT 706-771-1777, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692..
A110-2
CALL AMGR - 478-625-3166 - FOR COURTESY CAR
LOUISVILLE MUNI (IATA: 2J3) is a public airport located in LOUISVILLE, GA.
