iFlightPlanner



...

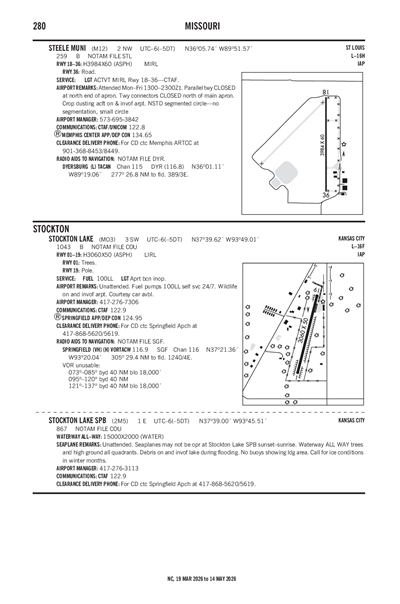

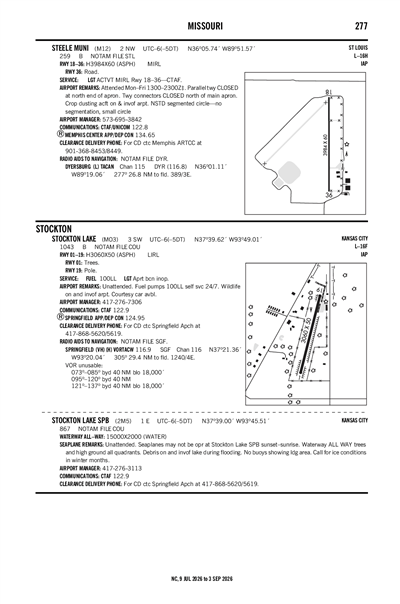

STOCKTON LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2M5
Local 2M5
STOCKTON LAKE
PublicPUB

1 miles E of STOCKTON, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 39' 00"N 93° 45' 31"W
Elevation
867' MSL
Pattern Alt
1867' MSL
Mag Variation
1°E
Declination
4°E
Fuel
None Listed
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
6/11/26-7/9/26
KSGF (30nm) MVFR
5:28 PM CDT
Light Thunderstorm and Rain
Overcast 4,500'
Broken 2,800'
Scattered 1,800'
10sm
68°F
66°F
29.95"Hg
350° 11kts
Gusts 20kts
AO2 LTG DSNT ALQDS P0006 T02000189 $
SPECI KSGF 252228Z 35011G20KT 10SM -TSRA SCT018 BKN028 OVC045 20/19 A2995 RMK AO2 LTG DSNT ALQDS P0006 T02000189 $
+ Add Your Business

2M5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSGF (30nm)
Thu, 6/25 4:38 PM CDT
Thu, 6/25 5:00 PM CDT - Fri, 6/26 1:00 PM CDT
IFR
Temporary 4:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 5,000'
Broken 3,000'
Few 1,500'
2sm
Calm
VFR
5:00 PM CDT - 1:00 AM CDT
Broken 5,000'
6sm
170° 10kts
MVFR
1:00 AM CDT - 6:00 AM CDT
Light Thunderstorm and Rain and Mist
Broken 2,500'
4sm
150° 8kts
VFR
6:00 AM CDT - 11:00 AM CDT
Light Showers and Rain
Broken 7,000'
6sm
180° 11kts
Gusts 19kts
MVFR
11:00 AM CDT - 1:00 PM CDT
Broken 2,500'
6sm
220° 13kts
Gusts 21kts
MVFR
12:00 PM CDT - 1:00 PM CDT
Thunderstorm and Rain and Mist
Overcast 1,500'
4sm
Calm
TAF KSGF 252138Z 2522/2618 17010KT P6SM BKN050
   TEMPO 2521/2524 2SM TSRA BR FEW015 BKN030 OVC050CB
   FM260600 15008KT 4SM -TSRA BR BKN025CB
   FM261100 18011G19KT P6SM -SHRA BKN070
   FM261600 22013G21KT P6SM BKN025
   PROB30 2617/2618 4SM TSRA BR OVC015CB
2M5
EffectiveExpiresCategoryNOTAM
Domestic
6/18/26
0915Z
7/3/26
0815Z
!COU 06/513 2M5 OBST TOWER LGT (ASR 1226900) 375114.60N0933742.50W (13.7NM NNE 2M5) 1255.2FT (304.1FT AGL) U/S 2606180915-2607030815
6/14/26
0726Z
7/29/26
0725Z
!COU 06/414 2M5 OBST TOWER LGT (ASN 2022-ACE-8731-OE) 372826N0934030W (11.3NM SSE 2M5) 1377FT (310FT AGL) U/S 2606140726-2607290725
No
UNATNDD
US ARMY CORPS OF ENGINEERS
700 FEDERAL BLDG
KANSAS CITY, MO 64106
Phone: 816-389-3342
RICH CHILES
16435 E. STOCKTON LAKE DR.
STOCKTON, MO 65785
Phone: 417-276-3113
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
--
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway ALL/WAY

15000 ft. x 2000 ft.

WATER
NONE


--
--
--
--
  Runway ALL Runway WAY
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11U.S. ARMY CORPS OF ENGINEERS OFFICE MON-FRI 0730-1600.
A110-1SEAPLANES MAY NOT BE OPERATED AT STOCKTON LAKE SS-SR.
A110-2DEBRIS ON & INVOF LAKE DURING FLOODING.
A110-3NO BUOYS SHOWING LANDING AREA.
A110-4CALL FOR ICE CONDITIONS IN WINTER MONTHS.
A110-5FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
A14OPERATIONS PROJECT MANAGER
A52-ALLALL/WAY TREES & HIGH GND ALL QUADRANTS.
A75-HMOORING FACILITIES AVLBL AT LOCAL BOAT MARINAS.
E111PRVDD EACH SEALANE APCH IS MAINTAINED FOR A 20:1 GLIDE SLOPE.
STOCKTON LAKE (IATA: 2M5) is a public seaplane base located in STOCKTON, MO, US.
