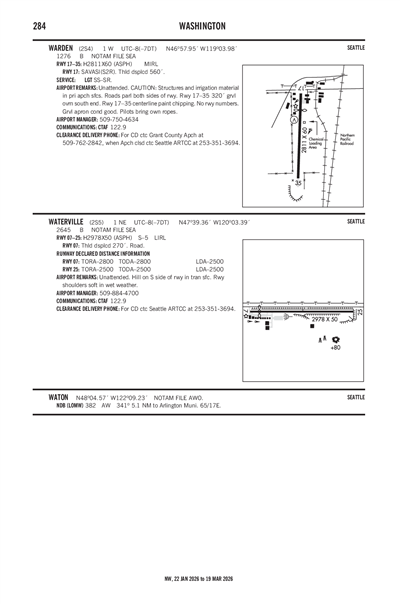

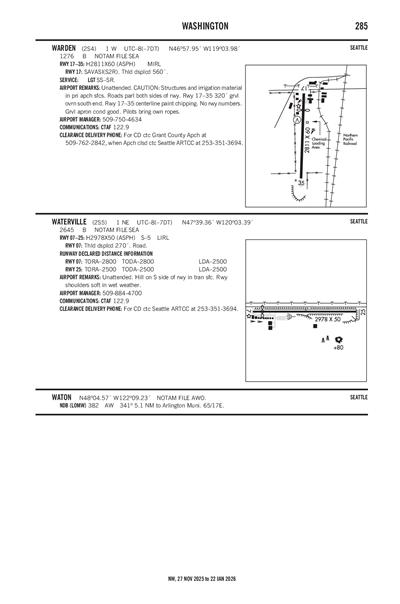

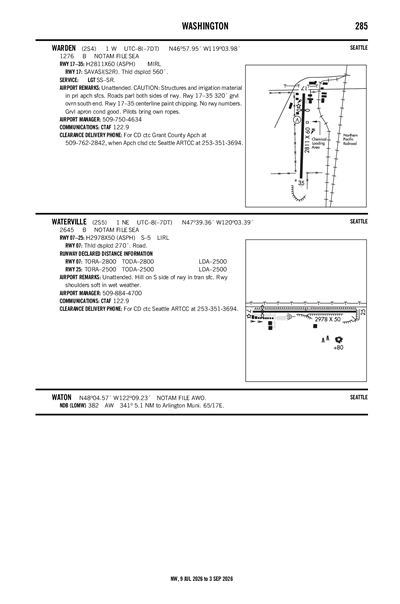

WATERVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

2S5
WATERVILLE
PublicPUB

1 miles NE of WATERVILLE, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 39' 22"N 120° 03' 23"W
2645' MSL
3645' MSL
20E
None Listed
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
11/27/25-12/25/25
KEAT (17nm) VFR
4:15 AM PST
Light Rain
Few 5,000'
Few 4,300'
10sm
41°F
37°F
29.28"Hg
310° 22kts
Gusts 34kts
AO2 PK WND 27053/1200 WSHFT 1155 RAB04 P0000 T00500028
SPECI KEAT 171215Z AUTO 31022G34KT 10SM -RA FEW043 FEW050 05/03 A2928 RMK AO2 PK WND 27053/1200 WSHFT 1155 RAB04 P0000 T00500028
+ Add Your Business

2S5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KEAT (17nm)
Wed, 12/17 4:03 AM PST
Wed, 12/17 4:00 AM PST - Thu, 12/18 4:00 AM PST
VFR
4:00 AM PST - 8:00 AM PST
Few 6,000'
6sm
280° 30kts
Gusts 50kts
VFR
8:00 AM PST - 11:00 AM PST
Few 10,000'
6sm
300° 26kts
Gusts 40kts
VFR
11:00 AM PST - 6:00 PM PST
Sky Clear
6sm
300° 20kts
Gusts 28kts
VFR
6:00 PM PST - 9:00 PM PST
Scattered 25,000'
6sm
300° 10kts
VFR
9:00 PM PST - 1:00 AM PST
Broken 20,000'
6sm
VRB° 4kts
VFR
1:00 AM PST - 4:00 AM PST
Overcast 10,000'
6sm
130° 3kts
TAF KEAT 171203Z 1712/1812 28030G50KT P6SM FEW060
   FM171600 30026G40KT P6SM FEW100
   FM171900 30020G28KT P6SM SKC
   FM180200 30010KT P6SM SCT250
   FM180500 VRB04KT P6SM BKN200
   FM180900 13003KT P6SM OVC100
2S5
EffectiveExpiresCategoryNOTAM
Domestic
3/1/24
2210Z
!SEA 03/024 2S5 AD AP WIND TEE FOR RWY 07 LGT U/S 2403012210-PERM
No
UNATTENDED
CHELAN DOUGLAS REGIONAL PT AUTHORIT
ONE CAMPBELL PARKWAY SUITE A
EAST WENATCHEE, WA 98802
Phone: 509-884-4700
TRENT MOYERS
ONE CAMPBELL PARKWAY SUITE A
EAST WENATCHEE, WA 98802
Phone: 509-884-4700
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
SEA
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 07/25

2978 ft. x 50 ft.
ASPH
Good
NONE
LOW

5,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 47° 39' 22"N 47° 39' 22"N
Longitude 120° 03' 45"W 120° 03' 02"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2HILL ON S SIDE OF RY IN TRAN SFC.
A110-3RWY SHOULDERS SOFT IN WET WEATHER.
A110-4FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
WATERVILLE (IATA: 2S5) is a public airport located in WATERVILLE, WA.
