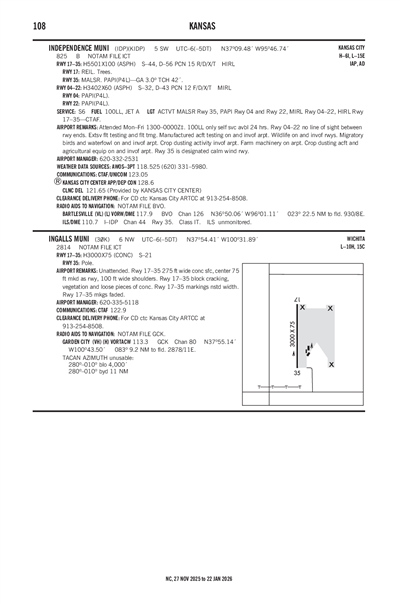

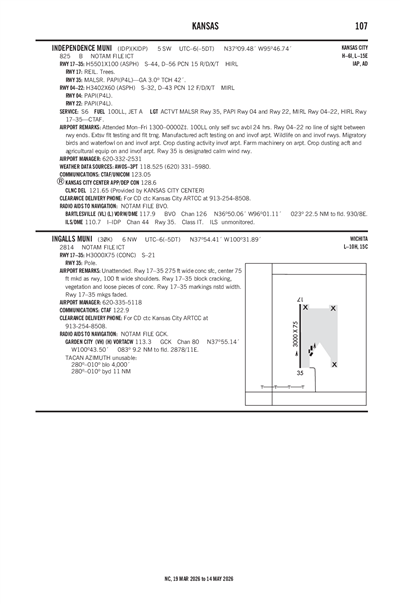

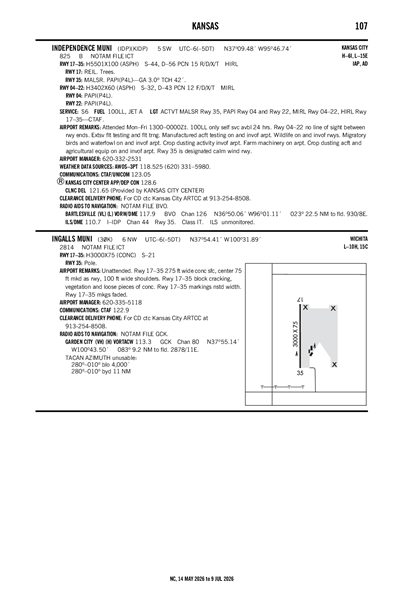

INGALLS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

30K
Local 30K
INGALLS MUNI
PublicPUB

6 miles NW of INGALLS, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 54' 25"N 100° 31' 53"W
Elevation
2814' MSL
Pattern Alt
3814' MSL
Mag Variation
5°E
Declination
9°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/14/26-6/11/26
KGCK (9nm) VFR
3:40 AM CDT
Light Rain and Mist
Overcast 8,000'
Scattered 2,600'
Few 900'
6sm
63°F
63°F
30.00"Hg
140° 11kts
AO2 LTG DSNT SE P0001 T01720172
SPECI KGCK 040840Z AUTO 14011KT 6SM -RA BR FEW009 SCT026 OVC080 17/17 A3000 RMK AO2 LTG DSNT SE P0001 T01720172
+ Add Your Business

30K FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KGCK (9nm)
Thu, 6/4 1:19 AM CDT
Thu, 6/4 1:00 AM CDT - Fri, 6/5 1:00 AM CDT
MVFR
1:00 AM CDT - 4:00 AM CDT
Light Rain and Mist
Overcast 10,000'
Scattered 4,500'
Few 2,400'
4sm
130° 5kts
MVFR
4:00 AM CDT - 7:00 AM CDT
Light Showers and Rain and Mist
Overcast 1,000'
5sm
170° 9kts
MVFR
7:00 AM CDT - 10:00 AM CDT
Showers in vicinity
Overcast 1,000'
6sm
180° 9kts
VFR
10:00 AM CDT - 1:00 PM CDT
Broken 5,000'
6sm
190° 13kts
Gusts 23kts
VFR
1:00 PM CDT - 1:00 AM CDT
Scattered 5,000'
6sm
190° 13kts
Gusts 23kts
TAF KGCK 040619Z 0406/0506 13005KT 4SM -RA BR FEW024 SCT045 OVC100
   FM040900 17009KT 5SM -SHRA BR OVC010
   FM041200 18009KT P6SM VCSH OVC010
   FM041500 19013G23KT P6SM BKN050
   FM041800 19013G23KT P6SM SCT050
30K
EffectiveExpiresCategoryNOTAM
Domestic
6/2/26
0953Z
6/17/26
0853Z
!ICT 06/048 30K OBST TOWER LGT (ASR 1035470) 375226.00N1003325.50W (2.3NM SSW 30K) 3269.7FT (440.0FT AGL) U/S 2606020953-2606170853
No
UNATNDD
CITY OF INGALLS
204 S. MAIN ST. BOX 103
INGALLS, KS 67853
Phone: 620-335-5118
LEONARD RODENDER
204 S. MAIN ST. BOX 103
INGALLS, KS 67853
Phone: 620-335-5118
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 17/35

3000 ft. x 75 ft.
CONC
Poor
NONE


21,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 37° 54' 40"N 37° 54' 10"N
Longitude 100° 31' 53"W 100° 31' 53"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NO PUBLIC PHONE AVBL.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A32-17/35275 FT WIDE CONC SFC, CENTER 75 FT MKD AS RWY, 100 FT WIDE SHOULDERS.
A33-17/35_SURFBLOCK CRACKING, VEGETATION & LOOSE PIECES OF CONC.
A42-17_CONDMKGS FADED.
A42-17_MARKMARKINGS NSTD WIDTH.
A42-35_CONDMKGS FADED.
A42-35_MARKMARKINGS NSTD WIDTH.
E111CONST PRIOR TO 1959.
INGALLS MUNI (IATA: 30K) is a public airport located in INGALLS, KS, US.
