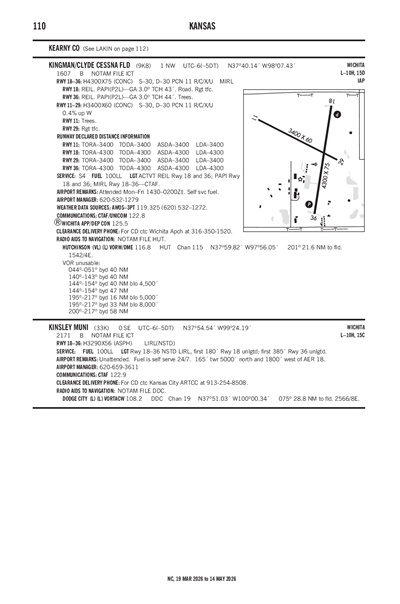

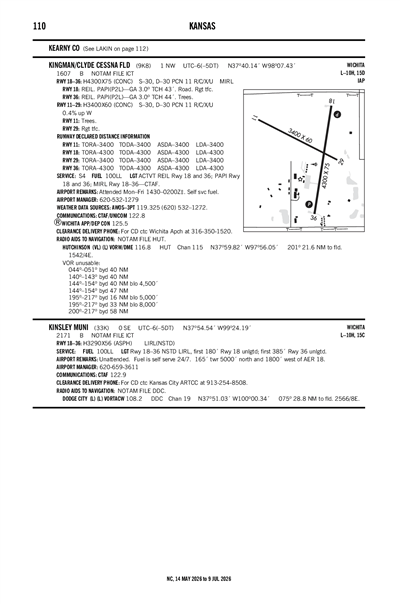

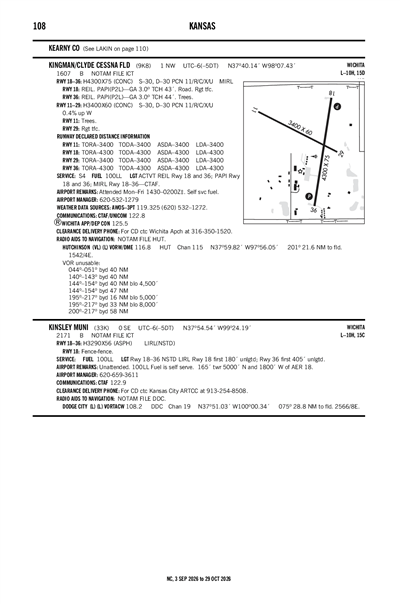

KINSLEY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

33K
Local 33K
KINSLEY MUNI
PublicPUB

0 miles SE of KINSLEY, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 54' 32"N 99° 24' 11"W
Elevation
2171' MSL
Pattern Alt
3171' MSL
Mag Variation
4°E
Declination
8°E
Fuel
100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/14/26-6/11/26
KLQR (23nm) LIFR
2:15 AM CDT
Thunderstorm and Rain and Mist in vicinity
Overcast 400'
4sm
64°F
64°F
30.06"Hg
050° 10kts
AO2 LTG DSNT SW-NW
METAR KLQR 040715Z AUTO 05010KT 4SM VCTS RA BR OVC004 18/18 A3006 RMK AO2 LTG DSNT SW-NW
+ Add Your Business

33K FBOs

Promote Listing
Tyree Ag
Phone: (620) 659-2208
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.40
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KDDC (28nm)
Thu, 6/4 1:19 AM CDT
Thu, 6/4 1:00 AM CDT - Fri, 6/5 1:00 AM CDT
VFR
1:00 AM CDT - 4:00 AM CDT
Broken 10,000'
6sm
120° 9kts
MVFR
4:00 AM CDT - 10:00 AM CDT
Light Showers and Rain and Mist
Overcast 1,000'
4sm
160° 10kts
VFR
10:00 AM CDT - 1:00 PM CDT
Broken 5,000'
6sm
180° 15kts
Gusts 25kts
VFR
1:00 PM CDT - 1:00 AM CDT
Scattered 20,000'
Scattered 9,000'
6sm
180° 17kts
Gusts 27kts
TAF KDDC 040619Z 0406/0506 12009KT P6SM BKN100
   FM040900 16010KT 4SM -SHRA BR OVC010
   FM041500 18015G25KT P6SM BKN050
   FM041800 18017G27KT P6SM SCT090 SCT200
33K
EffectiveExpiresCategoryNOTAM
Domestic
6/2/26
2128Z
8/1/26
2120Z
!ICT 06/077 33K OBST TOWER LGT (ASN 2018-ACE-1894-OE) 375655N0990655W (13.9NM E 33K) 2444FT (350FT AGL) U/S 2606022128-2608012120
No
UNATNDD
CITY OF KINSLEY
PO BOX 7
KINSLEY, KS 67547
Phone: 620-659-3611
JAY DILL
PO BOX 7
KINSLEY, KS 67547
Phone: 620-659-3611
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 18/36

3290 ft. x 56 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 18 Runway 36
True Heading 187°7°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 54' 49"N 37° 54' 16"N
Longitude 99° 24' 09"W 99° 24' 14"W
Elevation 2,168' 2,171'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2165' TWR 5000' N AND 1800' W OF AER 18.
A110-3FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A14AFTER HOURS OR EMERGENCY CALL 620-388-0266
A40-18/36NSTD LIRL; FIRST 180 FT RY 18 UNLGTD; FIRST 385 FT RY 36 UNLGTD .
A57-18CONTROLLING OBSTN EXCEEDS A 45 DEG SLP.
A58-18+4FT FENCE 2 FT FROM AER 18, 70 FT L OF CL.
A70-100LLFUEL IS SELF SERVE 24/7
KINSLEY MUNI (IATA: 33K) is a public airport located in KINSLEY, KS, US.
