WALDEN-JACKSON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

33V
Local 33V
WALDEN-JACKSON COUNTY
PublicPUB

1 miles NE of WALDEN, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 45' 01"N 106° 16' 17"W
Elevation
8154' MSL
Pattern Alt
9154' MSL
Mag Variation
9°E
Declination
10°E
Fuel
None Listed
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
9/3/26-10/1/26
K33V VFR
6:55 AM MDT
Clear
10sm
32°F
32°F
30.40"Hg
090° 3kts
AO1
METAR K33V 271255Z AUTO 09003KT 10SM CLR 00/00 A3040 RMK AO1
+ Add Your Business

33V FBOs

Promote Listing
North Park Aviation
Phone: (970) 846-6971
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.625
(970) 723-4513

Common

CTAF 122.9
ACTVT PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.

Center

DENVER CENTER 126.5
LOW/HIGH, APCH/DEP SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 126.5/371.85 (WALTON PEAK RCAG).

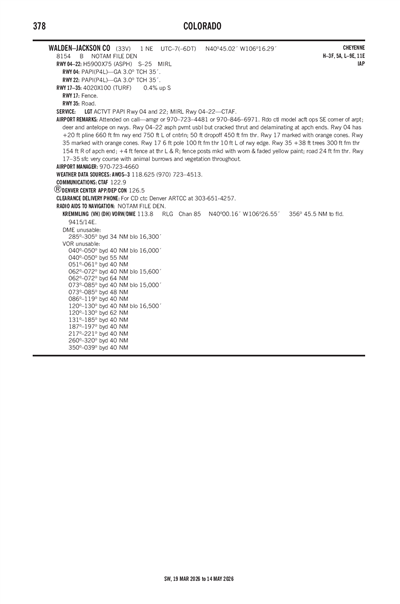

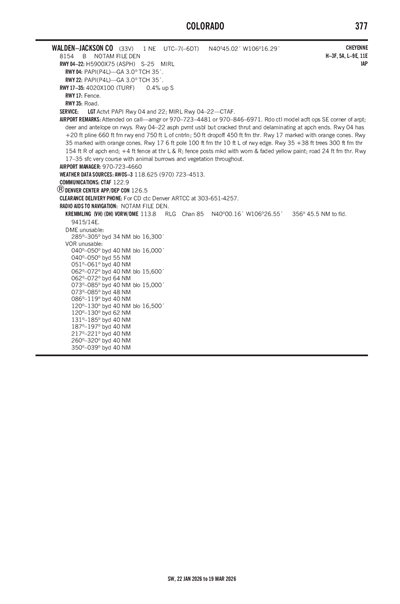

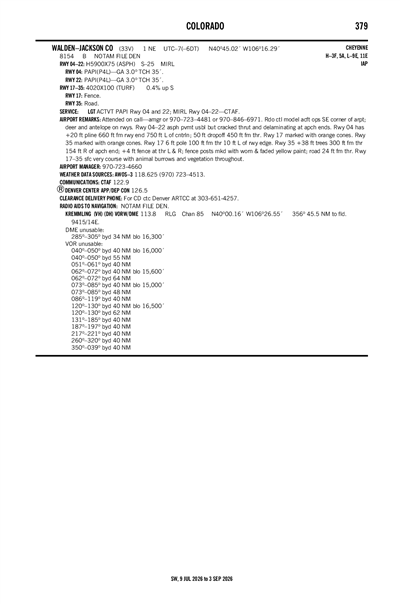

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KLAR (44nm)
Sun, 9/27 5:25 AM MDT
Sun, 9/27 6:00 AM MDT - Mon, 9/28 6:00 AM MDT
VFR
6:00 AM MDT - 2:00 PM MDT
Scattered 8,000'
6sm
VRB° 6kts
VFR
2:00 PM MDT - 6:00 PM MDT
Showers in vicinity
Broken 11,000'
Scattered 8,000'
6sm
140° 12kts
Gusts 20kts
VFR
6:00 PM MDT - 6:00 AM MDT
Overcast 8,000'
6sm
160° 10kts
TAF KLAR 271125Z 2712/2812 VRB06KT P6SM SCT080
   FM272000 14012G20KT P6SM VCSH SCT080 BKN110
   FM280000 16010KT P6SM OVC080
33V
No NOTAM Available
No
ON CALL
AMGR OR 970-723-4481 OR 970-846-6971.
JACKSON COUNTY
CO COURTHOUSE PO BOX 1019
WALDEN, CO 80480
Phone: 970-723-4660
SAMANTHA MARTIN
P. O. BOX 1019
WALDEN, CO 80480
Phone: 970-723-4660
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

5900 ft. x 75 ft.
ASPH
Excellent
NONE
MED

25,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 44' 40"N 40° 45' 21"N
Longitude 106° 16' 45"W 106° 15' 50"W
Elevation 8,153' 8,150'
Threshold Crossing Height 35 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4020 ft. x 100 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 45' 23"N 40° 44' 43"N
Longitude 106° 16' 16"W 106° 16' 17"W
Elevation 8,139' 8,154'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RDO CTL MODEL ACFT OPS SE CORNER OF ARPT; DEER & ANTELOPE ON RWYS.
A110-9FOR CD CTC DENVER ARTCC AT 303-651-4257.
A17-M1AMGR OR 970-723-4481 OR 970-846-6971.
A30A-04+20 FT PLINE 660 FT FM RWY END 750 FT L OF CNTRLN; 50 FT DROPOFF 450 FT FM THR.
A30A-176 FT POLE 100 FT FM THR 10 FT L OF RWY EDGE.
A30A-35+38 FT TREES 300 FT FM THR 154 FT R OF APCH END; +4 FT FENCE AT THR L & R; FENCE POSTS MKD WITH WORN & FADED YELLOW PAINT; ROAD 24 FT FM THR.
A33-04/22_CONDRWY 4-22 ASPH PVMT USBL BUT CRACKED THRUT AND DELAMINATING AT APCH ENDS.
A33-17/35_CONDRY 17-35 SFC VERY COURSE WITH ANIMAL BURROWS AND VEGITATION THROUGHOUT.
A42-17_MARKORANGE CONES.
A42-35_MARKORANGE CONES.
A53-17FENCE POSTS MKD WITH YELLOW PAINT; WORN & FADED.
A58-22+4 FT BRUSH 10 FT FM THR.
A81-APTACTVT PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
A84MKD WITH YELLOW & BLACK TIRES.
WALDEN-JACKSON COUNTY (IATA: 33V) is a public airport located in WALDEN, CO, US.
