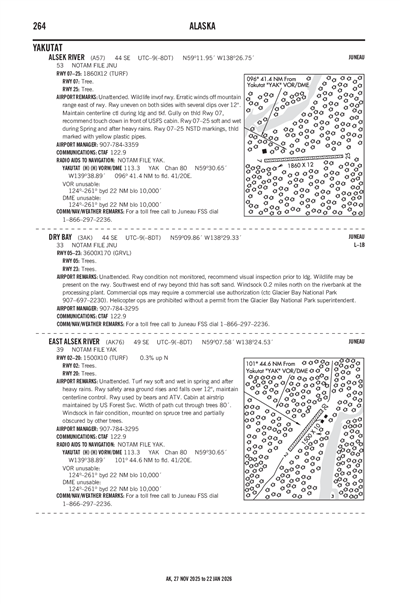

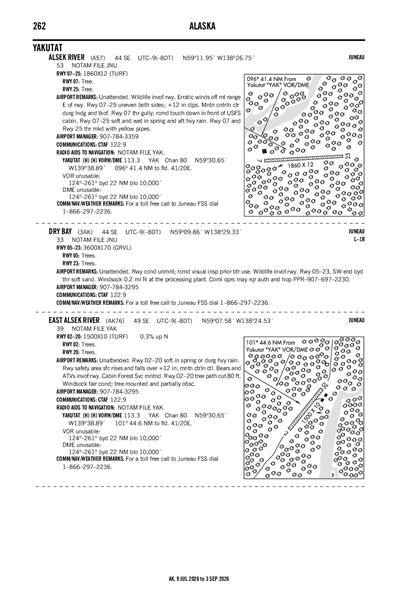

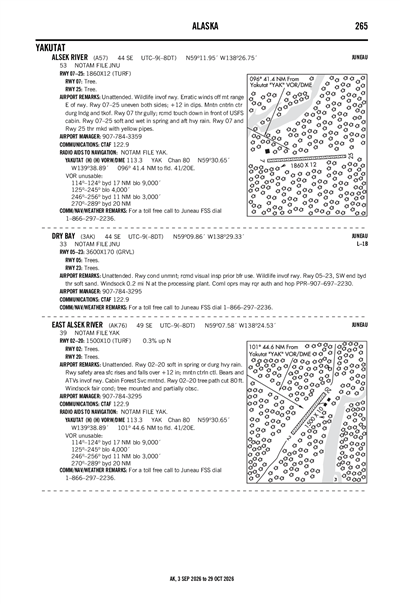

DRY BAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3AK
DRY BAY
PublicPUB

44 miles SE of YAKUTAT, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 09' 52"N 138° 29' 20"W
33' MSL
1033' MSL
None Listed
JUNEAU (JNU)
JUNEAU
ANCHORAGE (ZAN)
11/27/25-12/25/25
PAYA (42nm) IFR
9:26 PM AKST
Mist
Overcast 1,500'
Broken 700'
Scattered 400'
1sm
41°F
41°F
29.89"Hg
Calm
AO2 T00500050 TSNO RVRNO $
SPECI PAYA 050626Z AUTO 00000KT 1SM BR SCT004 BKN007 OVC015 05/05 A2989 RMK AO2 T00500050 TSNO RVRNO $
+ Add Your Business

3AK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAYA (42nm)
Thu, 12/4 8:42 PM AKST
Thu, 12/4 9:00 PM AKST - Fri, 12/5 9:00 PM AKST
LIFR
Temporary 9:00 PM AKST - 1:00 AM AKST
Fog
Overcast 1,000'
Broken 400'
0.5sm
Calm
IFR
9:00 PM AKST - 1:00 AM AKST
Light Showers and Rain and Mist
Overcast 900'
Scattered 400'
1sm
080° 5kts
IFR
1:00 AM AKST - 9:00 AM AKST
Mist
Overcast 500'
3sm
070° 5kts
MVFR
9:00 AM AKST - 3:00 PM AKST
Light Rain and Mist
Overcast 1,500'
Scattered 500'
3sm
Calm
IFR
3:00 PM AKST - 9:00 PM AKST
Light Rain and Mist
Overcast 1,000'
Broken 600'
2sm
110° 5kts
TAF PAYA 050542Z 0506/0606 08005KT 1SM -SHRA BR SCT004 OVC009
   TEMPO 0506/0510 1/2SM FG BKN004 OVC010
   FM051000 07005KT 3SM BR OVC005
   FM051800 00000KT 3SM -RA BR SCT005 OVC015
   FM060000 11005KT 2SM -RA BR BKN006 OVC010 AMD LTD TO CLD VIS AND WIND
3AK
No NOTAM Available
No
UNATTNDD
GLACIER BAY NATIONAL PARK
P.O. BOX 137
YAKUTAT, AK 99689
Phone: 907-784-3295
DRY BAY DISTRICT RANGER
P.O. BOX 137
YAKUTAT, AK 99689
Phone: 907-784-3295
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
JNU
--
--
N/A
Yes
N/A
No
None
No
None
None
None
None
None

Runway 05/23

3600 ft. x 170 ft.
GRAVEL
Fair
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HELICOPTER OPERS ARE PROHIBITED WITHOUT A PERMIT FROM THE GLACIER BAY NATIONAL PARK SUPERINTENDENT.
A110-2WILDLIFE MAY BE PRESENT ON THE RY.
A110-3COMMERCIAL OPERS MAY REQUIRE A COMMERCIAL USE AUTHORIZATION (CTC GLACIER BAY NATIONAL PARK 907-697-2230).
A110-4SW END OF RY BEYOND THLD HAS SOFT SAND.
A110-6RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO USING.
DRY BAY (IATA: 3AK) is a public airport located in YAKUTAT, AK.
