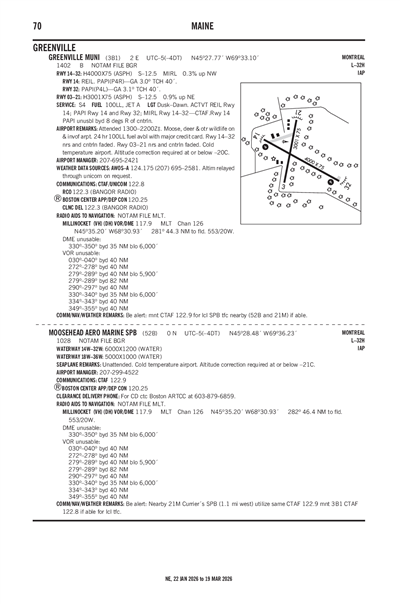

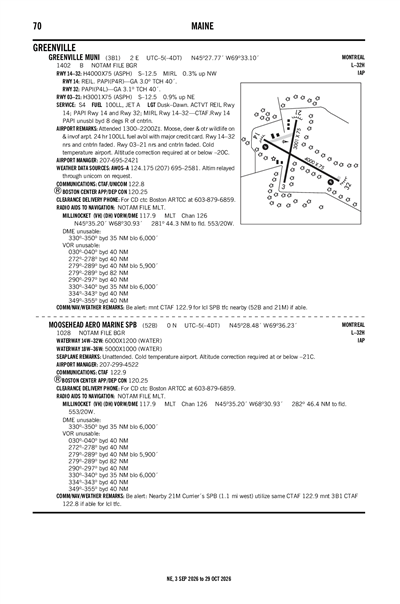

GREENVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3B1
Local 3B1
GREENVILLE MUNI
PublicPUB

2 miles E of GREENVILLE, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 27' 46"N 69° 33' 06"W
Elevation
1402' MSL
Pattern Alt
2402' MSL
Mag Variation
15°W
Declination
18°W
Fuel
JET A, 100LL
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
10/1/26-10/29/26
KGNR VFR
11:56 AM EDT
No Clouds
N/A
40°F
23°F
29.96"Hg
300° 11kts
Gusts 25kts
AO1 SLP158 T00441050
METAR KGNR 171556Z AUTO 30011G25KT 250V320 04/M05 A2996 RMK AO1 SLP158 T00441050
+ Add Your Business

3B1 FBOs

Promote Listing
Fletcher Mountain Aviation
UNICOM: 122.8
Phone: (207) 695-0300
Other: (207) 299-8220
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Greenville Municipal Airport
UNICOM: 122.8
Phone: (207) 944-3088
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.80 6.05
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-A 124.175
(207) 695-2581, COORDS & ELEV FM 3RD PARTY 28 JUN 2013.; ALTIM RELAYED THROUGH UNICOM ON REQUEST.

Common

CTAF 122.8
DUSK-DAWN. ACTVT REIL RWY 14; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.; BE ALERT: MNT CTAF 122.9 FOR LCL SPB TFC NEARBY (52B & 21M) IF ABLE.
UNICOM 122.8

Center

BOSTON CENTER 120.25
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 120.25/346.4 (BANGOR RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBGR (51nm)
Sat, 10/17 7:33 AM EDT
Sat, 10/17 8:00 AM EDT - Sun, 10/18 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Broken 15,000'
6sm
310° 12kts
Gusts 22kts
VFR
11:00 AM EDT - 5:00 PM EDT
Scattered 5,000'
6sm
320° 15kts
Gusts 25kts
VFR
5:00 PM EDT - 8:00 PM EDT
Scattered 25,000'
6sm
320° 12kts
VFR
8:00 PM EDT - 8:00 AM EDT
Scattered 25,000'
6sm
250° 6kts
TAF KBGR 171133Z 1712/1812 31012G22KT P6SM BKN150
   FM171500 32015G25KT P6SM SCT050
   FM172100 32012KT P6SM SCT250
   FM180000 25006KT P6SM SCT250
3B1
EffectiveExpiresCategoryNOTAM
FDC
12/15/25
1623Z
!FDC 5/9229 3B1 IAP GREENVILLE MUNI, GREENVILLE, ME.
RNAV (GPS) RWY 32, ORIG-A...
MISSED APPROACH: CLIMB TO 2200 (2500 WHEN USING BGR ALTIMETER SETTING) THEN CLIMBING RIGHT TURN TO 5100 DIRECT WEIPY AND ON TRACK 313 TO WELUG AND HOLD, CONTINUE CLIMB-IN-HOLD TO 5100.
2512151623-2707271623EST
No
0800-1700
TOWN OF GREENVILLE
TOWN OFFICE BLDG
GREENVILLE, ME 04441
Phone: 207-695-2421
MICHAEL ROY
TOWN OFFICE BLDG
GREENVILLE, ME 04441
Phone: 207-695-2421
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
DUSK-DAWN. ACTVT REIL RWY 14; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Sales

Runway 03/21

3001 ft. x 75 ft.
ASPH
Excellent
NONE


12,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 9°189°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 45° 27' 33"N 45° 28' 02"N
Longitude 69° 33' 14"W 69° 33' 07"W
Elevation 1,374' 1,402'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 14/32

4000 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 117°297°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 45° 27' 54"N 45° 27' 36"N
Longitude 69° 33' 28"W 69° 32' 38"W
Elevation 1,384' 1,374'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3.1°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1MOOSE, DEER & OTR WILDLIFE ON & INVOF ARPT.
A110-2COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -20C.
A110-3BE ALERT: MNT CTAF 122.9 FOR LCL SPB TFC NEARBY (52B & 21M) IF ABLE.
A110-4FOR CD CTC BOSTON ARTCC AT 603-879-6859.
A14TOWN MGR.
A42-03_CONDNRS AND CNTRLN FADED.
A42-14_CONDNRS AND CNTRLN FADED.
A42-21_CONDNRS AND CNTRLN FADED.
A42-32_CONDNRS AND CNTRLN FADED.
A43-14PAPI UNUSBL BYD 8 DEGS R OF CNTRLN.
A70-100LL24 HR FUEL AVBL WITH MAJOR CREDIT CARD.
A75-TCALL 207-717-5155 FOR HNGR AVBL & FUEL.
A81-APTDUSK-DAWN. ACTVT REIL RWY 14; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
E111EXISTED PRIOR TO 1959.
GREENVILLE MUNI (IATA: 3B1) is a public airport located in GREENVILLE, ME, US.
