3D2
Local 3D2
EPHRAIM/GIBRALTAR
PublicPUB

1 miles SW of EPHRAIM, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 08' 08"N 87° 11' 17"W
Elevation
773' MSL
Pattern Alt
1773' MSL
Mag Variation
5°W
Declination
4°W
Fuel
100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
3/19/26-4/16/26
K3D2 LIFR
4:35 PM CDT
Overcast 200'
10sm
34°F
33°F
29.71"Hg
260° 6kts
AO2 T00120007
METAR K3D2 042135Z AUTO 26006KT 10SM OVC002 01/01 A2971 RMK AO2 T00120007
+ Add Your Business

3D2 FBOs

Promote Listing
Ephraim-Gibraltar Airport
UNICOM: 123.0
Phone: (920) 854-3312
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 3/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.62
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 124.175
(920) 854-5559

Common

CTAF 123.0
MIRL RWY 14/32 PRESET LOW SS-SR; INCR INTST AND ACTVT PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
UNICOM 123.0

Approach

GREEN BAY APPROACH 120.3

Departure

GREEN BAY DEPARTURE 120.3

Center

GREEN BAY CENTER 127.65
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQ 127.65 (ESCANABA RCAG) WHEN GREEN BAY APCH CTL CLSD.

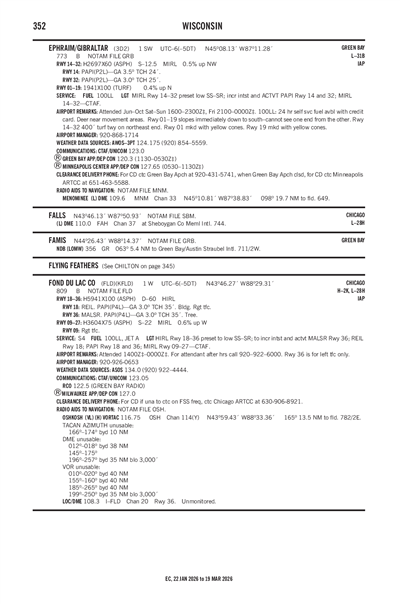

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGRB (56nm)
Sat, 4/4 3:26 PM CDT
Sat, 4/4 3:00 PM CDT - Sun, 4/5 1:00 PM CDT
MVFR
3:00 PM CDT - 6:00 PM CDT
Broken 1,500'
6sm
260° 11kts
Gusts 19kts
MVFR
6:00 PM CDT - 8:00 PM CDT
Broken 1,600'
6sm
260° 14kts
Gusts 23kts
MVFR
8:00 PM CDT - 1:00 AM CDT
Broken 2,200'
6sm
250° 14kts
Gusts 22kts
VFR
1:00 AM CDT - 1:00 PM CDT
Scattered 2,400'
6sm
280° 13kts
Gusts 21kts
TAF KGRB 042026Z 0420/0518 26011G19KT P6SM BKN015
   FM042300 26014G23KT P6SM BKN016
   FM050100 25014G22KT P6SM BKN022
   FM050600 28013G21KT P6SM SCT024
3D2
EffectiveExpiresCategoryNOTAM
Domestic
4/2/26
1642Z
7/31/26
1642Z
!GRB 04/066 3D2 OBST TOWER LGT (ASR 1218612) 452106.10N0872507.70W (16.3NM NW 3D2) 922.9FT (309.1FT AGL) U/S 2604021642-2607311642
3/27/26
2101Z
5/3/26
2059Z
!GRB 03/695 3D2 OBST TOWER LGT (ASN 2010-AGL-4999-OE) 450544N0873659W (10.34NM SE 3D2) 784FT (199FT AGL) U/S 2603272101-2605032059
3/11/26
0110Z
5/11/26
2359Z
!GRB 03/156 3D2 OBST TOWER LGT (ASR 1014912) 451416.30N0870528.60W (7.4NM NNE 3D2) 1276.9FT (499.0FT AGL) U/S 2603110110-2605112359
10/26/25
2117Z
5/21/26
0501Z
!GRB 10/341 3D2 AD AP NOT ATTENDED 2510262117-2605210501
No
JUN-OCT SAT-SUN 1000-1700
JUN-OCT FRI 1500-1800
VILLAGE OF EPHRAIM
PO BOX 850
FISH CREEK, WI 54212
Phone: 920-868-1714
TRAVIS THYSSEN
P O BOX 850
FISH CREEK, WI 54212
Phone: 920-868-1714
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
MIRL RWY 14/32 PRESET LOW SS-SR; INCR INTST AND ACTVT PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

1941 ft. x 100 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 8°188°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 45° 07' 58"N 45° 08' 17"N
Longitude 87° 11' 29"W 87° 11' 25"W
Elevation 755' 763'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

2697 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 08' 17"N 45° 07' 58"N
Longitude 87° 11' 22"W 87° 10' 56"W
Elevation 763' 751'
Threshold Crossing Height 24 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A11& TOWN OF GIBRALTAR.
A110-1DEER NR MOVEMENT AREAS.
A110-2FOR CD CTC GREEN BAY APCH AT 920-431-5741, WHEN GREEN BAY APCH CLSD, FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A16ARPT OFC PHONE NR 920-854-3312, AVBL JUN-OCT, FRI-SUN.
A33-01/19_SURFSLOPES MDTELY DOWN TO SOUTH--CANNOT SEE ONE END FM THE OTHER.
A42-01_MARKMKD WITH YELLOW CONES.
A42-19_MARKMKD WITH YELLOW CONES.
A70-100LL24 HR SELF SVC FUEL AVBL WITH CREDIT CARD.
A81-APTMIRL RWY 14/32 PRESET LOW SS-SR; INCR INTST AND ACTVT PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
EPHRAIM/GIBRALTAR (IATA: 3D2) is a public airport located in EPHRAIM, WI, US.
