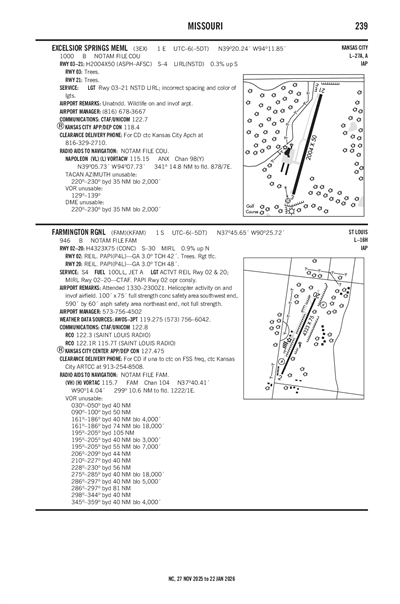

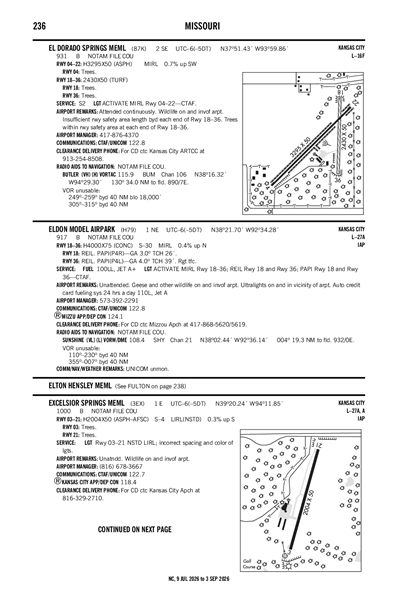

EXCELSIOR SPRINGS MEML - Airport Diagram

3EX

Local 3EX

EXCELSIOR SPRINGS MEML

PublicPUB

1 miles E of EXCELSIOR SPRINGS, MO, US

View on Map

Status

Operational

Coordinates

39° 20' 14"N 94° 11' 51"W

Elevation

1000' MSL

Pattern Alt

2000' MSL

Mag Variation

1°E

Declination

1°E

Fuel

None Listed

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

6/11/26-7/9/26

KGPH (5nm) VFR

5:35 PM CDT RAW

Light Rain

Scattered 5,000'
Scattered 4,400'

Viz

10sm

Temp

72°F

Dew

70°F

Pres

29.96"Hg

Wind

Calm

RMK

AO2

METAR KGPH 252235Z AUTO 00000KT 10SM -RA SCT044 SCT050 22/21 A2996 RMK AO2

Add Your Business

3EX FBOs

Promote Listing

Excelsior Springs Memorial Airport

UNICOM: 122.7

Phone: (816) 682-3764

0 Reviews (Read | Sign In To Write)

Your Information

Business

Common

CTAF	122.7
UNICOM	122.7

Approach

KANSAS CITY APPROACH

118.4

Departure

KANSAS CITY DEPARTURE

118.4

Terminal Area Forecast

KMKC (22nm)

RAW

Reported

Thu, 6/25 5:04 PM CDT

Valid

Thu, 6/25 5:00 PM CDT - Fri, 6/26 1:00 PM CDT

VFR

5:00 PM CDT - 7:00 PM CDT

Light Showers and Rain and Mist

Overcast 10,000'
Broken 4,000'

Viz

6sm

Wind

070° 8kts

MVFR

Temporary 5:00 PM CDT - 7:00 PM CDT

Thunderstorm and Rain and Mist

Broken 3,500'

Viz

5sm

Wind

VRB° 10kts

IFR

7:00 PM CDT - 10:00 PM CDT

Light Thunderstorm and Rain

Broken 1,000'

Viz

2sm

Wind

Calm

MVFR

7:00 PM CDT - 5:00 AM CDT

Light Showers and Rain

Overcast 1,500'
Scattered 900'

Viz

4sm

Wind

090° 9kts

IFR

5:00 AM CDT - 1:00 PM CDT

Light Showers and Rain

Overcast 900'

Viz

5sm

Wind

070° 7kts

TAF KMKC 252204Z 2522/2618 07008KT 6SM -SHRA BR BKN040 OVC100
   TEMPO 2522/2524 VRB10KT 5SM TSRA BR BKN035CB
   FM260000 09009KT 4SM -SHRA SCT009 OVC015
   PROB30 2600/2603 2SM -TSRA BKN010CB
   FM261000 07007KT 5SM -SHRA OVC009

3EX

Effective	Expires	NOTAM
Domestic
6/11/26 1657Z	7/11/26 1257Z	!COU 06/311 3EX OBST TOWER LGT (ASR 1296460) 391705.70N0941002.20W (3.4NM SSE 3EX) 1162.7FT (264.8FT AGL) U/S 2606111657-2607111257
5/24/26 1146Z	9/21/26 1146Z	!COU 05/485 3EX OBST TOWER LGT (ASR 1274010) 392402.40N0935942.00W (10.2NM ENE 3EX) 1182.7FT (259.8FT AGL) U/S 2605241146-2609211146

ATC Tower

Attendance

UNATNDD

Owner

CITY OF EXCELSIOR SPRINGS
201 E BROADWAY
EXCELSIOR SPRINGS, MO 64024
Phone: 816-630-0752

Manager

JERRY BEEBE, DON MYERS
1400 S. MARIETTA
EXCELSIOR SPRINGS, MO 64024
Phone: (816) 678-3667

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

COU

Light Schedule

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 03/21

Dimensions

2004 ft. x 50 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

AFSC

Rwy Edge Lgts

LOW

Pavement Class

Single Wheel

4,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	16°	196°
Traffic Pattern	Left	Left
Markings	BSC	NPI
Markings Condition	GOOD	GOOD
Latitude	39° 20' 05"N	39° 20' 24"N
Longitude	94° 11' 54"W	94° 11' 47"W
Elevation	998'	992'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-2	WILDLIFE ON & INVOF ARPT.
A110-7	FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
A16	(816) 682-3764
A40-03/21	NSTD LIRL; INCOR SPACING AND COLOR OF LGTS.
A58-03	70 FT TREE 170 FT FM RWY END AND 160 FT LEFT; 40 FT TREE 10 FT FM RWY END AND 230 FT RIGHT.
A58-21	+1-10 FT ROAD 0-200 FT FM RWY END 120-160 FT R.
E111	EXISTED PRIOR TO 1959.

EXCELSIOR SPRINGS MEML (IATA: 3EX) is a public airport located in EXCELSIOR SPRINGS, MO, US.
