3F5
Local 3F5
FOREST HILL
PublicPUB

6 miles ESE of WESTPHALIA, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 54' 42"N 84° 40' 30"W
Elevation
772' MSL
Pattern Alt
1772' MSL
Mag Variation
6°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
5/14/26-6/11/26
KLAN (9nm) MVFR
11:53 PM EDT
Haze
Clear
4sm
62°F
49°F
30.21"Hg
Calm
AO2 SLP227 T01670094 $
METAR KLAN 040353Z 00000KT 4SM HZ CLR 17/09 A3021 RMK AO2 SLP227 T01670094 $
+ Add Your Business

3F5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

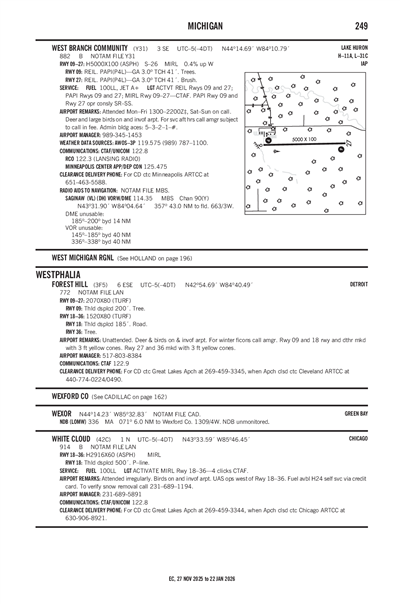

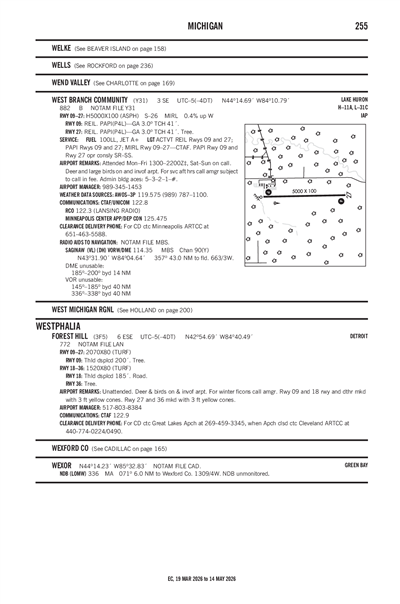

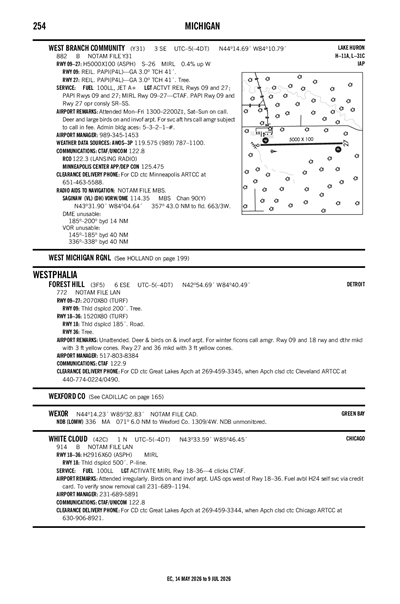

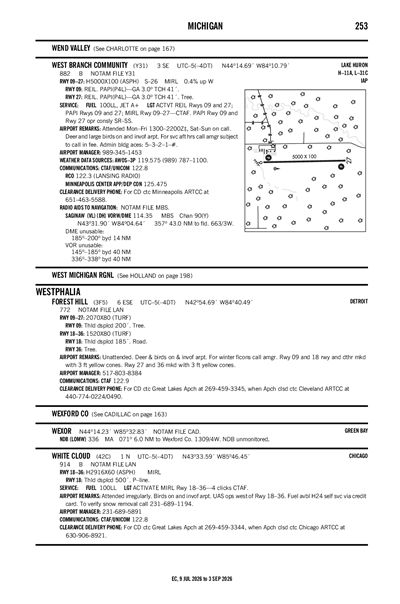

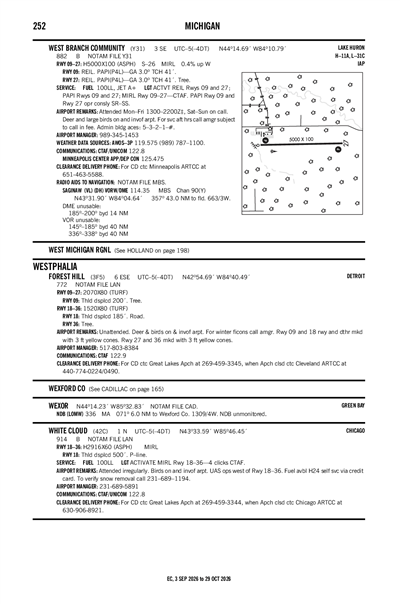

FAA A/FD Pages

Terminal Area Forecast

KLAN (9nm)
Wed, 6/3 7:40 PM EDT
Wed, 6/3 8:00 PM EDT - Thu, 6/4 8:00 PM EDT
VFR
8:00 PM EDT - 8:00 AM EDT
Broken 25,000'
6sm
VRB° 3kts
VFR
8:00 AM EDT - 2:00 PM EDT
Broken 25,000'
6sm
220° 7kts
VFR
2:00 PM EDT - 8:00 PM EDT
Scattered 25,000'
6sm
230° 10kts
Gusts 18kts
TAF KLAN 032340Z 0400/0424 VRB03KT P6SM BKN250
   FM041200 22007KT P6SM BKN250
   FM041800 23010G18KT P6SM SCT250
3F5
EffectiveExpiresCategoryNOTAM
Domestic
6/3/26
1929Z
10/1/26
1929Z
!LAN 06/055 3F5 OBST TOWER LGT (ASR 1021412) 425043.00N0844208.00W (4.2NM SSW 3F5) 1062.7FT (253.0FT AGL) U/S 2606031929-2610011929
No
UNATNDD
BEVERLY LYON
1436 IVES RD
MASON, MI 48854
Phone: 517-803-8384
BEVERLY LYON
1436 IVES RD
MASON, MI 48854
Phone: 517-803-8384
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 09/27

2070 ft. x 80 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 82°262°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 54' 37"N 42° 54' 40"N
Longitude 84° 40' 44"W 84° 40' 16"W
Elevation 769' 770'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

1520 ft. x 80 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 54' 53"N 42° 54' 38"N
Longitude 84° 40' 29"W 84° 40' 29"W
Elevation 770' 772'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3DEER & BIRDS ON & INVOF ARPT.
A110-5FOR WINTER FICONS CALL AMGR.
A110-6FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A42-09_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-18_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-27_MARK3 FT YELLOW CONES.
A42-36_MARK3 FT YELLOW CONES.
A57-09APCH RATIO 20:1 TO DTHR.
A57-18APCH RATIO 20:1 TO DTHR OVR +30 FT PLINE, 791 FT DIST, 125 FT L/R.
E111PRVDD OBST REMOVED/LWRD OR THR DSPLCD TO PRVD CLEAR 20:1 SLP; 125 FT EITHER SIDE OF CNTRLN & 200 FT EITHER END BE CLEAR.
FOREST HILL (IATA: 3F5) is a public airport located in WESTPHALIA, MI, US.
