iFlightPlanner



...

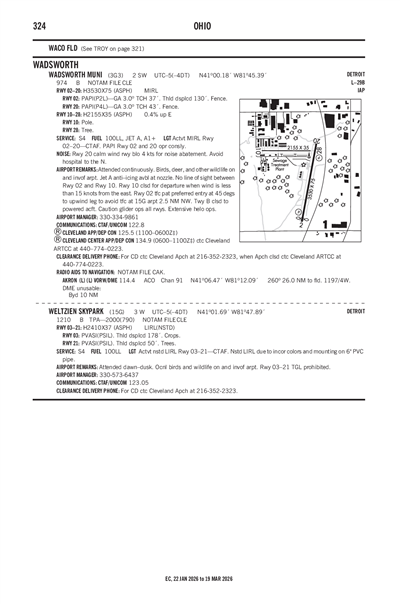

WADSWORTH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3G3
WADSWORTH MUNI
PublicPUB

2 miles SW of WADSWORTH, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 00' 11"N 81° 45' 23"W
974' MSL
1974' MSL
07W
Jet A-1+, 100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
4/18/24-5/16/24
KBJJ (10nm) VFR
9:56 PM EDT
Clear
10sm
58°F
48°F
29.99"Hg
140° 6kts
AO2 SLP156 T01440089
KBJJ 190156Z AUTO 14006KT 10SM CLR 14/09 A2999 RMK AO2 SLP156 T01440089
List Your Business

3G3 FBOs, Flight Schools and Ground Support

Promote Listing
Flight Services of Wadsworth
Freq: 122.8
Phone: (330) 334-9861
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/10
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.05 6.21 6.21
Full Serve

3G3 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

3G3 Hotels

No hotels are listed for this airport.

3G3 Restaurants

No restaurants are listed for this airport.

3G3 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KCAK (15nm)
Thu, 4/18 7:27 PM EDT
Thu, 4/18 8:00 PM EDT - Fri, 4/19 8:00 PM EDT
VFR
8:00 PM EDT - 4:00 AM EDT
Scattered 25,000'
6sm
VRB° 4kts
VFR
4:00 AM EDT - 6:00 AM EDT
Showers in vicinity
Broken 7,000'
6sm
160° 9kts
MVFR
6:00 AM EDT - 10:00 AM EDT
Light Showers and Rain
Overcast 3,500'
5sm
170° 10kts
MVFR
Temporary 6:00 AM EDT - 9:00 AM EDT
Light Thunderstorm and Rain
Overcast 2,500'
4sm
Calm
IFR
10:00 AM EDT - 1:00 PM EDT
Light Showers and Rain
Broken 900'
4sm
210° 9kts
IFR
1:00 PM EDT - 5:00 PM EDT
Broken 900'
6sm
300° 12kts
VFR
5:00 PM EDT - 8:00 PM EDT
Scattered 25,000'
6sm
310° 12kts
KCAK 182327Z 1900/1924 VRB04KT P6SM SCT250
   FM190800 16009KT P6SM VCSH BKN070
   FM191000 17010KT 5SM -SHRA OVC035
   TEMPO 1910/1913 4SM -TSRA OVC025CB
   FM191400 21009KT 4SM -SHRA BKN009
   FM191700 30012KT P6SM BKN009
   FM192100 31012KT P6SM SCT250
3G3
Domestic
2/16/241650Z !CLE 02/266 3G3 RWY 02 VASI U/S 2402161650-2408162111EST
FDC
6/7/221326Z !FDC 2/5209 3G3 ODP WADSWORTH MUNI, WADSWORTH, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF OBSTACLES NOTE: RWY 02, LIGHT POLES BEGINNING 1243 FT FROM DER, 37 FT LEFT OF CENTERLINE, UP TO 31 FT AGL/1011 FT MSL (2020-AGL-23359 AND 23361-OE). LIGHT POLES BEGINNING 1356 FT FROM DER, 55 FT LEFT OF CENTERLINE, UP TO 31 FT AGL/1013 FT MSL (2020-AGL-23360, 23364 AND 23366-OE). LIGHT POLE 1476 FT FROM DER, 54 FT LEFT OF CENTERLINE, 31 FT AGL/1014 FT MSL (2020-AGL-23363-OE). LIGHT POLE 1484 FT FROM DER, 74 FT RIGHT OF CENTERLINE, 31 FT AGL/1014 FT MSL (2020-AGL-23362-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2206071326-2406071323EST
No
ALL
CITY OF WADSWORTH ARPT COMMISSION
WADSWORTH MUNICIPAL BLDG, 120 MAPLE ST
WADSWORTH, OH 44281-1825
Phone: 330-335-1521
MARK MILLER
840 AIRPORT DR
WADSWORTH, OH 44281-9552
Phone: 330-334-9861
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT MIRL RWY 02/20 - CTAF. VASI RWY 02 & 20 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
84
6
0
1
0
0
Major
Major
None
None
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 02/20

3530 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 11°191°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 59' 49"N 41° 00' 23"N
Longitude 81° 45' 23"W 81° 45' 14"W
Elevation 965' 974'
Threshold Crossing Height 24 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator V2R V2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 10/28

2155 ft. x 35 ft.
ASPH
Excellent
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 00' 20"N 41° 00' 20"N
Longitude 81° 45' 46"W 81° 45' 18"W
Elevation 963' 971'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10CAUTION: EXTSV HEL OPS.
A110-11RWY 02 TFC PAT PREFERRED ENTRY AT 45 DEGS TO UPWIND LEG TO AVOID TFC AT 15G ARPT 2.5 NM NW.
A110-2RWY 10 CLSD FOR DEPARTURE WHEN WIND LESS THAN 15 KTS FM THE EAST.
A110-4NO LINE OF SIGHT BTN RWY'S 02 & 10.
A110-5RWY 20 CALM WIND RWY BLO 4 KTS FOR NOISE ABATEMENT. AVOID HOSPITAL TO THE N.
A110-6FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0223.
A110-7TWY B CLSD TO PWRD ACFT
A110-8BIRDS, DEER, & OTR WILDLIFE ON & INVOF ARPT.
A110-9CAUTION: GLIDER OPS ALL RWY'S
WADSWORTH MUNI (IATA: 3G3) is a public airport located in WADSWORTH, OH.
