» Sign In

3GV

Local 3GV

EAST KANSAS CITY

PublicPUB

GRAIN VALLEY, MO, US

View on Map

Status

Operational

Coordinates

39° 00' 53"N 94° 12' 53"W

Elevation

835' MSL

Pattern Alt

1835' MSL

Mag Variation

1°E

Declination

3°E

Fuel

100LL

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

2/19/26-3/19/26

KLXT (8nm) VFR

9:53 AM CDT RAW

Overcast 5,000'
Broken 4,400'
Broken 3,700'

Viz

10sm

Temp

64°F

Dew

52°F

Pres

29.32"Hg

Wind

250° 12kts

RMK

AO2 PK WND 24026/1421 SLP924 T01780111 53007 $

METAR KLXT 151453Z AUTO 25012KT 10SM BKN037 BKN044 OVC050 18/11 A2932 RMK AO2 PK WND 24026/1421 SLP924 T01780111 53007 $

Add Your Business

3GV FBOs

Promote Listing

Grain Valley Airport

UNICOM: 122.8

Phone: (816) 229-8868

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 2/20	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.87
Full Serve

Fuel Notes

Prices include tax
Assistance is available for self-serve 100LL.

3GV Aircraft Service & Maintenance

Promote Listing

Skypros Aviation

Phone: (816) 427-7000

0 Reviews (Read | Sign In To Write)

Your Information

Business

Common

CTAF	122.8
ACTVT REIL RWY 09; MIRL RWY 09/27 - CTAF.
UNICOM	122.8

Clearance

Clearance Delivery

121.3

Approach

KANSAS CITY APPROACH

118.4

Departure

KANSAS CITY DEPARTURE

118.4

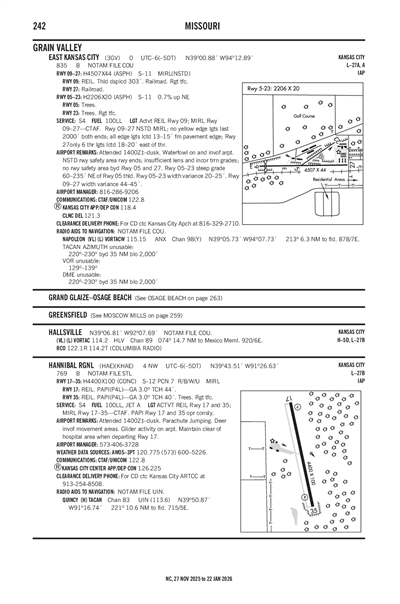

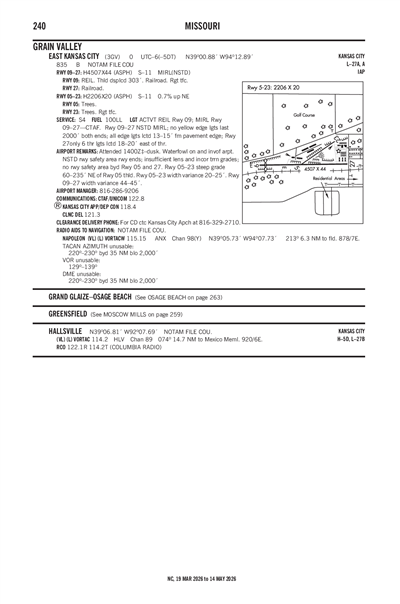

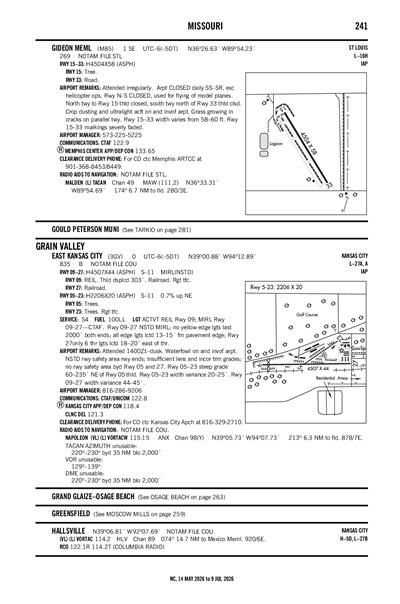

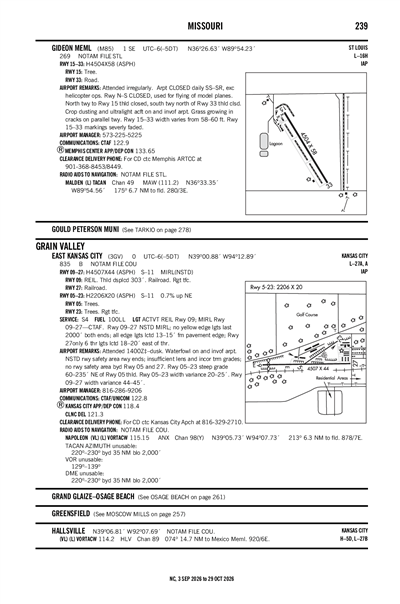

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

TAKEOFF MINIMUMS

Instrument Approach

Terminal Area Forecast

KMKC (19nm)

RAW

Reported

Sun, 3/15 9:18 AM CDT

Valid

Sun, 3/15 9:00 AM CDT - Mon, 3/16 7:00 AM CDT

VFR

9:00 AM CDT - 10:00 AM CDT

Broken 10,000'
Scattered 4,000'

Viz

6sm

Wind

250° 15kts

Gusts 28kts

MVFR

10:00 AM CDT - 5:00 PM CDT

Overcast 2,100'

Viz

6sm

Wind

310° 22kts

Gusts 40kts

MVFR

5:00 PM CDT - 9:00 PM CDT

Light Showers and Snow

Overcast 1,900'

Viz

4sm

Wind

320° 25kts

Gusts 45kts

VFR

9:00 PM CDT - 7:00 AM CDT

Broken 4,500'

Viz

6sm

Wind

320° 22kts

Gusts 40kts

TAF KMKC 151418Z 1514/1612 25015G28KT P6SM SCT040 BKN100
   FM151500 31022G40KT P6SM OVC021
   FM152200 32025G45KT 4SM -SHSN OVC019
   FM160200 32022G40KT P6SM BKN045

3GV

Effective	Expires	NOTAM
Domestic
3/4/26 1249Z	4/2/26 2359Z	!COU 03/070 3GV OBST TOWER LGT (ASR 1284590) 385654.10N0941538.00W (4.5NM SSW 3GV) 1242.8FT (274.9FT AGL) U/S 2603041249-2604022359
2/19/26 0804Z	4/5/26 0803Z	!COU 02/342 3GV OBST TOWER LGT (ASN 2025-ACE-2050-OE) 390506N0941224W (4.2NM NE 3GV) 1110FT (205FT AGL) U/S 2602190804-2604050803

ATC Tower

Attendance

0800-DUSK

Owner

GRAIN VALLEY AIRPORT CORP
BOX 255
GRAIN VALLEY, MO 64029
Phone: 816-229-8868

Manager

DAN WILLIAMS
BOX 255, 600 EE KIRBY RD
GRAIN VALLEY, MO 64029
Phone: 816-286-9206

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

COU

Light Schedule

Lights

ACTVT REIL RWY 09; MIRL RWY 09/27 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 05/23

Dimensions

2206 ft. x 20 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

11,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	57°	237°
Traffic Pattern		Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	39° 00' 51"N	39° 01' 02"N
Longitude	94° 12' 59"W	94° 12' 36"W
Elevation	818'	833'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

Dimensions

4507 ft. x 44 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

11,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	91°	271°
Traffic Pattern	Right
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	39° 00' 51"N	39° 00' 50"N
Longitude	94° 13' 25"W	94° 12' 28"W
Elevation	817'	818'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes

A110-2	WATERFOWL ON & INVOF ARPT.
A110-5	NTSD RWY SAFETY AREA ALL RWY ENDS; INSUFFICIENT LENS & INCOR TRRN GRADES; NO RWY SAFETY AREA BYD RWY 05 & 27.
A110-6	FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
A31-05/23	RWY 05/23 STEEP GRADE 60-235 FT NE OF RWY 05 THLD.
A32-05/23	WIDTH VARIANCE 20-25 FT.
A32-09/27	WIDTH VARIANCE 44-45 FT.
A40-09/27	NSTD MIRL; NO YELLOW EDGE LGTS LAST 2000 FT BOTH ENDS; ALL EDGE LGTS LCTD 13-15 FT FM PAVEMENT EDGE; RWY 27 ONLY 6 THR LGTS LCTD 18-20 FT E OF THR.
A57-09	0:1 TO DSPLCD THLD; +1-5 FT GND 0-90 FT FM RWY END 70-130 FT RIGHT.
A58-05	RR TRACK 0-200 FT FROM RWY, 80-230 FT RIGHT; TREES 20-35 FT, 0-200 FT FROM RWY, 130-250 FT RIGHT.
A58-09	RWY 09 1-20 FT GND 0-200 FT FM RWY END LEFT & RIGHT; +16 FT SIGNS 145 FT FM RWY END 80 FT LEFT; 10-25 FT ROAD 0-200 FT FM RWY END 125-160 FT LEFT; +1-50 FT TREES & RR 0-200 FT FM RWY END 200-250 FT RIGHT.
A58-23	HNGR BLDG 16-26 FT, 125-200 FT FM RWY END, 180-250 FT LEFT.
A58-27	+1-33 FT BRUSH; TREES; FENCE; RR; ROAD & BLDGS 0-200 FT FM RWY END LEFT & RIGHT.
A81-APT	ACTVT REIL RWY 09; MIRL RWY 09/27 - CTAF.
A83	WIND SOCK
E111	E111 PRVDD E/W RWY IS ABDND UPON ACTVTN OF NEW E/W (09/27) RWY; APCH TO EACH RWY IS MAINTD FOR A MIN 20:1 GS & TRSNL SFC MAINTD FOR A 7:1 SLOPE.

EAST KANSAS CITY (IATA: 3GV) is a public airport located in GRAIN VALLEY, MO, US.
