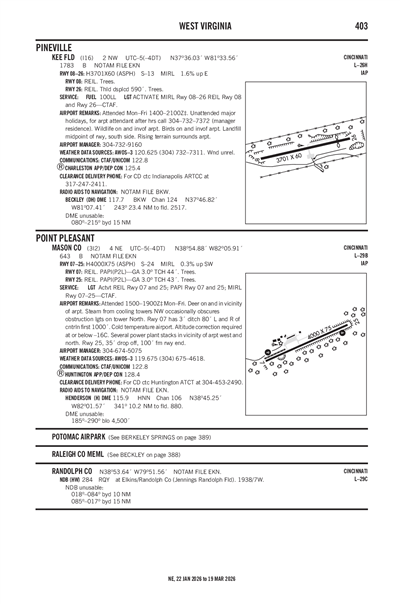

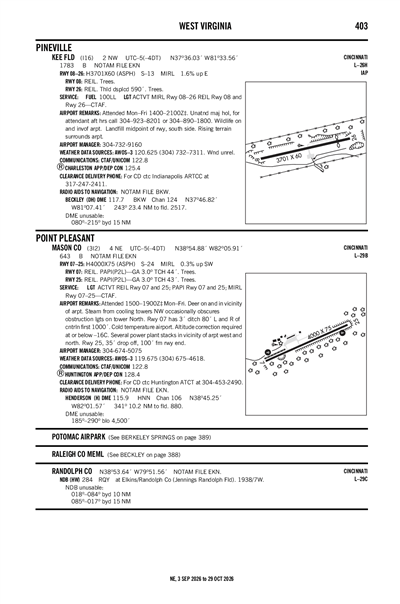

MASON COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3I2
Local 3I2
MASON COUNTY
PublicPUB

4 miles NE of POINT PLEASANT, WV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 54' 53"N 82° 05' 55"W
Elevation
643' MSL
Pattern Alt
1643' MSL
Mag Variation
8°W
Declination
7°W
Fuel
None Listed
FSS
ELKINS (EKN)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
8/6/26-9/3/26
KUNI (19nm) VFR
1:35 PM EDT
Few 30,000'
10sm
82°F
77°F
29.95"Hg
VRB° 5kts
AO2 T02780252
METAR KUNI 171735Z AUTO VRB05KT 10SM FEW300 28/25 A2995 RMK AO2 T02780252
+ Add Your Business

3I2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.675
(304) 675-4618

Common

CTAF 122.8
ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
UNICOM 122.8

Approach

HUNTINGTON APPROACH 128.4

Departure

HUNTINGTON DEPARTURE 128.4

FAA A/FD Pages

Terminal Area Forecast

KHTS (39nm)
Mon, 8/17 1:24 PM EDT
Mon, 8/17 2:00 PM EDT - Tue, 8/18 2:00 PM EDT
VFR
2:00 PM EDT - 4:00 PM EDT
Broken 3,500'
6sm
240° 5kts
VFR
4:00 PM EDT - 8:00 PM EDT
Thunderstorm in vicinity
Broken 3,500'
6sm
240° 6kts
MVFR
5:00 PM EDT - 7:00 PM EDT
Thunderstorm and Rain and Mist
Broken 2,500'
3sm
Calm
MVFR
8:00 PM EDT - 1:00 AM EDT
Broken 2,500'
6sm
Calm
MVFR
1:00 AM EDT - 3:00 AM EDT
Mist
Scattered 200'
3sm
Calm
LIFR
3:00 AM EDT - 8:00 AM EDT
Fog
Broken 200'
0.5sm
Calm
IFR
8:00 AM EDT - 12:00 PM EDT
Mist
Broken 500'
3sm
Calm
MVFR
12:00 PM EDT - 2:00 PM EDT
Broken 1,000'
6sm
330° 4kts
TAF KHTS 171724Z 1718/1818 24005KT P6SM BKN035
   FM172000 24006KT P6SM VCTS BKN035CB
   PROB30 1721/1723 3SM TSRA BR BKN025CB
   FM180000 00000KT P6SM BKN025
   FM180500 00000KT 3SM BR SCT002
   FM180700 00000KT 1/2SM FG BKN002
   FM181200 00000KT 3SM BR BKN005
   FM181600 33004KT P6SM BKN010
3I2
EffectiveExpiresCategoryNOTAM
Domestic
8/16/26
1015Z
12/14/26
1015Z
!EKN 08/160 3I2 OBST TOWER LGT (ASR 1249902) 390345.00N0820118.60W (9.6NM NNE 3I2) 1197.8FT (299.9FT AGL) U/S 2608161015-2612141015
8/11/26
0625Z
9/25/26
0625Z
!EKN 08/098 3I2 OBST TOWER LGT (ASR 1327981) 385231.80N0820443.90W (2.52NM SSE 3I2) 936FT (280FT AGL) U/S 2608110625-2609250625
8/11/26
0008Z
11/11/26
2359Z
!EKN 08/097 3I2 OBST TOWER LGT (ASR 1237021) 385734.90N0820950.50W (4.1NM NW 3I2) 1202.1FT (293.0FT AGL) U/S 2608110008-2611112359
3/11/26
1627Z
9/30/26
2359Z
!EKN 03/106 3I2 AD AP CLSD 2603111627-2609302359
No
MON-FRI 1000-1400
MASON CO COMISSION
COURT HOUSE 200 6TH ST,
POINT PLEASANT, WV 25550
Phone: 304-675-1110
TRENT AND PAIGE ROUSH
1518 AIRPORT RD
POINT PLEASANT, WV 25550
Phone: 304-674-5075
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

4000 ft. x 75 ft.
ASPH
Fair
NONE
MED

24,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 65°245°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 54' 44"N 38° 55' 01"N
Longitude 82° 06' 18"W 82° 05' 32"W
Elevation 639' 625'
Threshold Crossing Height 44 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF ARPT.
A110-10COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
A110-11FOR CD CTC HUNTINGTON ATCT AT 304-453-2490.
A110-12SEVERAL POWER PLANT STACKS IN VICINITY OF ARPT WEST & NORTH.
A110-13RWY 25, 35 FT DROP-OFF, 100 FT FM RWY END.
A110-4STEAM FROM COOLING TOWERS NW OCCASIONALLY OBSCURES OBSTN LGTS ON TOWER NORTH.
A110-6RWY 07 HAS 3 FT DITCH 80 FT L & R OF CNTRLN FIRST 1000 FT.
A110-96-8 FT BRUSH PARALLEL TO RWY 25, 95 FT FM CENTERLINE.
A56-07RWY 25 35 FT DROPOFF 100 FT FM THLD 0B.
A57-07CTLG OBSTN EXCEEDS A 45 DEG SLP.
A58-0730 FT TREES, 0-199 DSTC, 75 FT R.
A81-APTACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
E111NO OBJECTION.
MASON COUNTY (IATA: 3I2) is a public airport located in POINT PLEASANT, WV, US.
