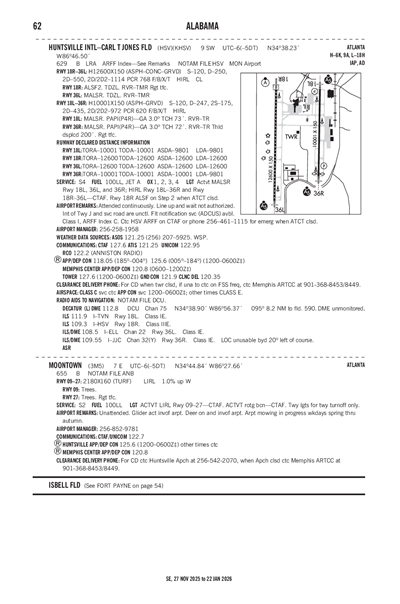

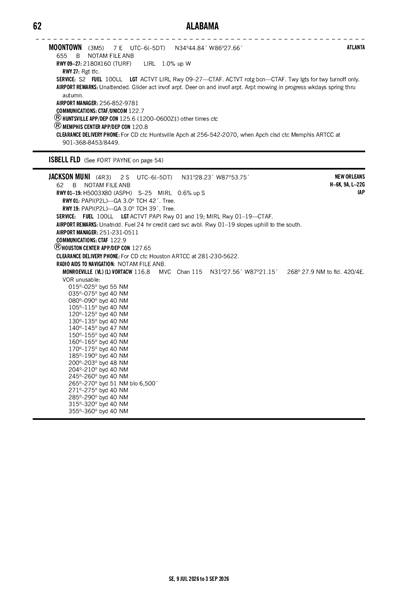

MOONTOWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3M5
Local 3M5
MOONTOWN
PublicPUB

7 miles E of HUNTSVILLE, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 44' 50"N 86° 27' 39"W
Elevation
655' MSL
Pattern Alt
1655' MSL
Mag Variation
4°W
Declination
1°W
Fuel
100LL
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
MEMPHIS (ZME)
Data Effective
9/3/26-10/1/26
KMDQ (9nm) VFR
10:35 PM CDT
Clear
10sm
78°F
70°F
29.92"Hg
Calm
A02 T02540210
METAR KMDQ 070335Z AUTO 10SM CLR 25/21 A2992 RMK A02 T02540210
+ Add Your Business

3M5 FBOs

Promote Listing
Moontown Airport
UNICOM: 122.7
Phone: (256) 852-9781
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.81
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
ACTVT ROTG BCN - CTAF.; ACTVT LIRL RWY 09/27 - CTAF.
UNICOM 122.7

Approach

HUNTSVILLE APPROACH 125.6

Departure

HUNTSVILLE DEPARTURE 125.6

Center

HUNTSVILLE CENTER 120.8
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 120.8/307.0 (HUNTSVILLE RCAG) WHEN HUNTSVILLE APCH CTL CLSD.

FAA A/FD Pages

Terminal Area Forecast

KHSV (17nm)
Sun, 9/6 6:20 PM CDT
Sun, 9/6 7:00 PM CDT - Mon, 9/7 7:00 PM CDT
VFR
7:00 PM CDT - 7:00 AM CDT
Few 6,000'
6sm
340° 5kts
VFR
7:00 AM CDT - 7:00 PM CDT
Few 25,000'
6sm
030° 6kts
TAF KHSV 062320Z 0700/0724 34005KT P6SM FEW060
   FM071200 03006KT P6SM FEW250
3M5
EffectiveExpiresCategoryNOTAM
Domestic
9/6/26
1036Z
10/21/26
1035Z
!ANB 09/162 3M5 OBST TOWER LGT (ASN 2025-ASO-6039-OE) 344547N0862537W (1.9NM ENE 3M5) 947FT (275FT AGL) U/S 2609061036-2610211035
9/2/26
1325Z
9/17/26
1225Z
!ANB 09/041 3M5 OBST TOWER LGT (ASR 1200482) 343649.90N0861615.50W (12.2NM SE 3M5) 929.8FT (319.9FT AGL) U/S 2609021325-2609171225
8/28/26
2026Z
9/28/26
2359Z
!ANB 08/843 3M5 OBST TOWER LGT (ASR 1204889) 344239.30N0863207.00W (4.3NM WSW 3M5) 2678.1FT (1525.9FT AGL) U/S 2608282026-2609282359
7/31/26
1205Z
10/29/26
1205Z
!ANB 07/868 3M5 OBST TOWER LGT (ASR 1035654) 343811.00N0863042.00W (7.1NM SSW 3M5) 2412.1FT (952.1FT AGL) U/S 2607311205-2610291205
No
UNATNDD
3M5 AIRPORT INC.
P.O. BOX 24
BROWNSBORO, AL 35741
Phone: 256-852-9781
TIMOTHY KNUEVEN
200 AIRPORT DRIVE
BROWNSBORO, AL 35741
Phone: 256-852-9781
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT LIRL RWY 09/27 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 09/27

2180 ft. x 160 ft.
TURF
Good
NONE
LOW

--
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 34° 44' 51"N 34° 44' 50"N
Longitude 86° 27' 53"W 86° 27' 26"W
Elevation 655' 634'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TWY LGTS FOR TWY TURNOFF ONLY.
A110-2FOR CD CTC HUNTSVILLE APCH AT 256-542-2070, WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-3GLIDER ACT INVOF ARPT.
A110-4ARPT MOWING IN PROGRESS WKDAYS SPRING THRU AUTUMN.
A110-5DEER ON AND INVOF OF ARPT
A81-APTACTVT LIRL RWY 09/27 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
MOONTOWN (IATA: 3M5) is a public airport located in HUNTSVILLE, AL, US.
